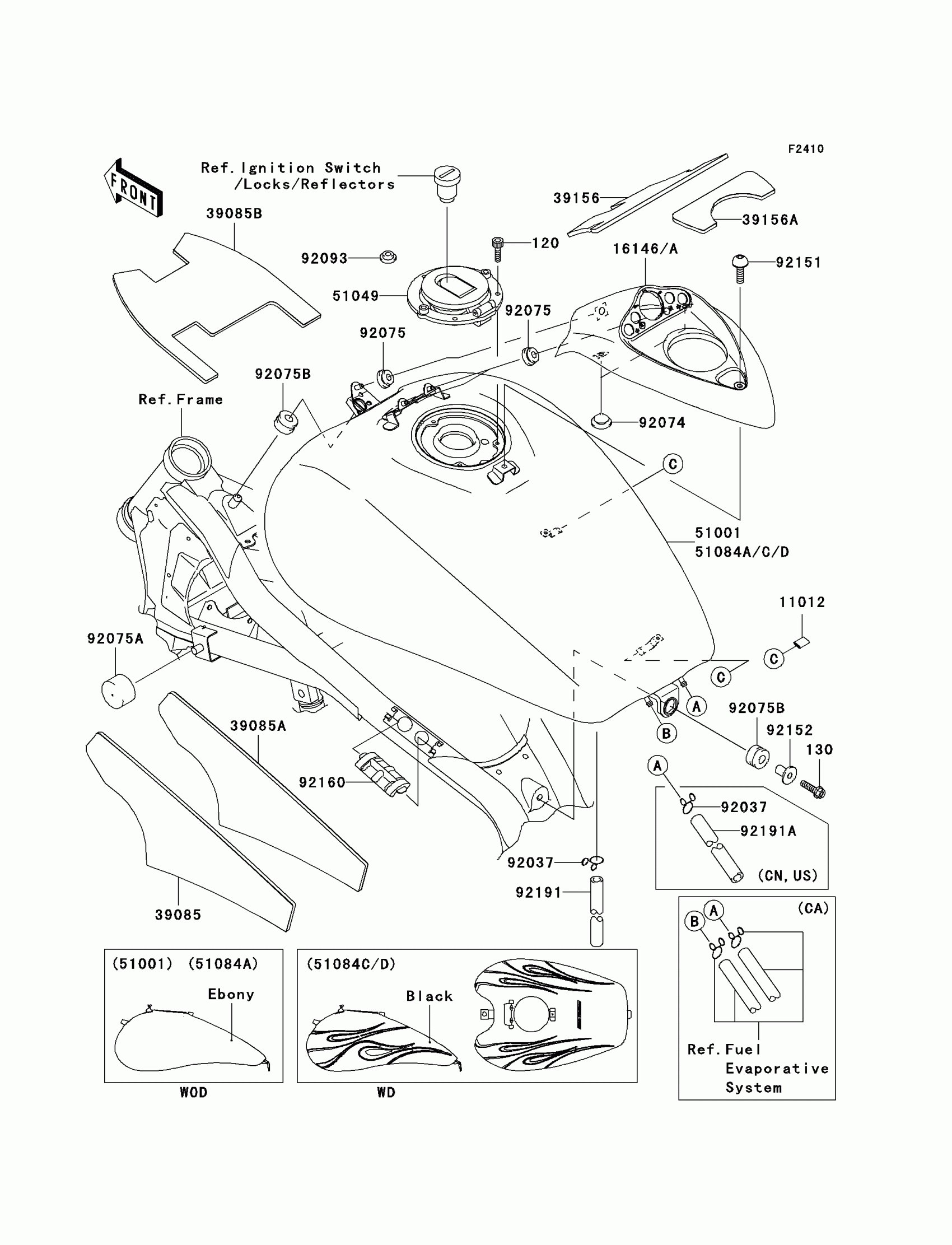

Kawasaki Vulcan 1600 Mean Streak Fuel Tank(5/5)(B6F/B7F/B7FA) Diagram

Description

Price

11012

CAP

11012-1725

$4.07

39085

PAD-TANK,FUEL TANK,LH

39085-1065

$62.49

39085A

PAD-TANK,FUEL TANK,RH

39085-1066

$71.26

39085B

PAD-TANK,FUEL TANK,CNT

39085-1067

$47.31

39156

PAD,FUEL TANK COVER,FR

39156-1700

$43.49

39156A

PAD,FUEL TANK COVER,RR

39156-1701

$35.24

51049

CAP-TANK,FUEL

51049-0009

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER

92075-1736

$4.93

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92152

COLLAR

92152-1393

$8.66

92160

DAMPER,FUEL TANK

92160-1751

$13.27

92191

TUBE,DRAIN

92191-1272

$23.59

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X30

130H0830

Unavailable

16146

COVER-ASSY,FUEL TANK

16146-0006

Unavailable

16146A

COVER-ASSY,FUEL TANK,EBONY

16146-0034-H8

$177.88

51001

TANK-COMP-FUEL,EBONY

51001-1682-H8

$1,227.73

51084A

TANK-COMP-FUEL,EBONY

51084-5132-H8

$905.22

51084C

TANK-COMP-FUEL,M.F.S.BLACK

51084-5243-739

$1,677.53

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92191A

TUBE,5X10X650

92191-1529

Unavailable
