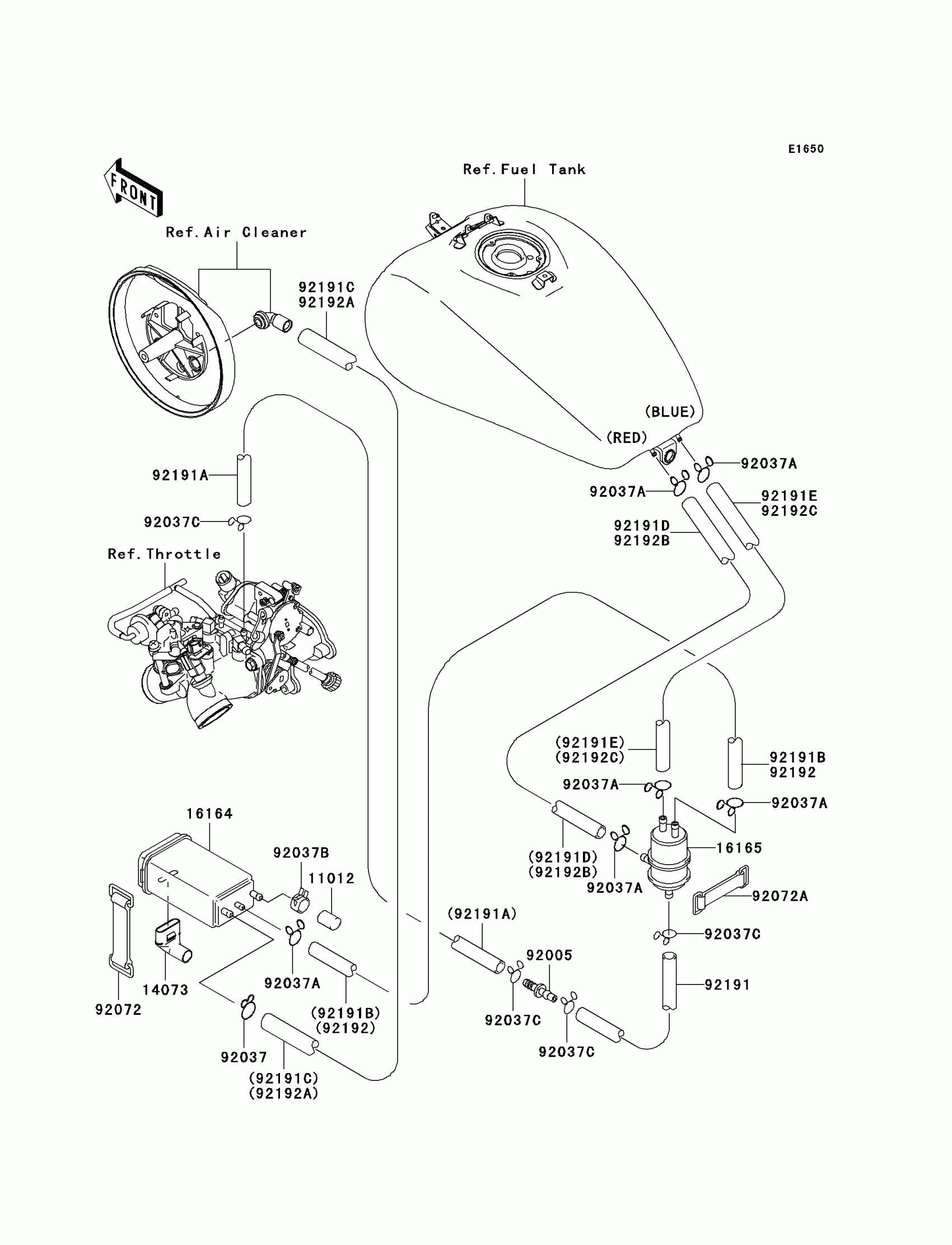

Kawasaki Vulcan® 1600 Mean Streak® Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1070

$145.42

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1206

$8.68

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND,L=90

92072-045

$14.90

92072A

BAND,L=50

92072-1419

$16.08

92191

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

$24.55

92191A

TUBE,4X9X180,WHITE

92191-1414

$5.54

92192

TUBE,SEPARATOR-CANISTER,BLUE

92192-0546

$43.53

92192A

TUBE,CANISTER-A/C,GREEN

92192-0550

$99.12

92192B

TUBE,TANK-SEPARATOR,RED

92192-0551

$37.21

92192C

TUBE,TANK-SEPARATOR,BLUE

92192-0552

$33.43
