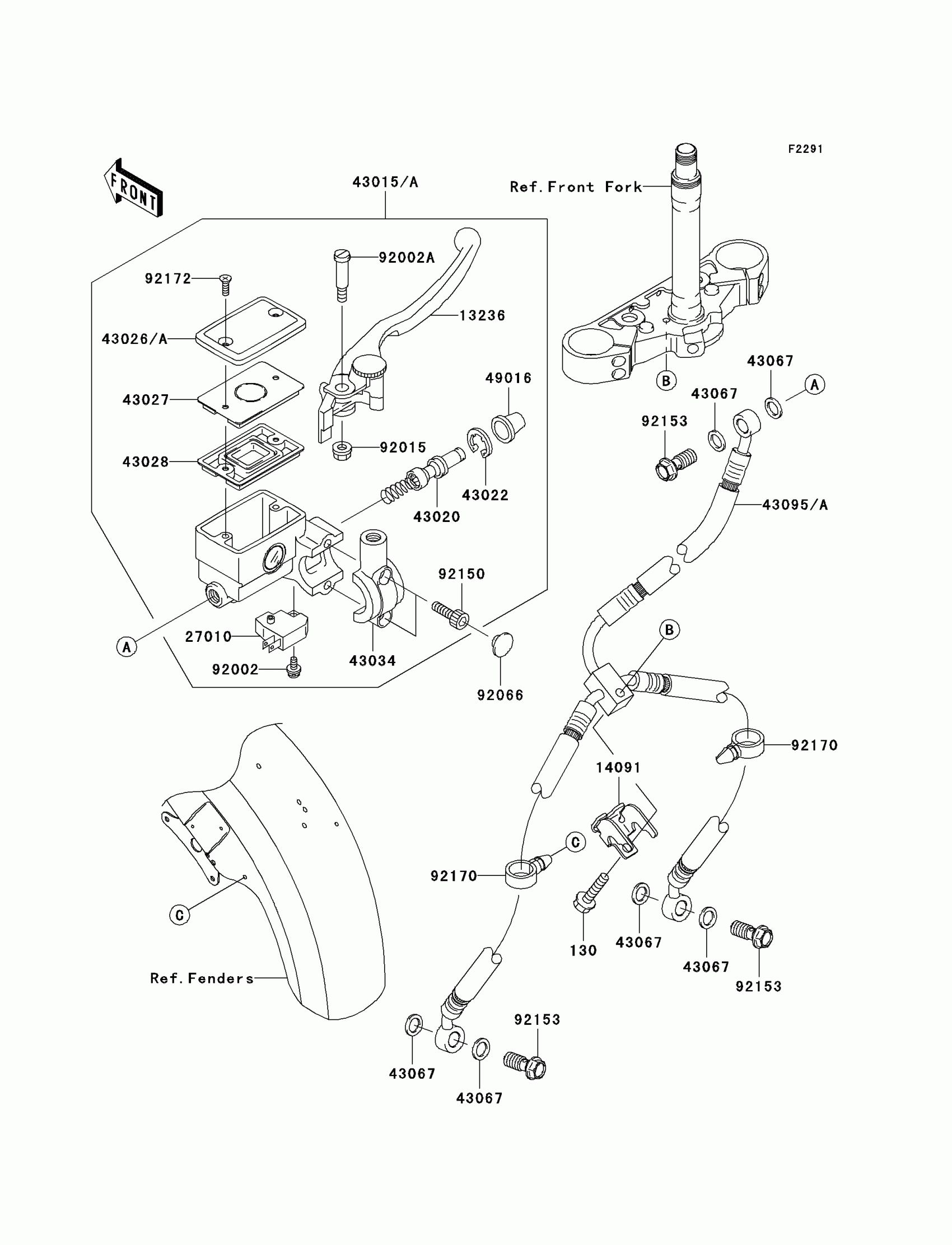

Kawasaki Vulcan® 1600 Mean Streak® Front Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

13236

LEVER-COMP,FRONT BRAKE

13236-1315

$50.06

14091

COVER,3 WAY JOINT

14091-1450

$9.31

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0025

$443.40

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0003

$73.10

43027

PLATE-DIAPHRAGM

43027-1059

$7.57

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE

43034-1172

$42.99

43095

HOSE-BRAKE,FR

43095-0198

$149.90

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1561

$11.71

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92066

PLUG

92066-1301

$6.11

92150

BOLT,SOCKET,6MM

92150-1025

$7.69

92153

BOLT,OIL,L=23

92153-0627

$5.48

92170

CLAMP

92170-1067

$7.45

92172

SCREW

92172-0083

$4.18
