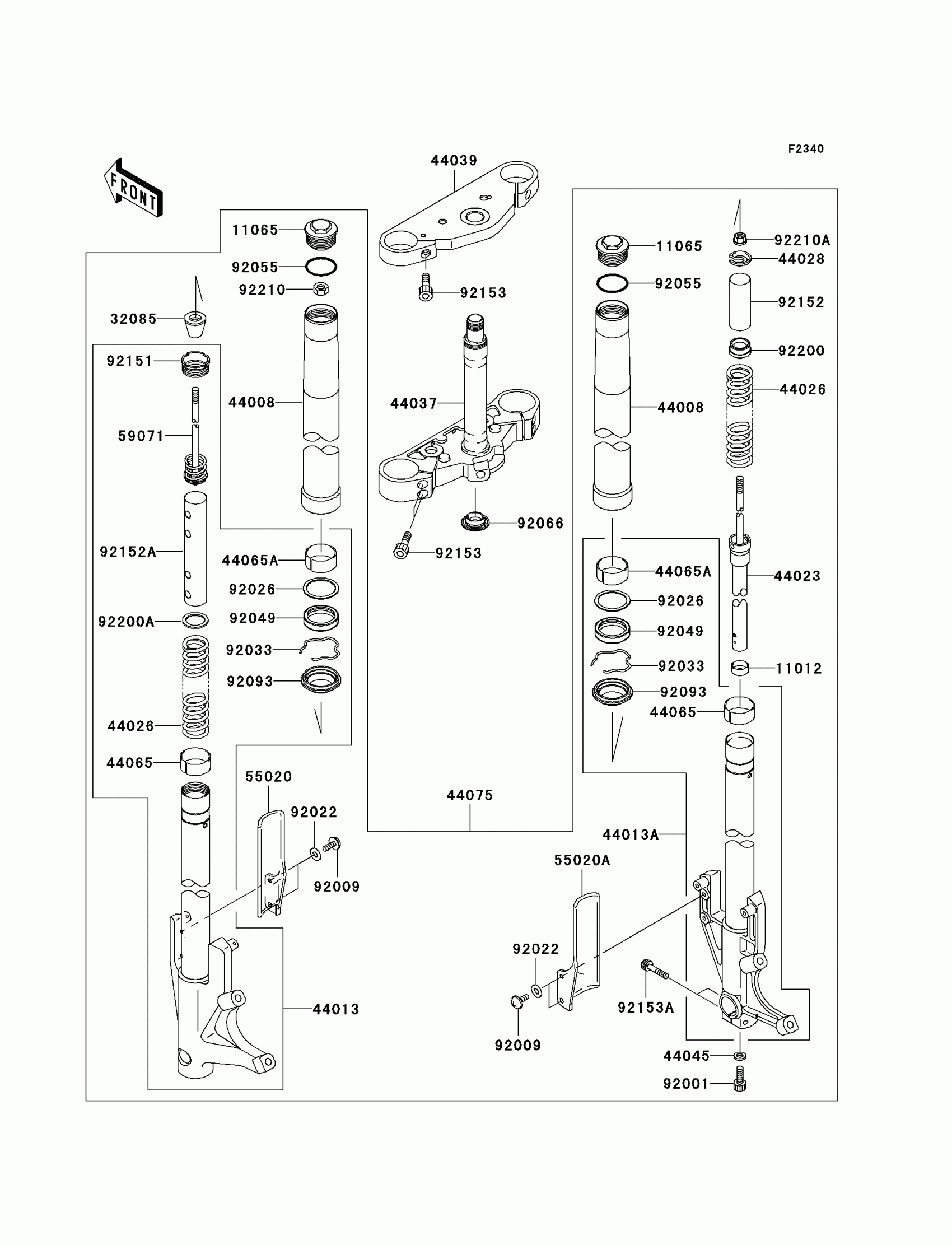

Kawasaki Vulcan 1600 Mean Streak Front Fork(B6F) Diagram

#

Description
Price

11012

CAP

11012-1761

$34.90

11065

CAP,FORK TOP

11065-1207

$46.03

32085

STOPPER

32085-1537

$36.00

44008

PIPE-FORK OUTER

44008-1053

$1,115.84

44013

PIPE-FORK INNER,LH

44013-0025

$680.35

44013A

PIPE-FORK INNER,RH

44013-0026

Unavailable

44023

CYLINDER-SET-FORK

44023-1158

$514.53

44026

SPRING-FRONT FORK

44026-1732

$106.64

44028

GUIDE-FORK SPRING

44028-1076

$14.18

44037

HOLDER-FORK UNDER

44037-1421

$853.69

44039

HOLDER-FORK UPPER

44039-1317

$320.33

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-1137

$26.59

44065A

BUSHING-FRONT FORK

44065-1138

$26.59

44075

DAMPER-SET-FORK

44075-0057

Unavailable

55020

GUARD,FORK,LH

55020-0076

$53.52

55020A

GUARD,FORK,RH

55020-0077

$53.52

59071

JOINT

59071-1188

$58.96

92001

BOLT,FORK CYLINDER

92001-1464

$6.22

92009

SCREW,6X16

92009-1776

$3.16

92022

WASHER,6.5X16X1.0

92022-1654

$3.65

92026

SPACER

92026-1598

$11.57

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0064

$25.22

92055

RING-O,FORK CAP

92055-1497

$5.93

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0042

$24.99

92151

BOLT

92151-1971

$12.48

92152

COLLAR,FORK,L=85

92152-1337

$33.14

92152A

COLLAR,FORK,L=190.4

92152-1381

$33.14

92153

BOLT,SOCKET,8X30

92153-0500

$10.86

92153A

BOLT

92153-0533

$10.86

92200

WASHER

92200-1576

$24.84

92200A

WASHER

92200-1604

$10.54

92210

NUT

92210-1330

$24.48

92210A

NUT,LOCK

92210-1346

$12.48
