- Vulcan 1600 Mean Streak
Front Fork(B1)

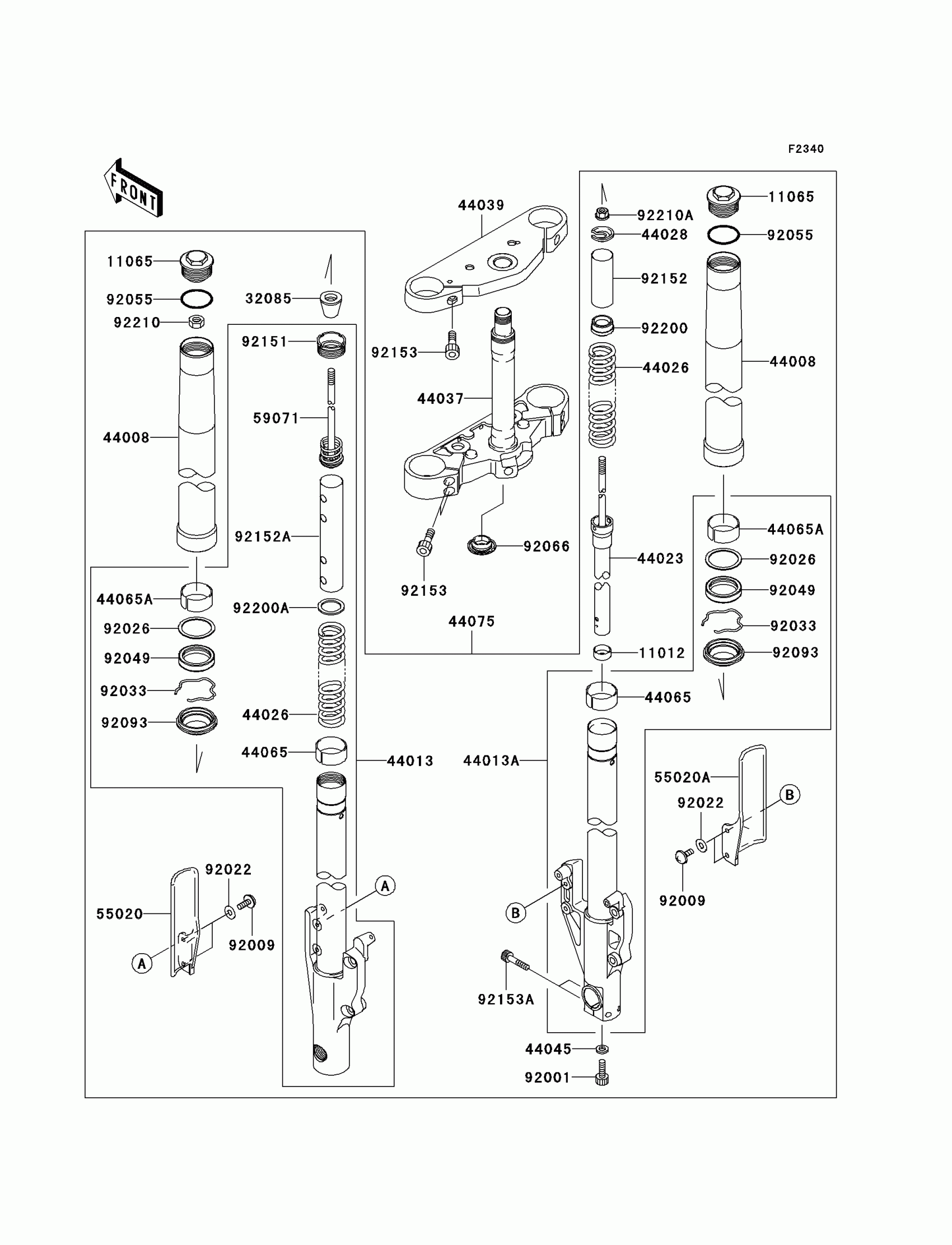

Kawasaki Vulcan 1600 Mean Streak Front Fork(B1) Diagram
#
11012
CAP
11012-1761
$34.90
11065
CAP,FORK TOP
11065-1207
$46.03
32085
STOPPER
32085-1537
$36.00
44008
PIPE-FORK OUTER
44008-1053
$1,115.84
44013
PIPE-FORK INNER,LH
44013-1489
$715.21
44013A
PIPE-FORK INNER,RH
44013-1490
$715.21
44023
CYLINDER-SET-FORK
44023-1158
$514.53
44026
SPRING-FRONT FORK
44026-1732
$106.64
44028
GUIDE-FORK SPRING
44028-1076
$14.18
44037
HOLDER-FORK UNDER
44037-1421
$853.69
44039
HOLDER-FORK UPPER
44039-1317
$320.33
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK
44065-1137
$26.59
44065A
BUSHING-FRONT FORK
44065-1138
$26.59
44075
DAMPER-SET-FORK
44075-0014
$1,643.51
55020
GUARD,FORK,LH
55020-0076
$53.52
55020A
GUARD,FORK,RH
55020-0077
$53.52
59071
JOINT
59071-1188
$58.96
92001
BOLT,FORK CYLINDER
92001-1464
$6.22
92009
SCREW,6X16
92009-1776
$3.16
92022
WASHER,6.5X16X1.0
92022-1654
$3.65
92026
SPACER
92026-1598
$11.57
92033
RING-SNAP
92033-1222
$6.51
92049
SEAL-OIL
92049-1590
$30.61
92055
RING-O,FORK CAP
92055-1497
$5.93
92066
PLUG
92066-0032
$11.66
92093
SEAL,DUST
92093-1551
$30.33
92151
BOLT
92151-1971
$12.48
92152
COLLAR,FORK,L=85
92152-1337
$33.14
92152A
COLLAR,FORK,L=190.4
92152-1381
$33.14
92153
BOLT,SOCKET,8X30
92153-0500
$10.86
92153A
BOLT
92153-0533
$10.86
92200
WASHER
92200-1576
$24.84
92200A
WASHER
92200-1604
$10.54
92210
NUT
92210-1330
$24.48
92210A
NUT,LOCK
92210-1346
$12.48
