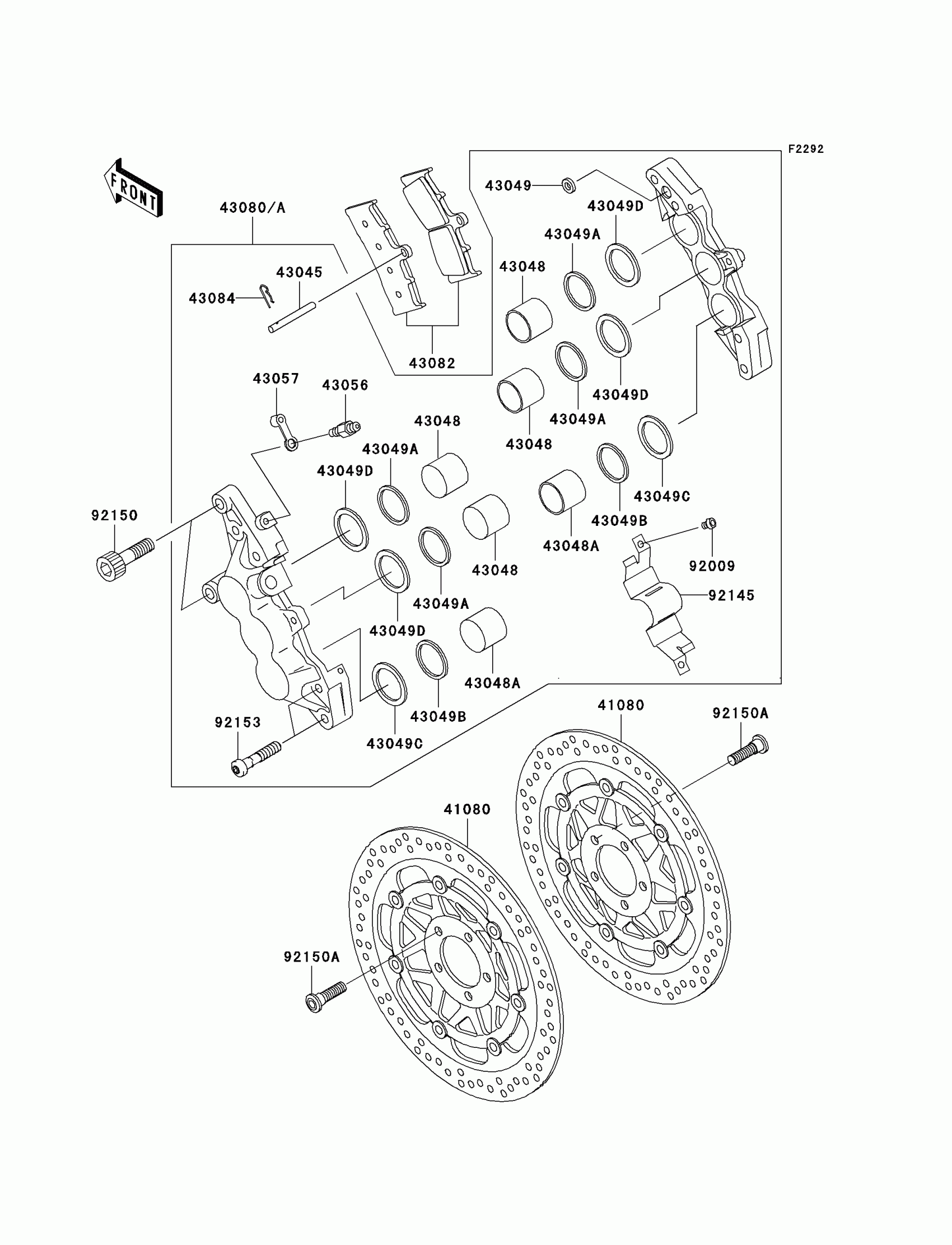

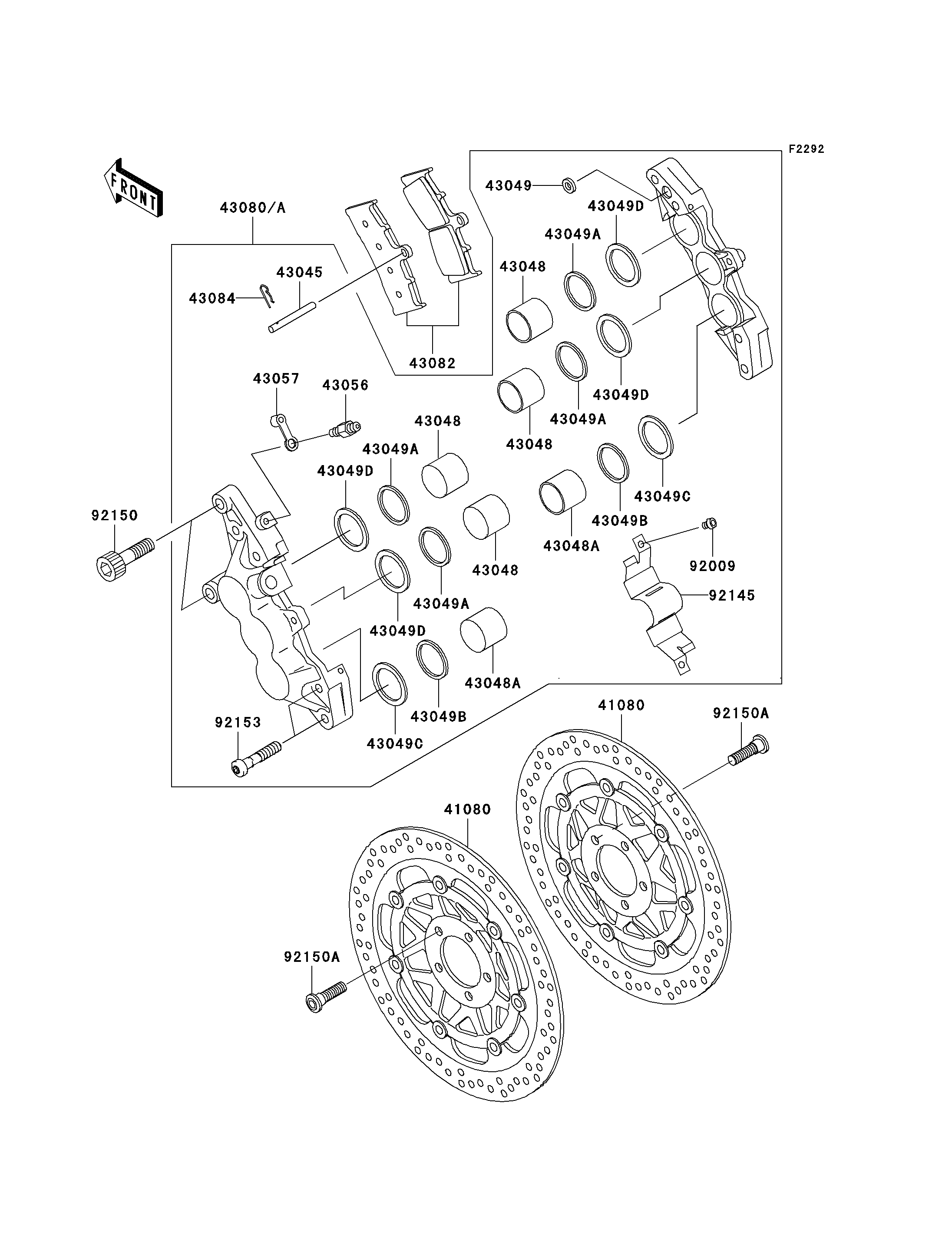

Kawasaki Vulcan 1600 Mean Streak Front Brake(B1) Diagram

Description

Price

41080

DISC,FR,SILVER+DISC-SILVER

41080-1511-5D

$490.83

43045

SHAFT-CALIPER

43045-007

$6.51

43048

PISTON-CALIPER,DIA=26.97

43048-1078

$66.04

43048A

PISTON-CALIPER

43048-1079

$73.73

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING,PISTON

43049-1059

$8.51

43049C

PACKING,PISTON SEAL

43049-1090

$6.12

43049D

PACKING,PISTON SEAL

43049-1096

$12.42

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-5088-GN

$447.20

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-5089-GN

$395.75

43082

PAD-ASSY-BRAKE

43082-1274

$68.30

43084

CLAMP,PAD

43084-003

$4.31

92009

BOLT,SOCKET,4X6

92009-1758

$2.78

92145

SPRING

92145-1482

$16.26

92150

BOLT,SOCKET,10X37

92150-1261

$11.13

92150A

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,SOCKET,8X40

92153-0360

$6.18
