Frame Fittings

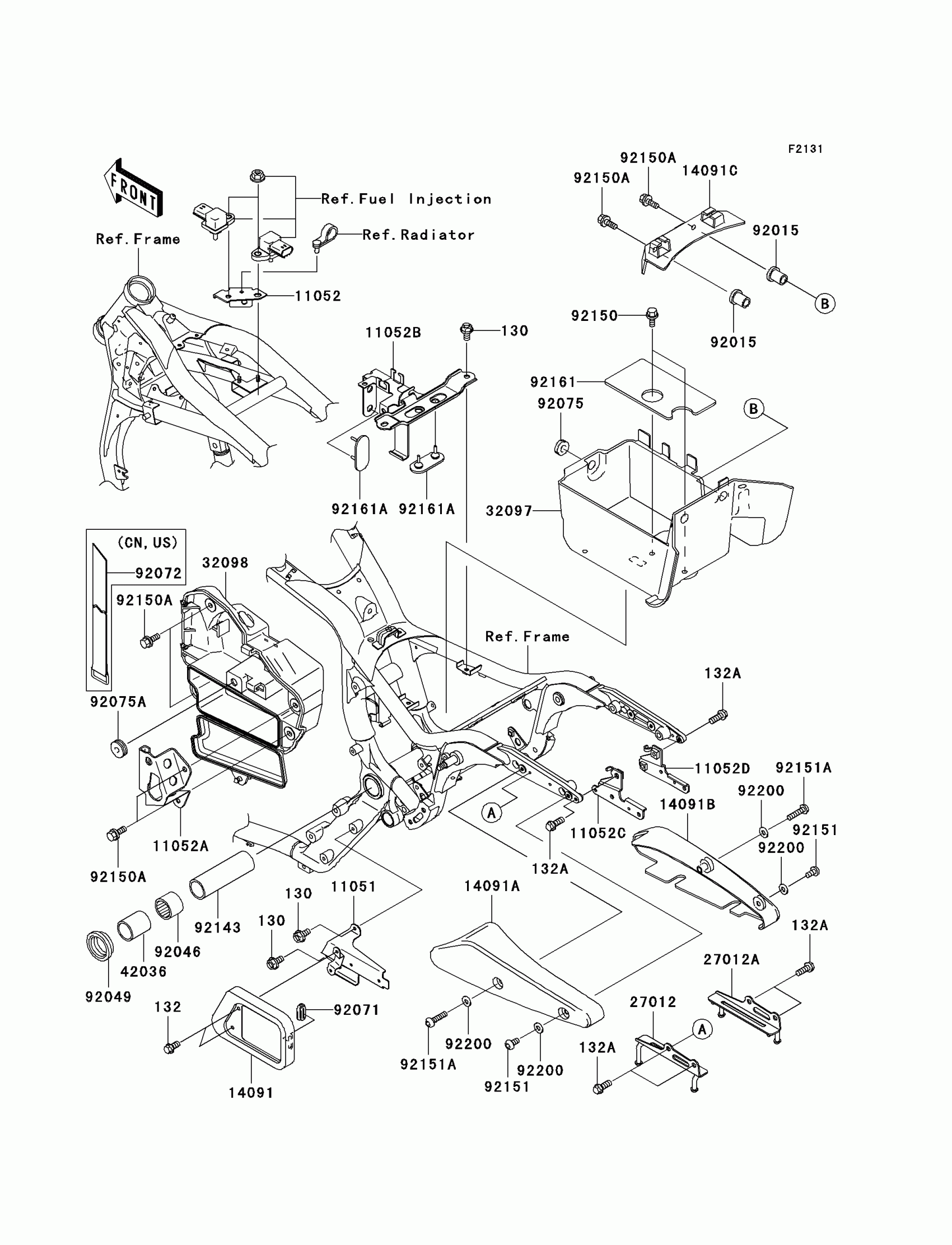

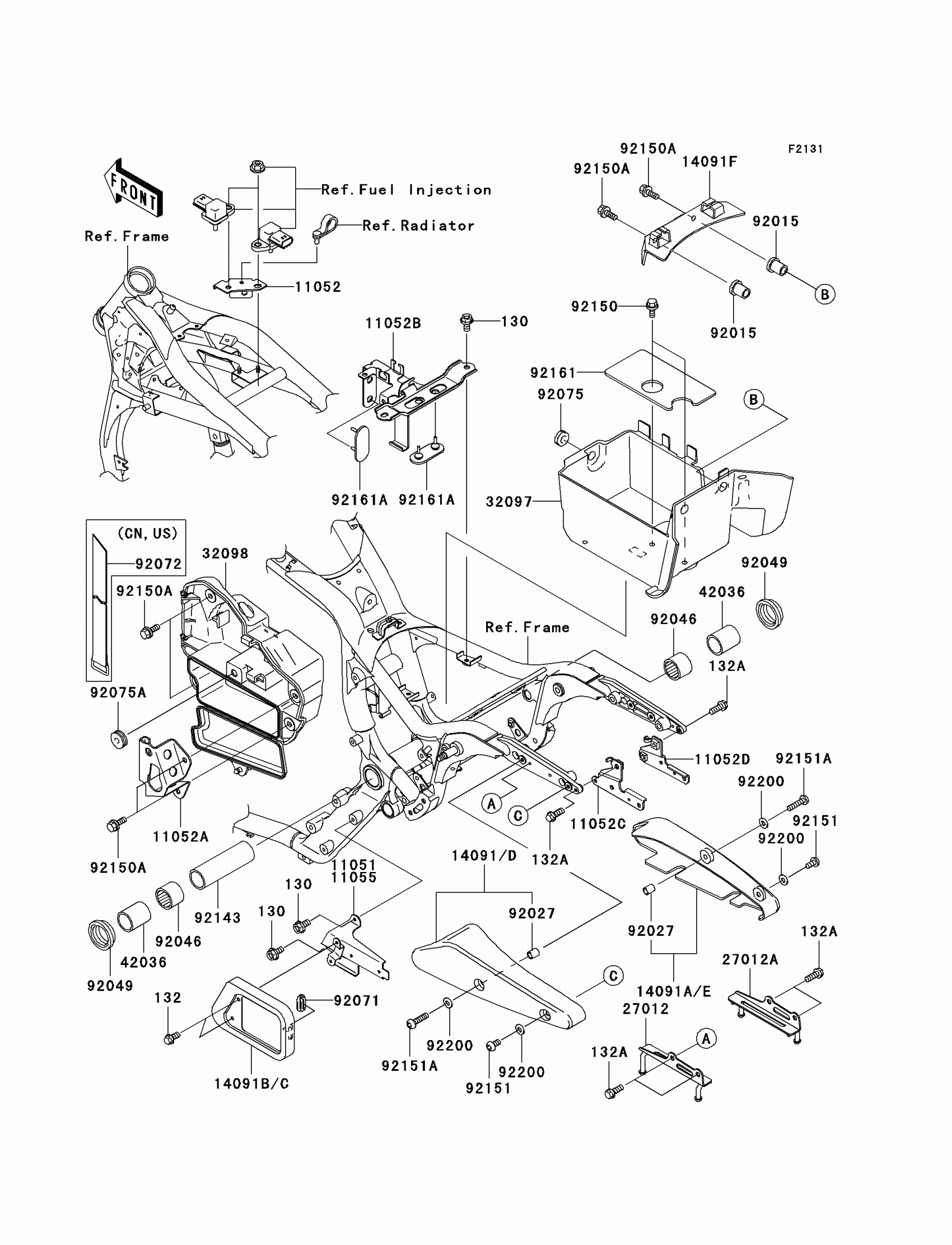

Kawasaki Vulcan® 1600 Mean Streak® Frame Fittings Diagram
#
11052
BRACKET
11052-1071
$10.54
11052A
BRACKET,SIDE COVER LOCK
11052-1234
$22.68
11052B
BRACKET,BATTERY BAND
11052-1281
$33.14
11052C
BRACKET,HELMET LOCK,LH
11052-1282
$14.78
11052D
BRACKET,HELMET LOCK,RH
11052-1283
$14.78
11055
BRACKET,REGULATOR
11055-0413
$78.93
14091B
COVER,REGULATOR
14091-0854
$61.19
14091F
COVER,BATTERY CASE
14091-1373
$25.39
27012
HOOK,BUNGEE CORD,LH
27012-1609
$26.84
27012A
HOOK,BUNGEE CORD,RH
27012-1610
$26.84
32097
CASE-BATTERY
32097-1192
$41.22
32098
CASE-TOOL
32098-1137
$145.59
42036
SLEEVE,L=45
42036-1330
$29.70
92015
NUT
92015-1700
$8.58
92027
COLLAR,6.8X10X12
92027-162
$6.57
92046
BEARING-NEEDLE,BM2824
92046-1202
$25.10
92049
SEAL-OIL,28X34X5.7
92049-1181
$9.28
92071
GROMMET
92071-0013
$5.54
92075
DAMPER
92075-1067
$4.69
92075A
DAMPER
92075-1629
$5.00
92143
COLLAR,20.2X27X90
92143-1878
$34.47
92150
BOLT,6X14
92150-1133
$4.31
92150A
BOLT,6X16
92150-1198
$4.13
92151
BOLT,SOCKET,6X12
92151-1940
$3.74
92151A
BOLT,SOCKET,6X25
92151-1945
$5.22
92161
DAMPER,BATTERY
92161-1097
$6.57
92161A
DAMPER,BATTERY BAND
92161-1214
$4.38
92200
WASHER,6.5X14.5X1.5
92200-3775
$1.74
130
BOLT-FLANGED,6X12
130J0612
$2.19
132
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
132A
BOLT-FLANGED-SMALL,6X16
132J0616
$2.33
14091
COVER,RR FENDER,LH
14091-0674
$77.56
14091A
COVER,RR FENDER,RH
14091-0675
$77.56
14091D
COVER,RR FENDER,LH
14091-1361
$85.55
14091E
COVER,RR FENDER,RH
14091-1363
$85.55
92072
BAND,L=470
92072-1331
$24.84
