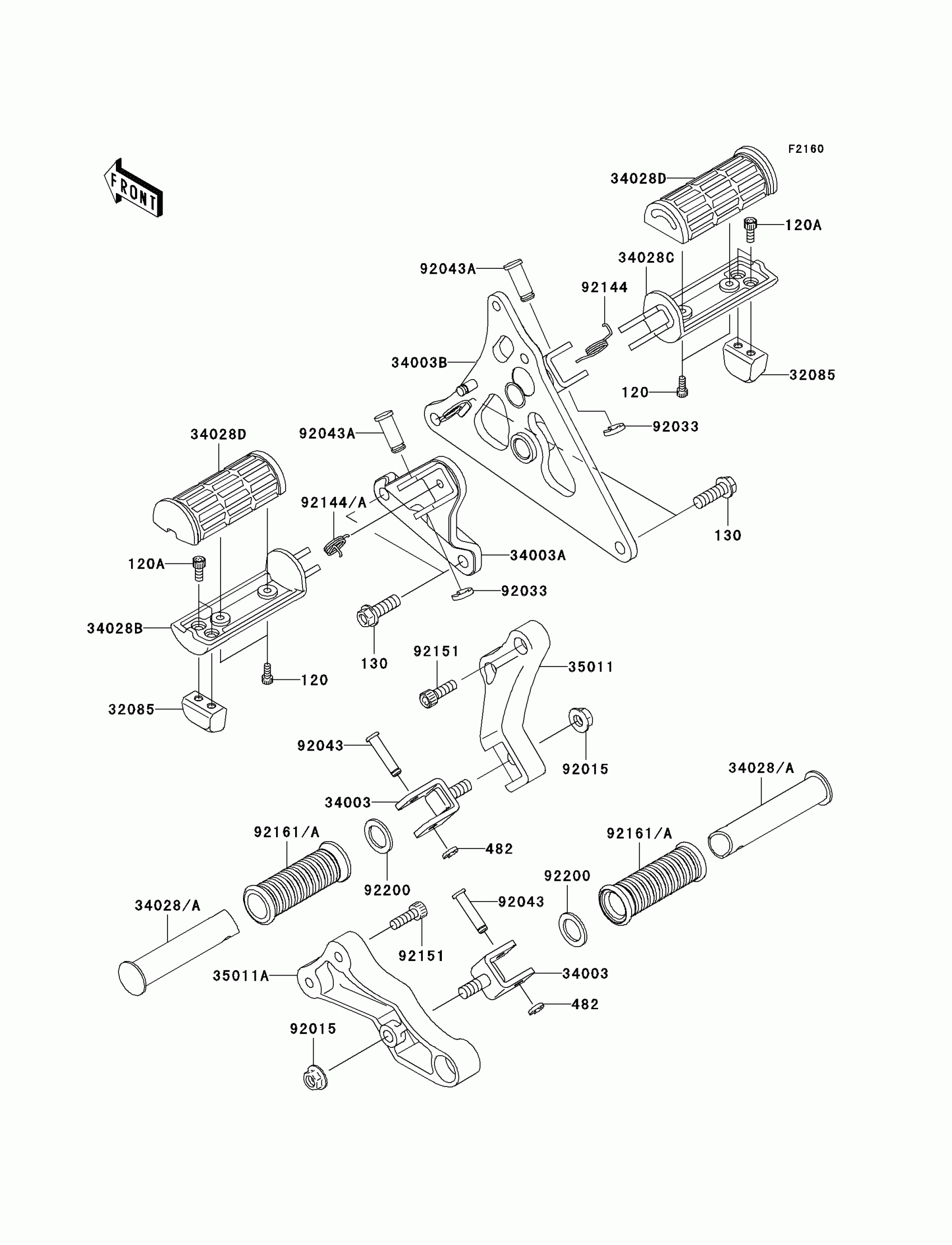

Kawasaki Vulcan® 1600 Mean Streak® Footrests Diagram
#
Description
Price
120
BOLT-SOCKET,5X12
120S0512
$1.71
120A
BOLT-SOCKET,6X14
120S0614
$3.84
130
BOLT-FLANGED,10X30
130J1030
$6.10
482
CIRCLIP-TYPE-E
482L7000
$3.92
32085
STOPPER,BANK SENSOR
32085-1534
$25.76
34003
HOLDER-STEP,RR
34003-0015
$35.45
34003B
HOLDER-STEP,FR,LH
34003-0064
$130.28
34003C
HOLDER-STEP,FR,RH
34003-0065
$160.57
34028
STEP,RR
34028-0017
$23.45
34028A
STEP,FR,LH
34028-1519
$50.52
34028B
STEP,FR,RH
34028-1520
$47.64
34028C
STEP,RUBBER
34028-1522
$28.28
92015
NUT,FLANGED,10MM
92015-1428
$5.00
92033
RING-SNAP,10MM
92033-1166
$3.89
92043
PIN,8X36.5
92043-1339
$7.84
92043A
PIN,12X37
92043-1358
$8.10
92144
SPRING,STEP RETURN
92144-1126
$6.16
92151
BOLT,SOCKET,8X25
92151-1525
$2.97
92161
DAMPER,STEP
92161-0232
$16.53
92200
WASHER,22.5X33X2.3
92200-1482
$2.75
35063
STAY,REAR STEP,LH,BLACK
35063-0245-18R
$89.21
35063A
STAY,REAR STEP,LH,P.RED
35063-0245-796
$89.21
35063B
STAY,REAR STEP,RH,BLACK
35063-0246-18R
$89.21
35063C
STAY,REAR STEP,RH,P.RED
35063-0246-796
$89.21
