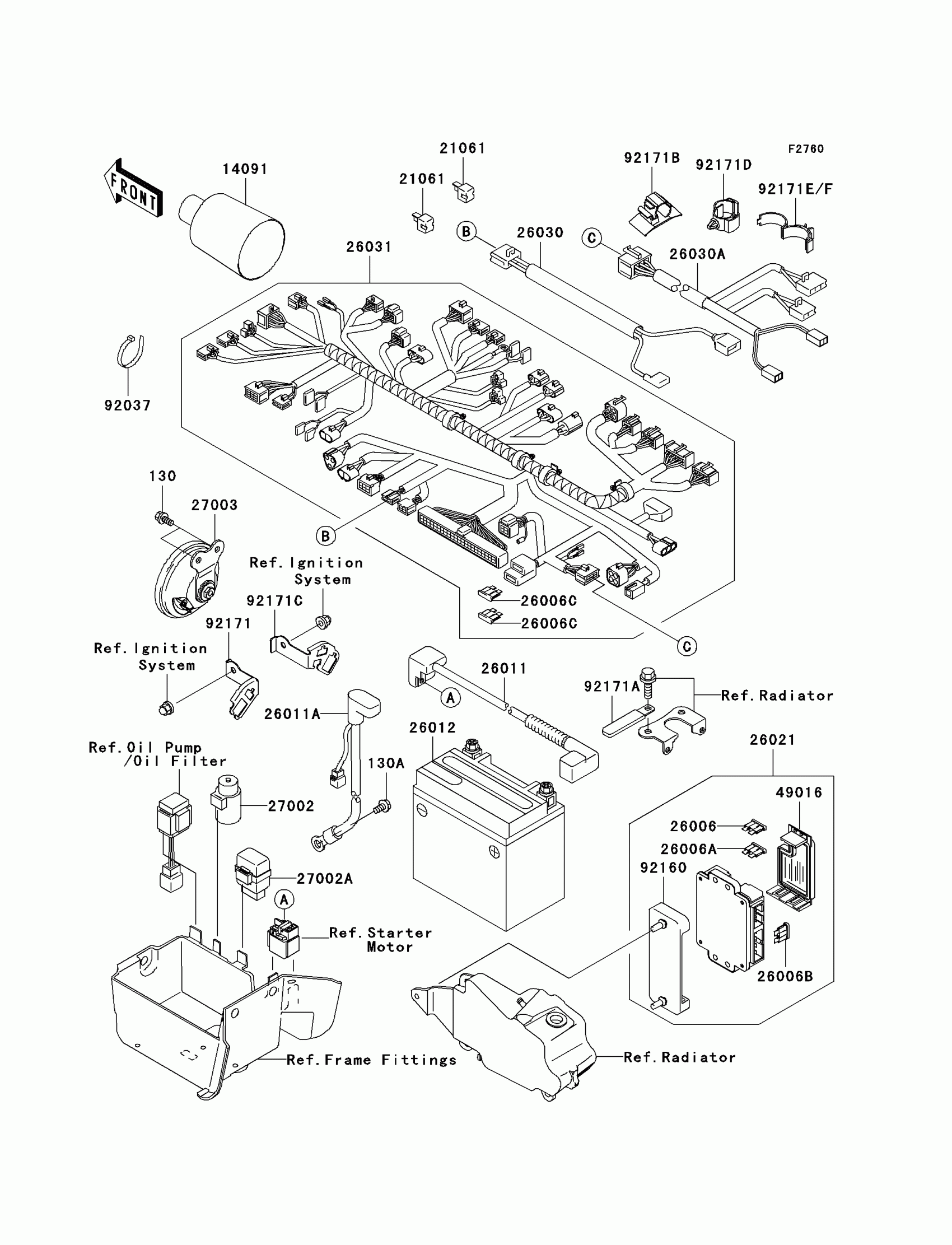

Kawasaki Vulcan® 1600 Mean Streak® Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

14091

COVER,CONNECTOR

14091-0236

$13.61

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006B

FUSE,BLADE,15A,BLUE

26006-1061

$5.46

26006C

FUSE,15A-B

26006-1069

$5.46

26011

WIRE-LEAD,BATTERY(+)

26011-0018

$54.12

26011A

WIRE-LEAD,BATTERY(-)

26011-1750

$57.88

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

Unavailable

26021

JUNCTION BOX

26021-0002

Unavailable

26030

HARNESS,SUB

26030-1450

$20.98

26030A

HARNESS,RR

26030-1877

$108.00

26031

HARNESS,MAIN

26031-0225

$602.00

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

$115.95

27003

HORN

27003-1431

$89.78

49016

COVER-SEAL,FUSE

49016-0005

$9.82

92037

CLAMP

92037-1173

$3.49

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44

92171

CLAMP,IGNITION COIL,LH

92171-0204

$10.54

92171A

CLAMP,L=60

92171-0652

$2.61

92171B

CLAMP,HARNESS

92171-1269

$4.62

92171C

CLAMP,IGNITION COIL,RH

92171-1370

$10.54

92171D

CLAMP,13MM DIA.

92171-1415

$2.03

92171E

CLAMP,10MM DIA.

92171-1423

$4.18

92171F

CLAMP,DIA=15

92171-1424

$4.18
