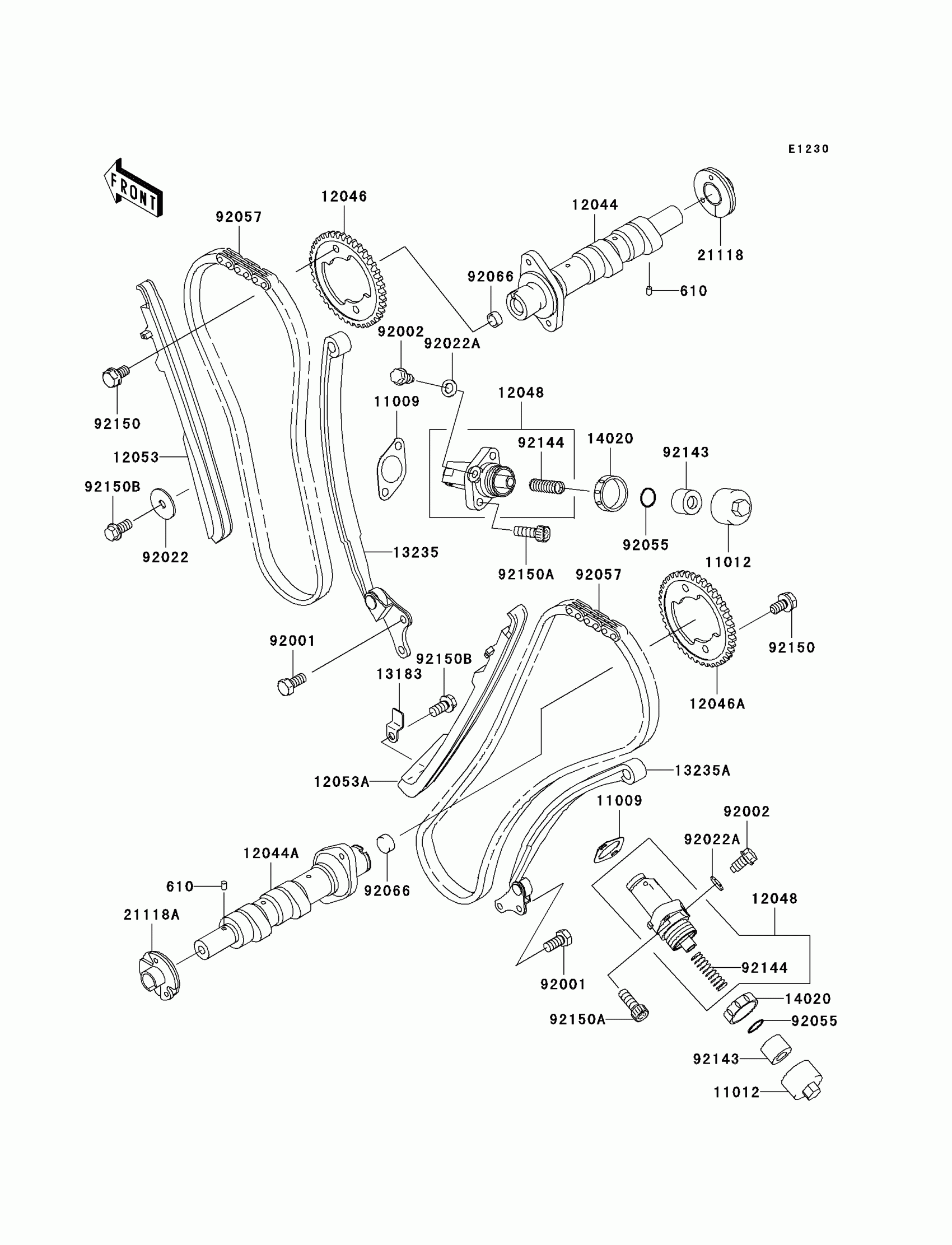

Kawasaki Vulcan® 1600 Mean Streak® Camshaft(s)/Tensioner Diagram

Description

Price

610

ROLLER,4X6

610A0406

$4.31

11009

GASKET,TENSIONER

11009-1858

$4.61

11012

CAP,TENSIONER

11012-1959

$38.21

12044

CAMSHAFT-VALVE,FR

12044-1200

$464.63

12044A

CAMSHAFT-VALVE,RR

12044-1494

$495.08

12046

SPROCKET,CAMSHAFT,FR,46T

12046-1175

$55.22

12046A

SPROCKET,CAMSHAFT,RR,46T

12046-1176

$55.22

12048

TENSIONER-ASSY

12048-1160

$138.80

12053

GUIDE-CHAIN,FR,TENSIONER

12053-1219

$51.90

12053A

GUIDE-CHAIN,RR,TENSIONER

12053-1221

$51.90

13183

PLATE

13183-1096

$5.59

13235

GUIDE-COMP,FR

13235-1070

$93.83

13235A

GUIDE-COMP,RR

13235-1071

$93.83

14020

RETAINER,TENSIONER

14020-1054

$21.77

21118

DECOMPRESSOR,FR

21118-0005

$160.33

21118A

DECOMPRESSOR,RR

21118-0006

$160.33

92001

BOLT,6X16

92001-1457

$5.00

92002

BOLT,FLANGED,6X9.5

92002-1356

$6.22

92022

WASHER,7X27X1.6

92022-227

$4.69

92022A

WASHER,6.2X11X1

92022-304

$3.65

92055

RING-O,23.3X1.9

92055-1555

$2.78

92057

CHAIN,CAM,92RH2010

92057-1422

$111.82

92066

PLUG

92066-1198

$4.65

92143

COLLAR,TENSIONER

92143-1836

$16.69

92144

SPRING,TENSIONER

92144-1921

$8.03

92150

BOLT,FLANGED,6X11

92150-1725

$5.00

92150A

BOLT,SOCKET,6X20

92150-1795

$5.59

92150B

BOLT,6X12

92150-1868

$3.32
