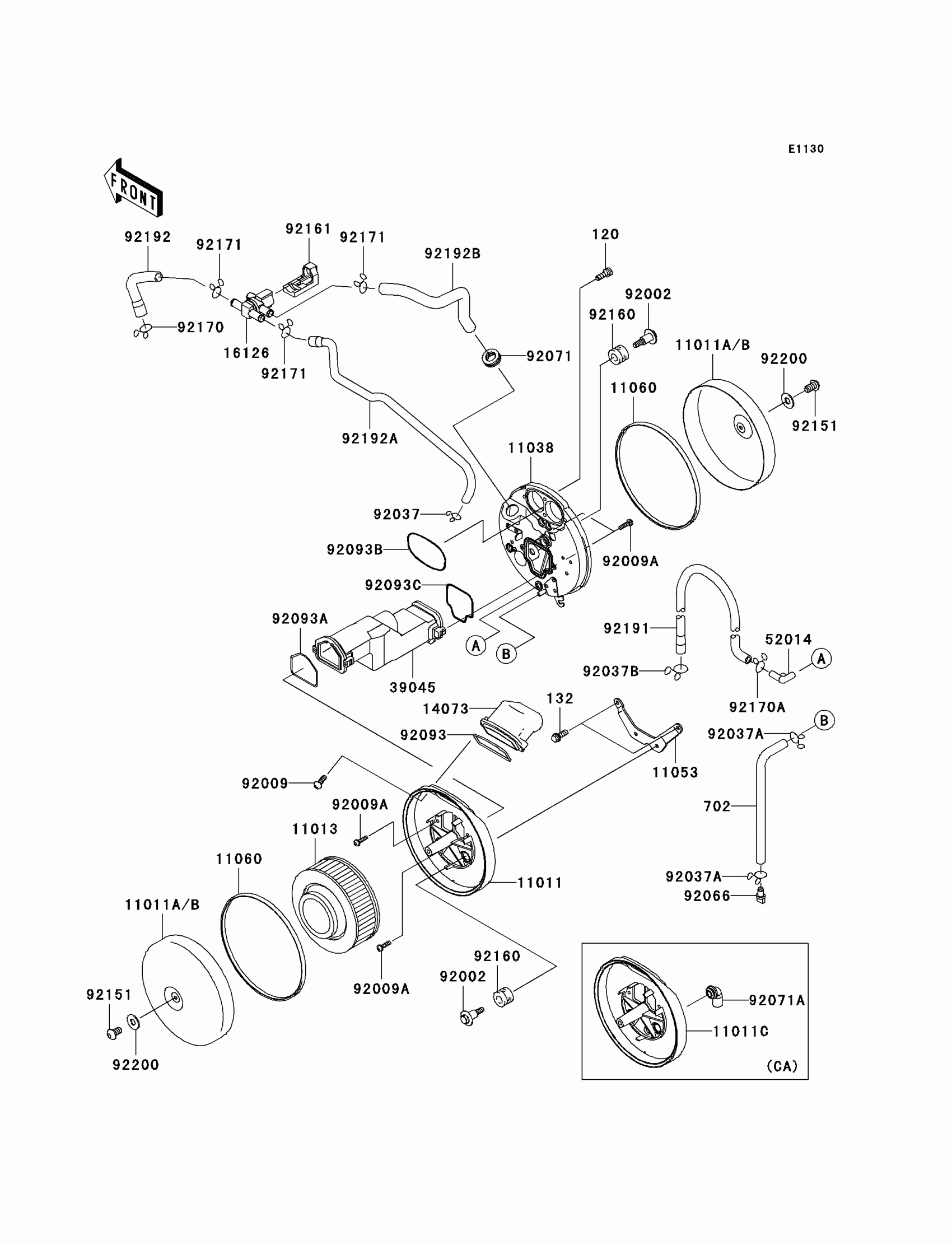

Kawasaki Vulcan® 1600 Mean Streak® Air Cleaner Diagram

#

Description
Price

11013

ELEMENT-AIR FILTER

11013-1248

$46.07

11038

CASE-ASSY-AIR FILTER,RH

11038-0005

$97.01

11053

BRACKET

11053-0231

$18.02

11060

GASKET,AIR FILTER CASE

11060-1968

$18.88

14073

DUCT,AIR FILTER

14073-1739

$34.11

16126

VALVE,AIR SWITCHING

16126-1437

$185.64

39045

DUCT-ASSY,CENTER

39045-0003

$133.60

52014

ELBOW

52014-1083

$7.84

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$13.07

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92009A

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.83

92037

CLAMP

92037-1468

$7.75

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1593

$6.21

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET,AIR FILTER

92071-1028

$7.27

92093

SEAL,AIR FILTER CASE

92093-1408

$11.38

92093A

SEAL,DUCT,LH

92093-1459

$6.89

92093B

SEAL

92093-1485

$6.89

92093C

SEAL,DUCT,RH

92093-1491

$6.89

92151

BOLT,8X14

92151-1438

$2.46

92160

DAMPER

92160-1594

$4.69

92161

DAMPER

92161-0309

$14.56

92170

CLAMP,TUBE

92170-1445

$4.92

92170A

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0790

$4.20

92191

TUBE,BREATHER

92191-1406

$26.87

92192

TUBE,FR HEAD-AIR SWITCH

92192-0001

$11.64

92192A

TUBE,RR HEAD-AIR SWITCH

92192-0002

$23.35

92192B

TUBE,AIR SWITCH-AIR CLEANER

92192-0003

$21.55

120

BOLT-SOCKET,6X16

120S0616

$1.23

132

BOLT-FLANGED-SMALL,6X16

132J0616

$2.33

702

TUBE-RUBBER,7X10X230

702A07230

$13.38

92200

WASHER,8.5X20X1.6

92200-1463

$2.79

11011

CASE-AIR FILTER,LH

11011-0020

$97.01

11011A

CASE-AIR FILTER,COVER

11011-0021

$104.95

11011B

CASE-AIR FILTER

11011-0083

$97.85

11011C

CASE-AIR FILTER,LH

11011-1601

$90.54

92071A

GROMMET,AIR FILTER

92071-1114

$24.61
