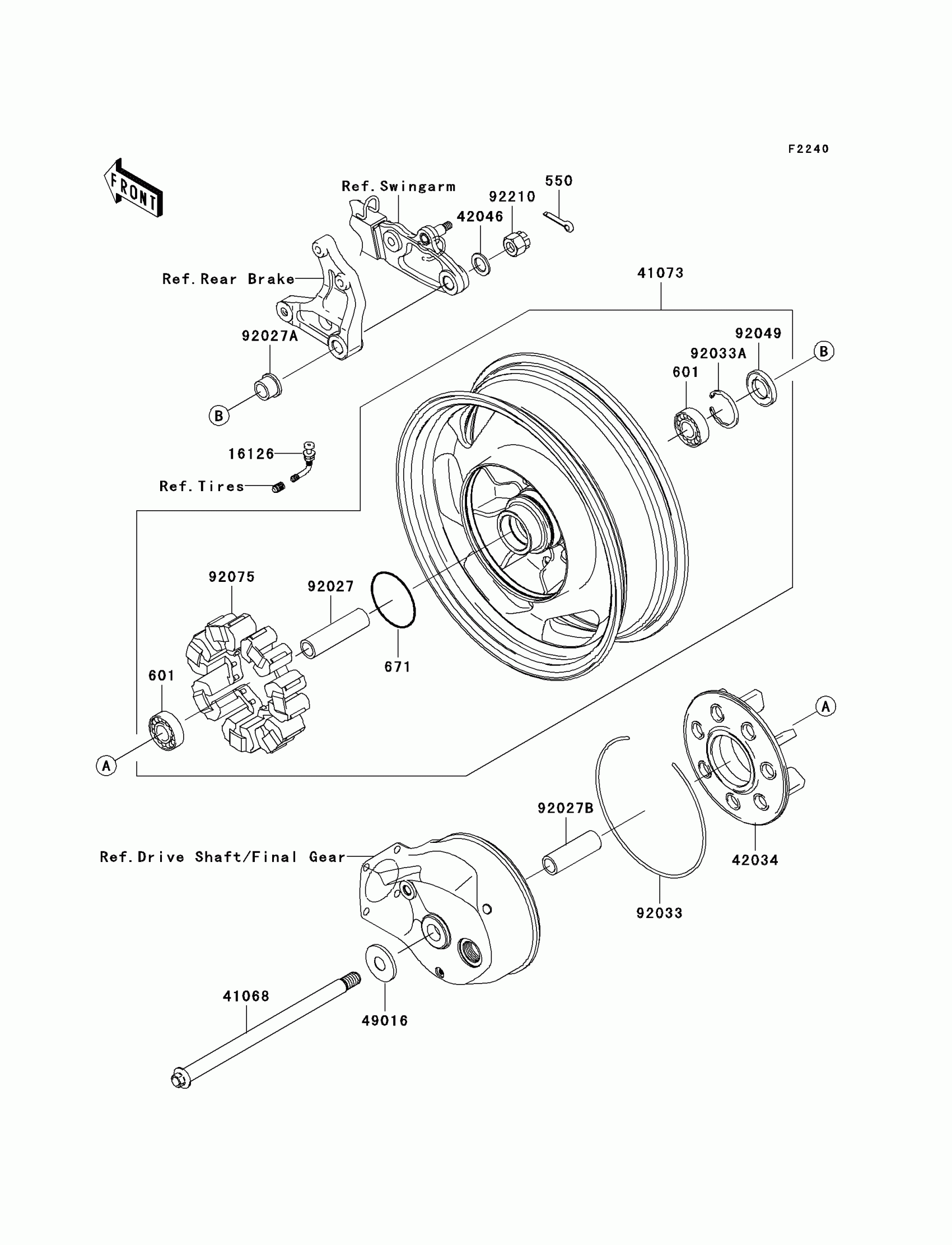

Kawasaki Vulcan® 1600 Classic Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6304UUC3

601B6304UU

$34.48

671

O RING,80MM

671B2580

$6.57

16126

VALVE

16126-1365

$25.53

41068

AXLE,RR

41068-0045

$124.90

41073

WHEEL-ASSY,RR

41073-0032

$1,085.25

42034

COUPLING,RR HUB

42034-0002

$265.19

42046

WASHER,21X33X2.6

42046-003

$4.31

49016

COVER-SEAL

49016-1019

$8.53

92027

COLLAR,20.2X28X105.5

92027-1901

$37.84

92027A

COLLAR,RR AXLE,L=21.5

92027-1902

$25.27

92027B

COLLAR,20.2X28X86

92027-1969

$25.19

92033

RING-SNAP,220MM

92033-0012

$17.50

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92075

DAMPER,SHOCK,RR HUB

92075-1121

$135.89

92210

NUT,CASTLE,18MM

92210-1134

$7.62
