Oil Pump/Oil Filter

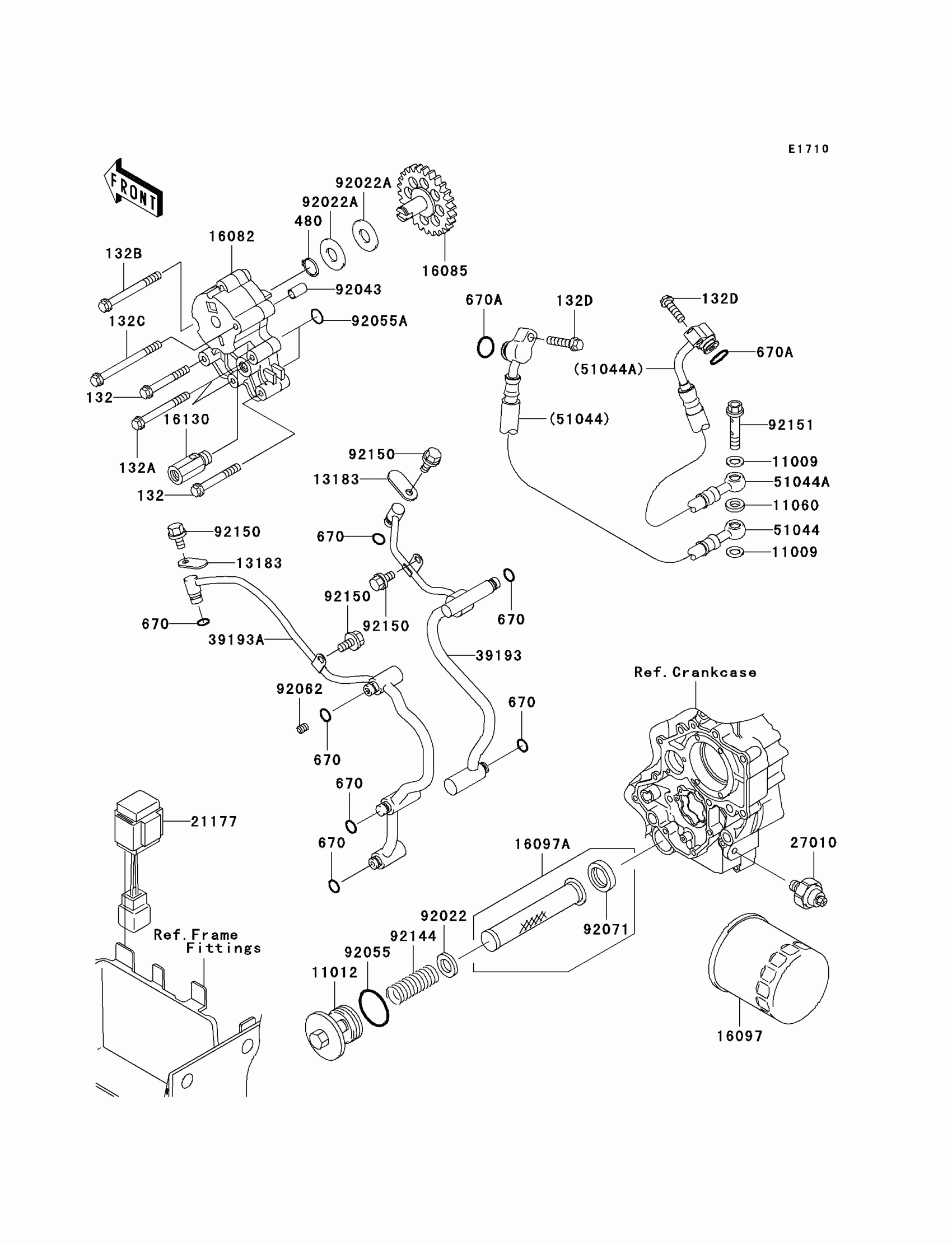

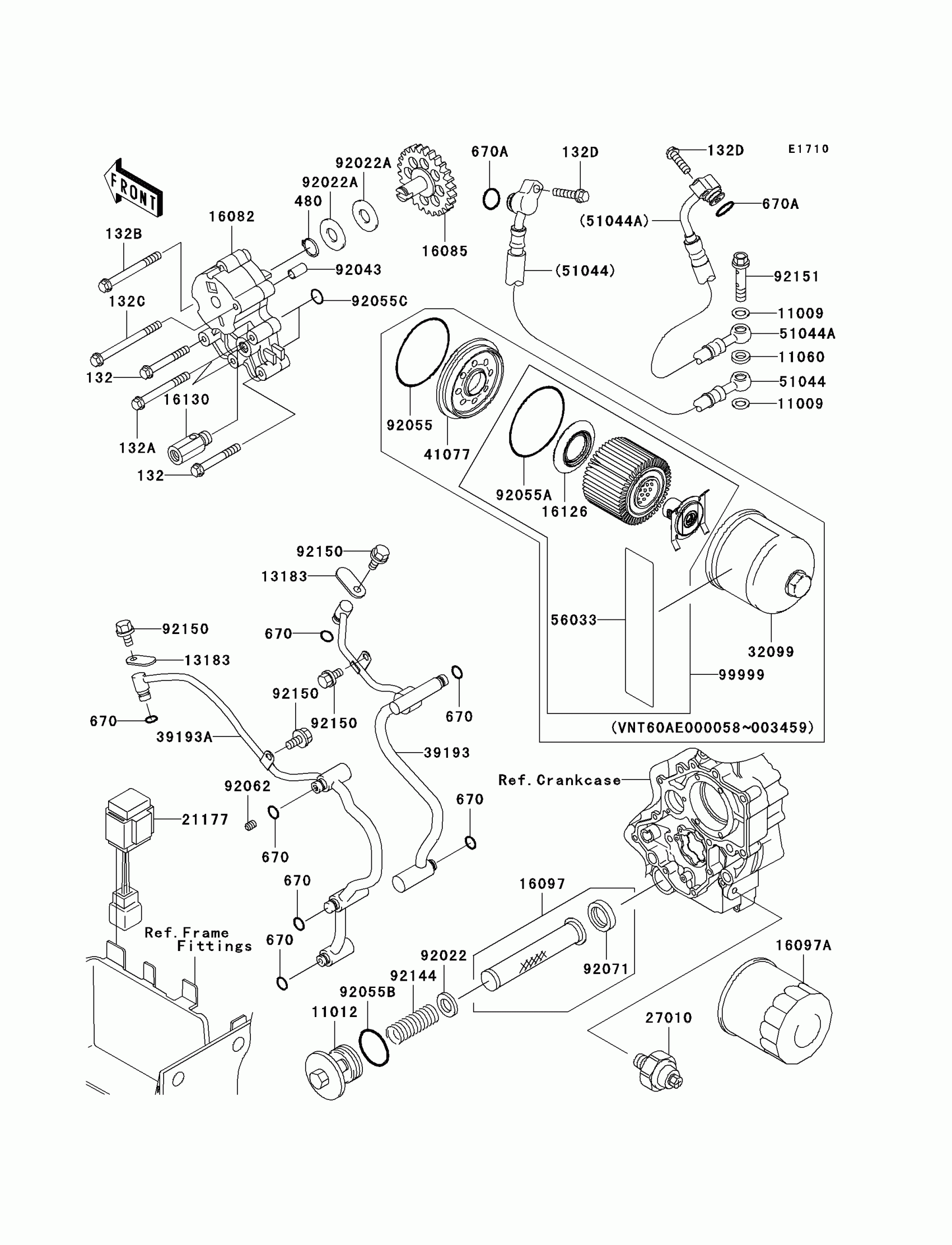

Kawasaki Vulcan® 1600 Classic Oil Pump/Oil Filter Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X45
132G0645
$4.15
132A
BOLT-FLANGED-SMALL,6X55
132G0655
$2.62
132B
BOLT-FLANGED-SMALL,6X60
132G0660
$3.84
132C
BOLT-FLANGED-SMALL,6X70
132G0670
$3.57
132D
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
480
CIRCLIP-TYPE-C,12MM
480J1200
$0.62
670
O RING,8MM
670D1508
$4.31
670A
O RING,10MM
670D2010
$1.94
11009
GASKET,8.2X14X1.0
11009-1344
$3.17
11012
CAP,OIL FILTER
11012-1461
$45.18
11060
GASKET,PIPE JOINT
11060-1739
$3.10
13183
PLATE
13183-1071
$5.59
16082
PUMP-ASSY-OIL
16082-1155
$327.88
16085
GEAR,OIL PUMP,39T
16085-1345
$93.28
16097
FILTER-ASSY-OIL
16097-0004
Unavailable
16097A
FILTER-ASSY-OIL
16097-1058
$14.37
16130
VALVE-ASSY-RELIEF
16130-1059
$41.98
21177
CONTROLLER,OIL LAMP
21177-1058
$134.78
27010
SWITCH,OIL PRESSURE
27010-1360
$42.79
39193
PIPE-OIL
39193-1071
$118.89
39193A
PIPE-OIL
39193-1072
$118.89
51044
TUBE-ASSY,FR
51044-0011
$182.20
51044A
TUBE-ASSY,RR
51044-0012
$201.64
92022
WASHER,20.1X28X1
92022-1547
$4.31
92022A
WASHER,12X27.5X1.0
92022-1852
$5.11
92043
PIN,6.2X8X14
92043-1263
$0.43
92055
RING-O,35.2X2.4
92055-1358
$7.34
92055A
RING-O,13.2X2.4
92055-1373
$5.24
92062
NOZZLE,6X8,GREEN
92062-1078
$4.69
92071
GROMMET,OIL STRAINER
92071-100
$5.46
92144
SPRING
92144-1106
$6.51
92150
BOLT,6X12
92150-1868
$3.32
92151
BOLT,8X35
92151-1355
$13.77
