Left Engine Cover(s)

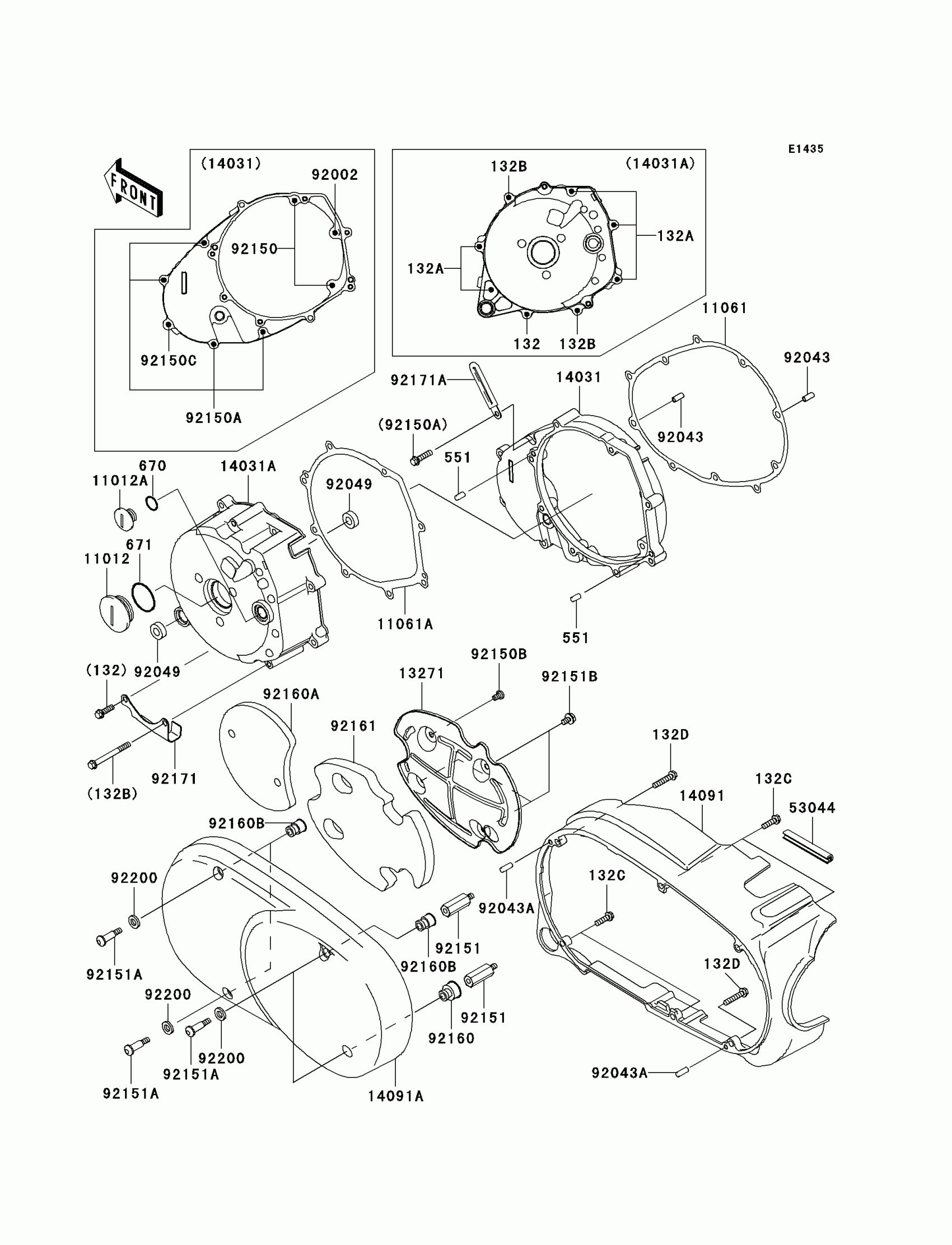

Kawasaki Vulcan® 1600 Classic Left Engine Cover(s) Diagram
#
132
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132A
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132B
BOLT-FLANGED-SMALL,6X60
132J0660
$4.89
132C
BOLT-FLANGED-SMALL,6X20
132V0620
$2.33
132D
BOLT-FLANGED-SMALL,6X30
132V0630
$2.48
551
PIN-DOWEL,6X12
551A0612
$0.94
670
O RING,18MM
670B2018
$1.42
671
O RING,40MM
671B2540
$6.22
11012
CAP
11012-1362
$8.79
11012A
CAP,TOP MARK
11012-1363
$6.51
11061
GASKET,GENERATOR COVER,IN
11061-1079
$24.61
11061A
GASKET,GENERATOR COVER,OUT
11061-1080
$23.83
13271
PLATE
13271-1496
$29.51
14031
COVER-GENERATOR,INNER
14031-1348
$144.42
14031A
COVER-GENERATOR,OUTER
14031-1349
$256.18
14091
COVER,LH,INNER
14091-1206
$135.10
14091A
COVER,LH,OUTER
14091-1297
$516.39
53044
TRIM
53044-1312
$5.22
92002
BOLT,FLANGED-SMALL,6X40
92002-1566
$5.30
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,6X16
92043-1690
$5.00
92049
SEAL-OIL,VB13193
92049-1398
$6.22
92150
BOLT,6X30
92150-1021
Unavailable
92150A
BOLT,FLANGED-SMALL,6X25
92150-1779
Unavailable
92150B
BOLT,6X10
92150-1864
$3.86
92150C
BOLT,6X35
92150-1967
$4.31
92151
BOLT
92151-1062
$16.72
92151A
BOLT,L=32
92151-1796
$6.67
92151B
BOLT,6X10
92151-1884
$2.61
92160
DAMPER
92160-1718
$7.62
92160A
DAMPER
92160-1719
$27.35
92160B
DAMPER
92160-1730
$8.60
92161
DAMPER
92161-1179
$47.86
92171
CLAMP,CLUCTH HOSE
92171-0117
$5.59
92171A
CLAMP
92171-0462
$4.92
92200
WASHER
92200-1296
Unavailable
