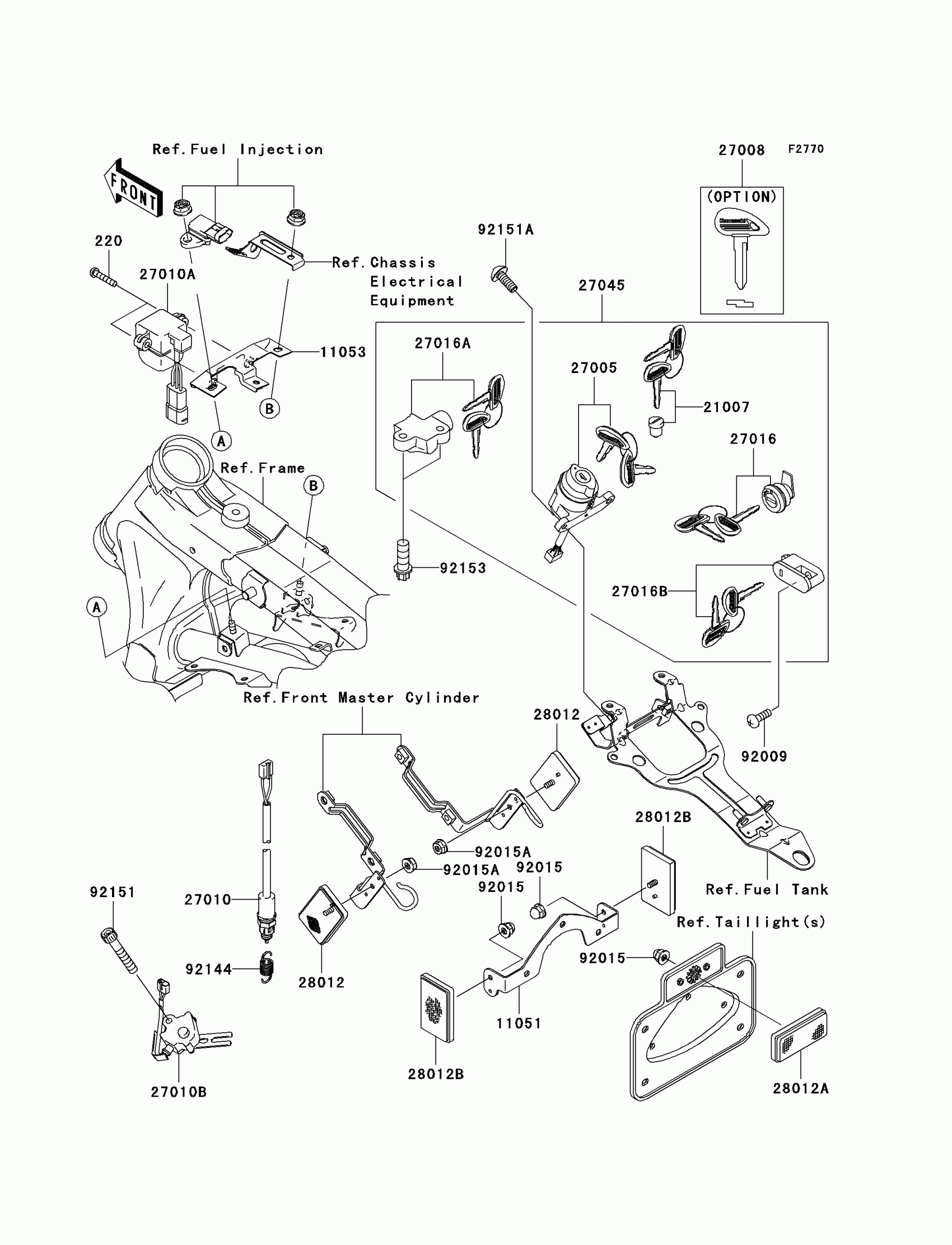

Kawasaki Vulcan® 1600 Classic Ignition Switch/Locks/Reflectors Diagram

Description

Price

220

SCREW-PAN-CROS,4X20

220C0420

$0.94

11051

BRACKET,REFLECTOR

11051-1100

$14.60

11053

BRACKET,DOWN SENSOR

11053-0261

$15.24

21007

ROTOR,LOCK,TANK CAP

21007-5053

$55.22

27005

SWITCH-ASSY-IGNITION

27005-0001

$195.07

27008

KEY-LOCK,BLANK

27008-1211

$31.78

27010

SWITCH,REAR BRAKE

27010-1412

$36.58

27010A

SWITCH,DOWN SENSOR

27010-1416

Unavailable

27010B

SWITCH,SIDE STAND

27010-1470

$70.27

27016

LOCK-ASSY,LID

27016-5279

$73.22

27016A

LOCK-ASSY,STEERING

27016-5298

$111.26

27016B

LOCK-ASSY,HELMET

27016-5317

$67.81

27045

SWITCH-ASSY

27045-5246

$555.95

28012

REFLECTOR-REFLEX,FR

28012-1009

$26.23

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

28012B

REFLECTOR-REFLEX

28012-1088

$22.46

92009

SCREW,5X12

92009-1296

$3.92

92015

NUT,LOCK,FLANGE CAP,5MM

92015-1263

$6.57

92015A

NUT,FLANGED,5MM

92015-1656

$3.21

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92151

BOLT,SOCKET,6X35

92151-1390

$2.46

92151A

BOLT,SOCKET,6X16

92151-1751

$2.46

92153

BOLT,TORX,8X22

92153-1273

$5.79
