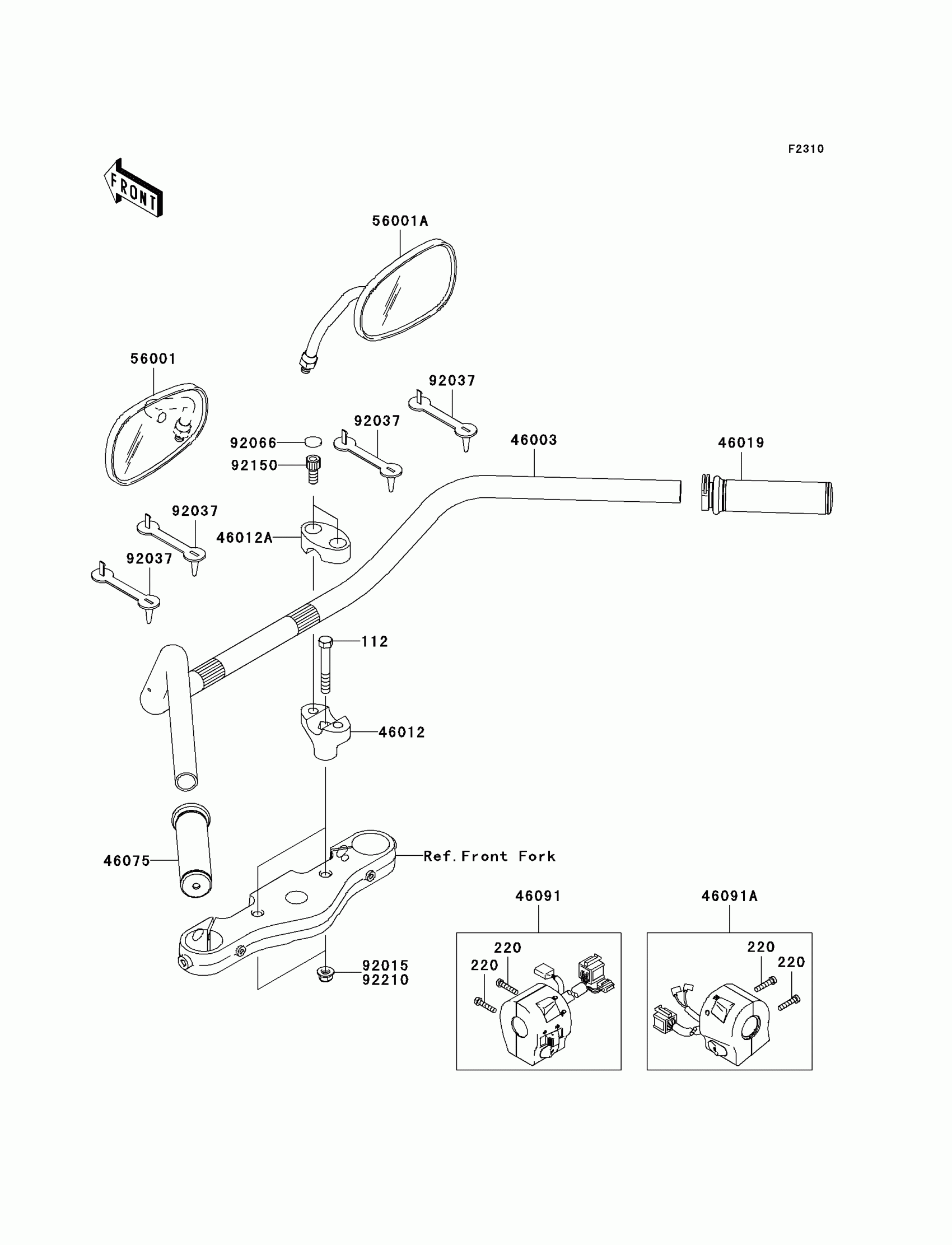

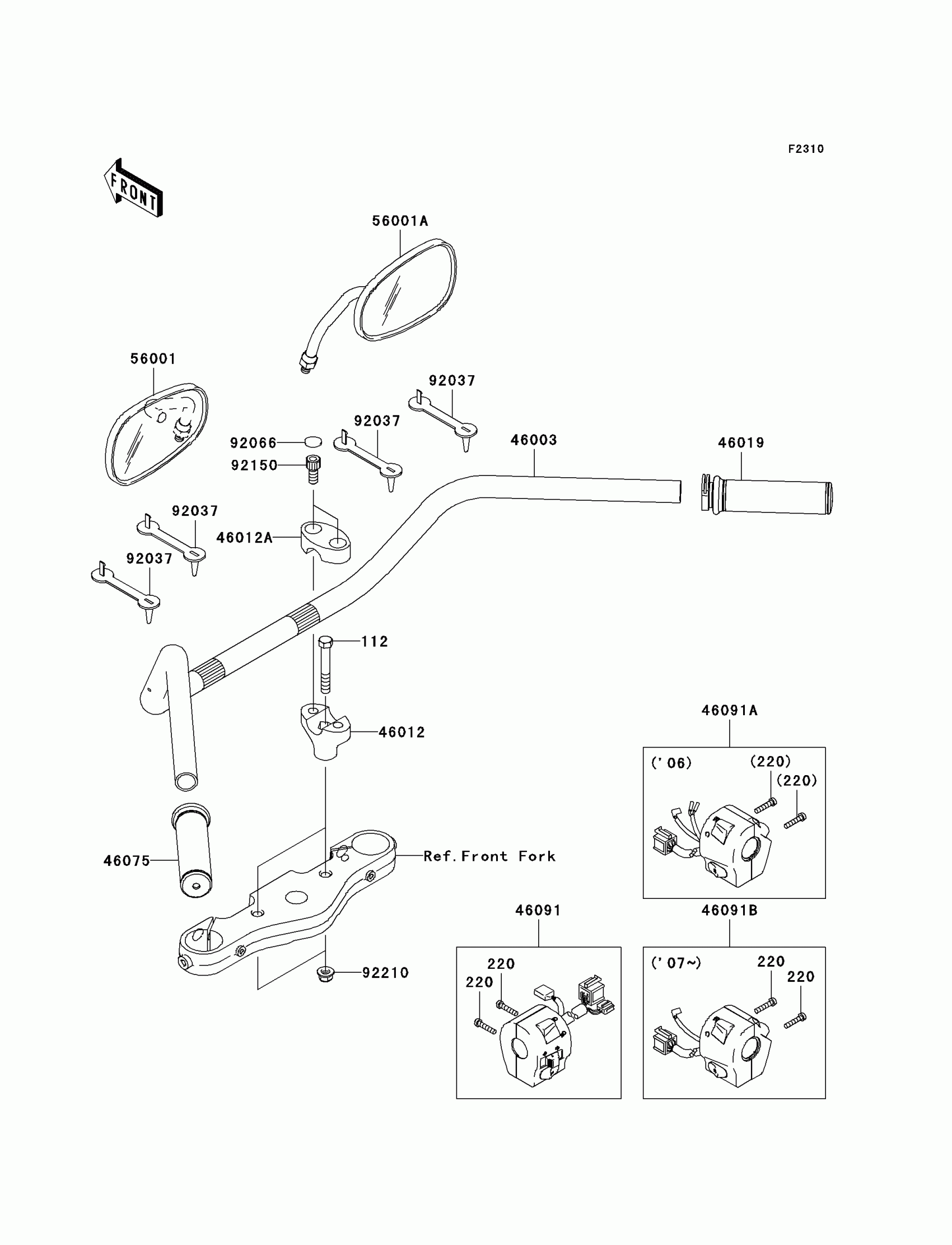

Kawasaki Vulcan® 1600 Classic Handlebar Diagram

Description

Price

112

BOLT-UPSET,10X65

112H1065

$7.20

220

SCREW-PAN-CROS,5X25

220R0525

$5.57

46003

HANDLE

46003-0011

$179.10

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$51.72

46019

GRIP-ASSY,THROTTLE

46019-1123

$71.25

46075

GRIP,LH

46075-1212

$29.46

46091

HOUSING-ASSY-CONTROL,LH

46091-0018

$330.39

46091B

HOUSING-ASSY-CONTROL,RH

46091-0078

$229.75

56001

MIRROR-ASSY,LH

56001-1592

$71.84

56001A

MIRROR-ASSY,RH

56001-1593

$71.84

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92066

PLUG

92066-1285

$7.77

92150

BOLT,SOCKET,10X23

92150-1942

$7.34

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
