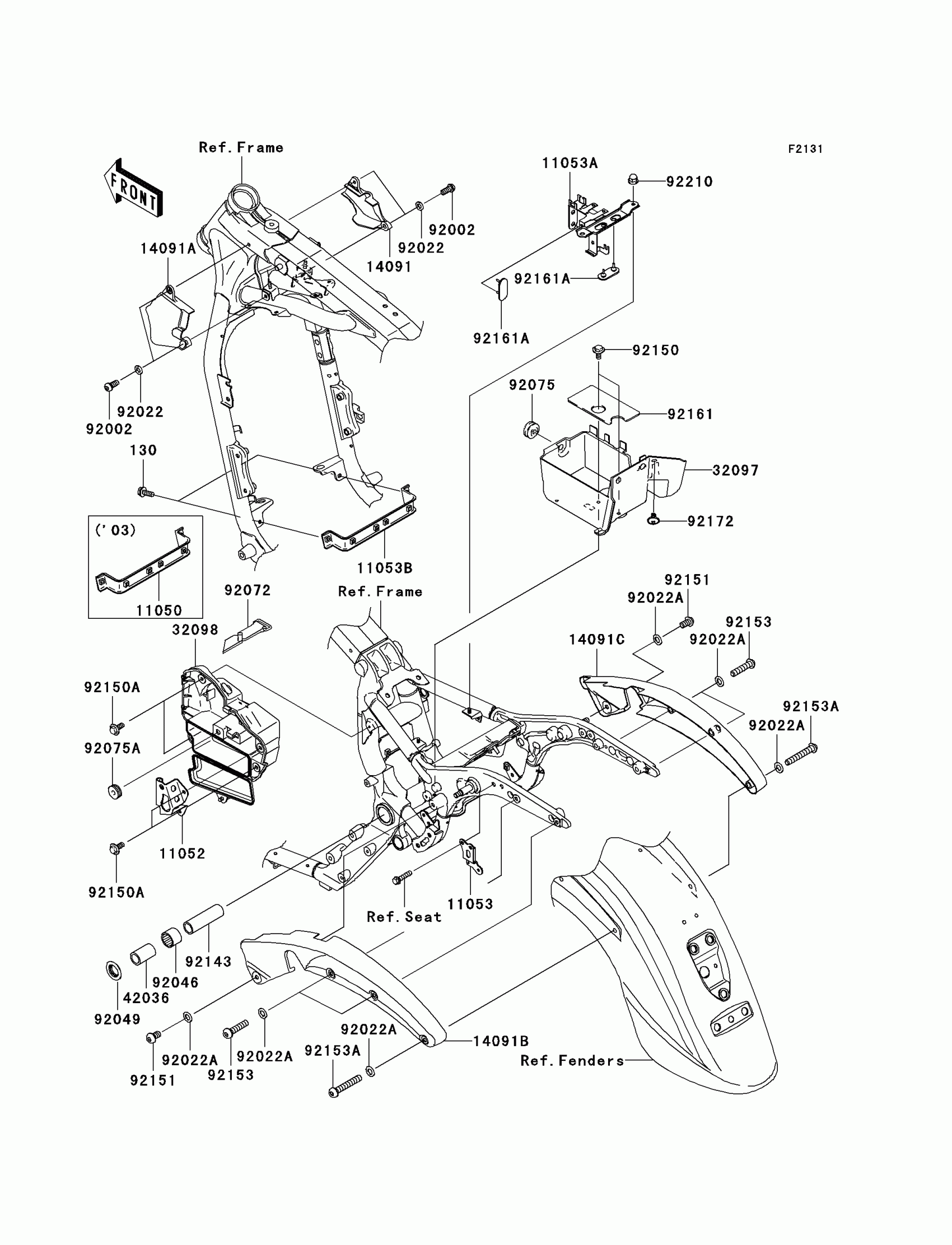

Kawasaki Vulcan 1600 Classic Frame Fittings(A1/A2) Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

11052

BRACKET,SIDE COVER LOCK

11052-1234

$22.66

11053

BRACKET,HELMET LOCK

11053-0143

$11.98

11053A

BRACKET,BATTERY BAND

11053-0289

$15.15

11053B

BRACKET,REGULATOR

11053-0434

$35.39

14091

COVER,HEAD PIPE,RH

14091-0054

$13.58

14091A

COVER,HEAD PIPE,LH

14091-0092

$13.58

14091B

COVER,FENDER,LH

14091-1544

$170.63

14091C

COVER,FENDER,RH

14091-1545

$170.63

32097

CASE-BATTERY

32097-1192

$43.14

32098

CASE-TOOL

32098-1137

$152.67

42036

SLEEVE,L=45

42036-1330

Unavailable

92002

BOLT,6X14

92002-1700

$4.71

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,PLAIN,8MM

92022-3043

$2.03

92046

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92072

BAND,L=470

92072-1331

$24.34

92075

DAMPER

92075-1067

$3.57

92075A

DAMPER

92075-1629

$3.81

92143

COLLAR,20.2X27X90

92143-1878

$36.69

92150

BOLT,6X14

92150-1133

$3.43

92150A

BOLT,6X16

92150-1198

$3.69

92151

BOLT,8X14

92151-1438

$1.76

92153

BOLT,SOCKET,8X35

92153-0419

$2.63

92153A

BOLT,SOCKET,8X50

92153-0420

$2.63

92161

DAMPER,BATTERY

92161-1097

$4.93

92161A

DAMPER,BATTERY BAND

92161-1214

$3.34

92172

SCREW,6X10

92172-0005

$1.73

92210

NUT,CAP,6MM

92210-0003

$0.60
