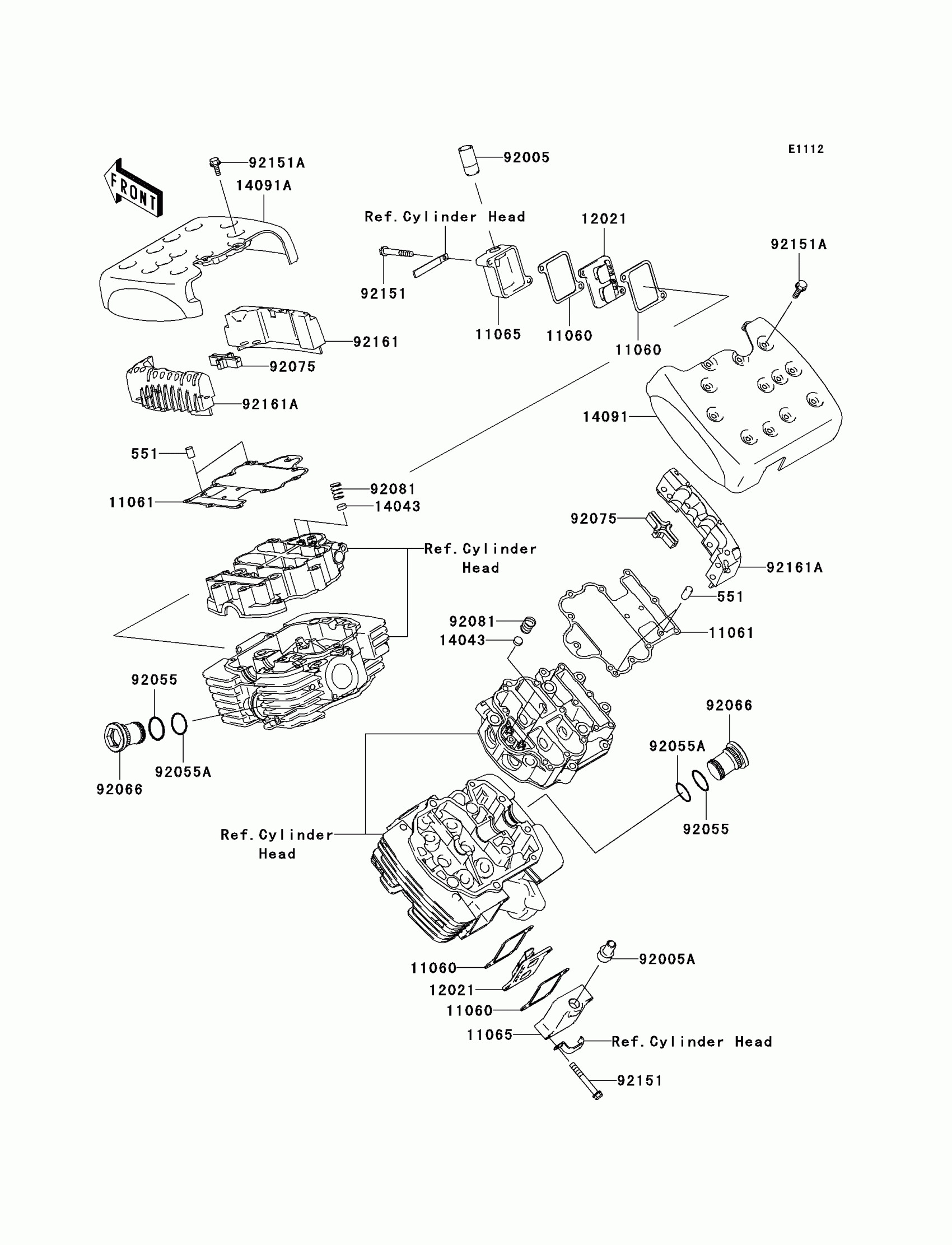

Kawasaki Vulcan® 1600 Classic Cylinder Head Cover Diagram

Description

Price

551

PIN-DOWEL,6X12

551A0612

$0.94

11060

GASKET,REED VALVE CAP

11060-1733

Unavailable

11061

GASKET,ROCKER CASE COVER

11061-1175

$21.25

11065

CAP,REED VALVE

11065-0031

$64.18

12021

VALVE-ASSY-REED

12021-1108

$126.71

14043

FILTER,OIL

14043-1056

$10.30

14091

COVER,ROCKER CASE,RR

14091-0005

$276.01

14091A

COVER,ROCKER CASE,FR

14091-0093

$276.01

92005

FITTING,REED VALVE

92005-1006

$9.80

92005A

FITTING

92005-1363

$13.16

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,27.7X1.9

92055-1272

$5.52

92066

PLUG,SLEEVE

92066-1445

$37.14

92075

DAMPER

92075-1998

$9.58

92081

SPRING,OIL FILTER

92081-1776

$6.10

92151

BOLT,6X45

92151-1059

$2.75

92151A

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92161

DAMPER

92161-0088

$66.88

92161A

DAMPER

92161-0089

$70.01
