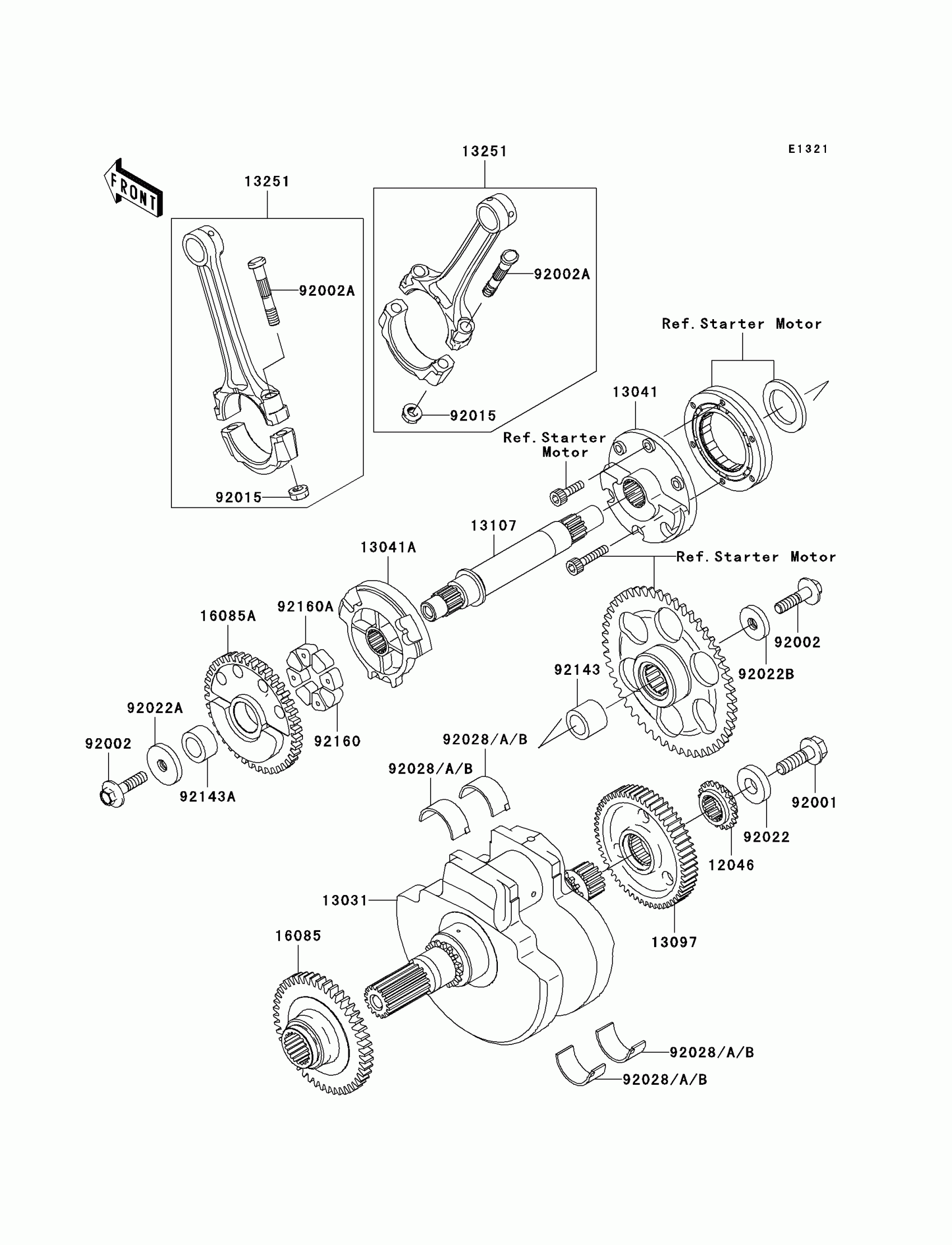

Kawasaki Vulcan 1600 Classic Crankshaft(A1) Diagram

Description

Price

12046

SPROCKET,WATER PUMP

12046-1103

$76.42

13031

CRANKSHAFT-COMP

13031-1510

$1,483.54

13041

BALANCER,RH

13041-1089

$156.42

13041A

BALANCER,LH

13041-1093

$193.41

13097

GEAR-PRIMARY SPUR,56T

13097-1369

$142.48

13107

SHAFT,BALANCER

13107-1524

$266.07

13251

ROD-ASSY-CONNECTING,D

13251-1147-DD

Unavailable

16085

GEAR,BALANCER,46T

16085-1307

$361.38

16085A

GEAR,BALANCER,46T

16085-1366

$379.09

92001

BOLT,FLANGED,12X40

92001-1146

$9.91

92002

BOLT,FLANGED,10X40

92002-1296

$10.65

92002A

BOLT,CONNECTING ROD

92002-1896

$11.07

92015

NUT,CONNECTING ROD

92015-1643

$9.05

92022

WASHER,12X40X6

92022-1904

$14.23

92022A

WASHER,10X40X6

92022-1905

$14.23

92022B

WASHER,10X33X6

92022-1906

$14.23

92028

BUSHING,CONNECTING ROD,BLUE

92028-1474

Unavailable

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1475

Unavailable

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1476

Unavailable

92143

COLLAR,20X30X24

92143-1093

$37.00

92143A

COLLAR,20X31X16

92143-1821

$38.20

92160

DAMPER

92160-1725

$9.21

92160A

DAMPER

92160-1726

$9.21
