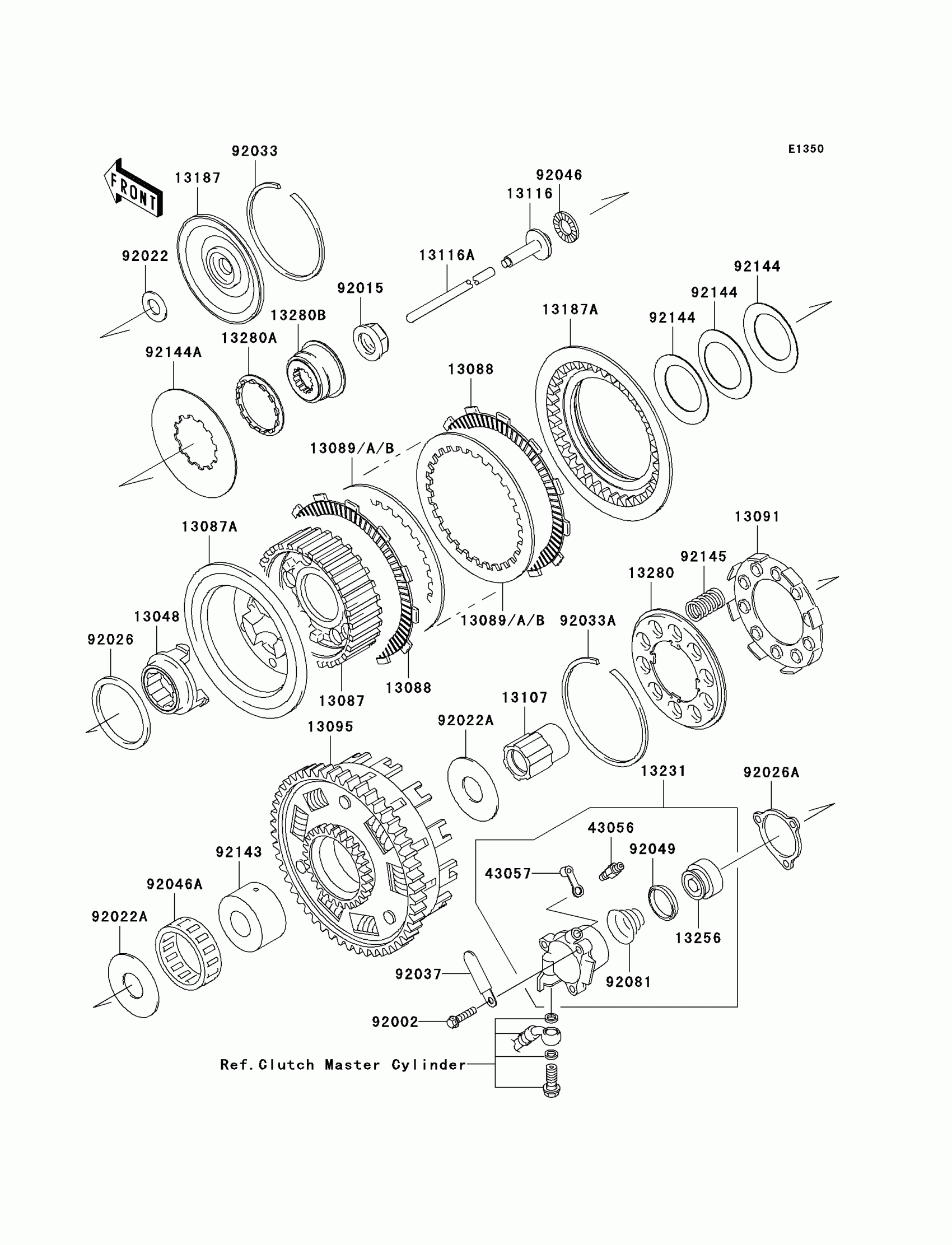

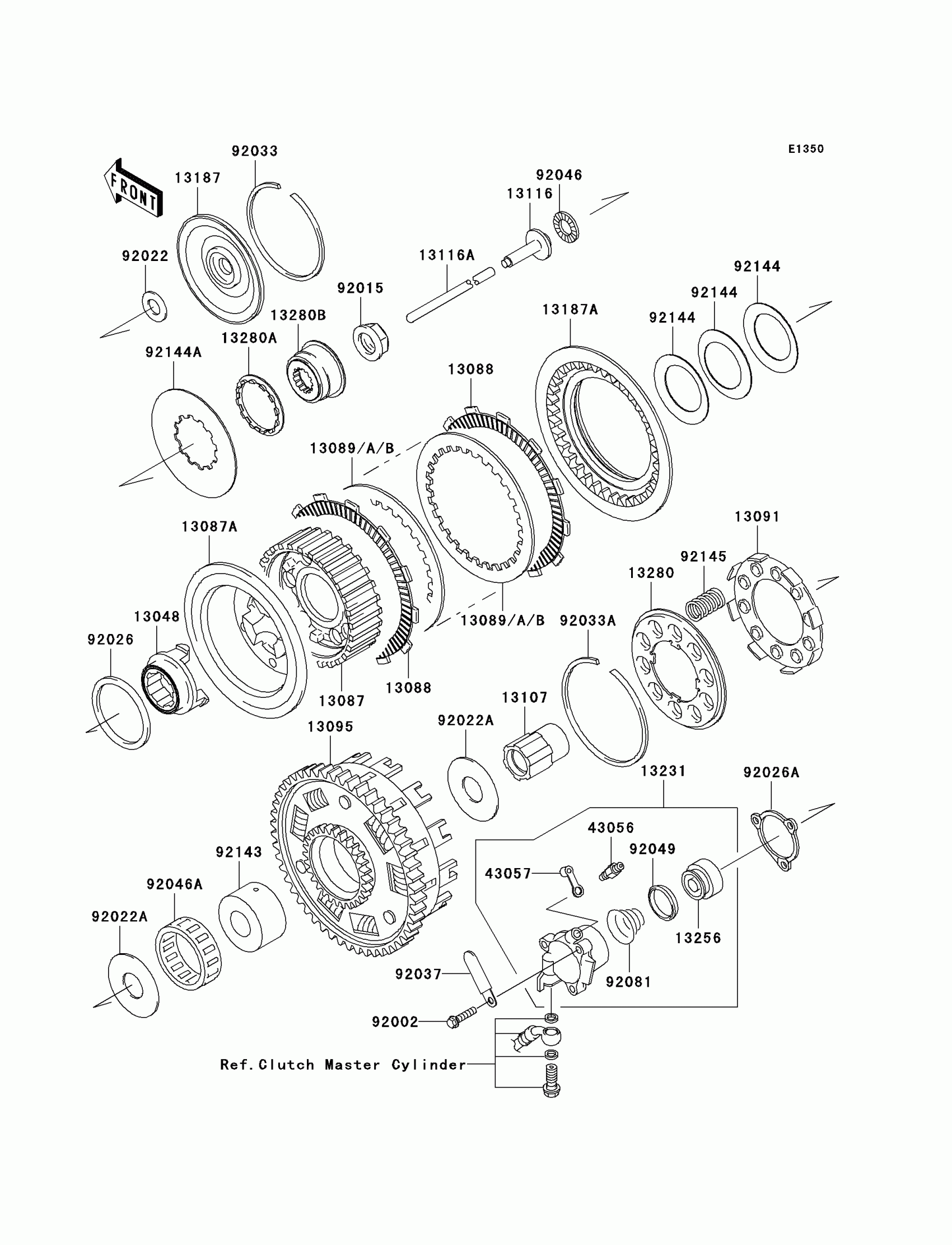

Kawasaki Vulcan® 1600 Classic Clutch Diagram
#
13048
CAM-DAMPER
13048-0015
$96.01
13087
HUB-CLUTCH,OUTER
13087-1103
$235.98
13087A
HUB-CLUTCH,INNER
13087-1110
$301.88
13088
PLATE-FRICTION
13088-1146
$17.67
13089
PLATE-CLUTCH,T=2.0
13089-1075
Unavailable
13089A
PLATE-CLUTCH,T=1.6
13089-1080
Unavailable
13089B
PLATE-CLUTCH,T=2.3
13089-1081
Unavailable
13091
HOLDER,DAMPER SPRING
13091-1495
$96.29
13095
HOUSING-COMP-CLUTCH
13095-1395
$932.46
13107
SHAFT,CLUTCH CAM DAMPER
13107-1237
$95.85
13116
ROD-PUSH,CLUTCH
13116-1102
$36.78
13116A
ROD-PUSH
13116-1132
$29.70
13187
PLATE-CLUTCH OPERATING
13187-1063
$47.44
13187A
PLATE-CLUTCH OPERATING
13187-1066
$93.28
13231
RELEASE-ASSY-CLUTCH
13231-1071
$162.39
13256
PISTON
13256-1052
$59.07
13280
HOLDER,DAMPER SPRING
13280-1303
$102.57
13280A
HOLDER
13280-1306
$102.57
13280B
HOLDER
13280-1307
$55.40
43056
BREATHER
43056-1055
Unavailable
43057
CAP-BREATHER
43057-1001
$4.91
92002
BOLT,6X25
92002-1612
$5.05
92015
NUT,20MM
92015-1461
$24.15
92022
WASHER,15.1X29X1.0
92022-1463
$5.00
92022A
WASHER,25.3X56X2.0
92022-1857
$14.23
92026
SPACER,59X70X3.5
92026-1043
$27.73
92026A
SPACER,CLUTCH RELEASE
92026-1263
$16.69
92033
RING-SNAP
92033-1238
$15.24
92033A
RING-SNAP
92033-1239
$10.53
92037
CLAMP,L=45
92037-1539
$5.00
92046
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92046A
BEARING-NEEDLE,RS40/29A
92046-1175
$38.70
92049
SEAL-OIL,PISTON
92049-1165
$19.64
92081
SPRING,CLUTCH RELEASE
92081-1644
$8.51
92143
COLLAR,INPUT SHAFT
92143-1076
$50.75
92144
SPRING,LIMITER
92144-1188
$12.96
92144A
SPRING,CLUTCH
92144-1295
$35.90
92145
SPRING
92145-1243
$9.38
