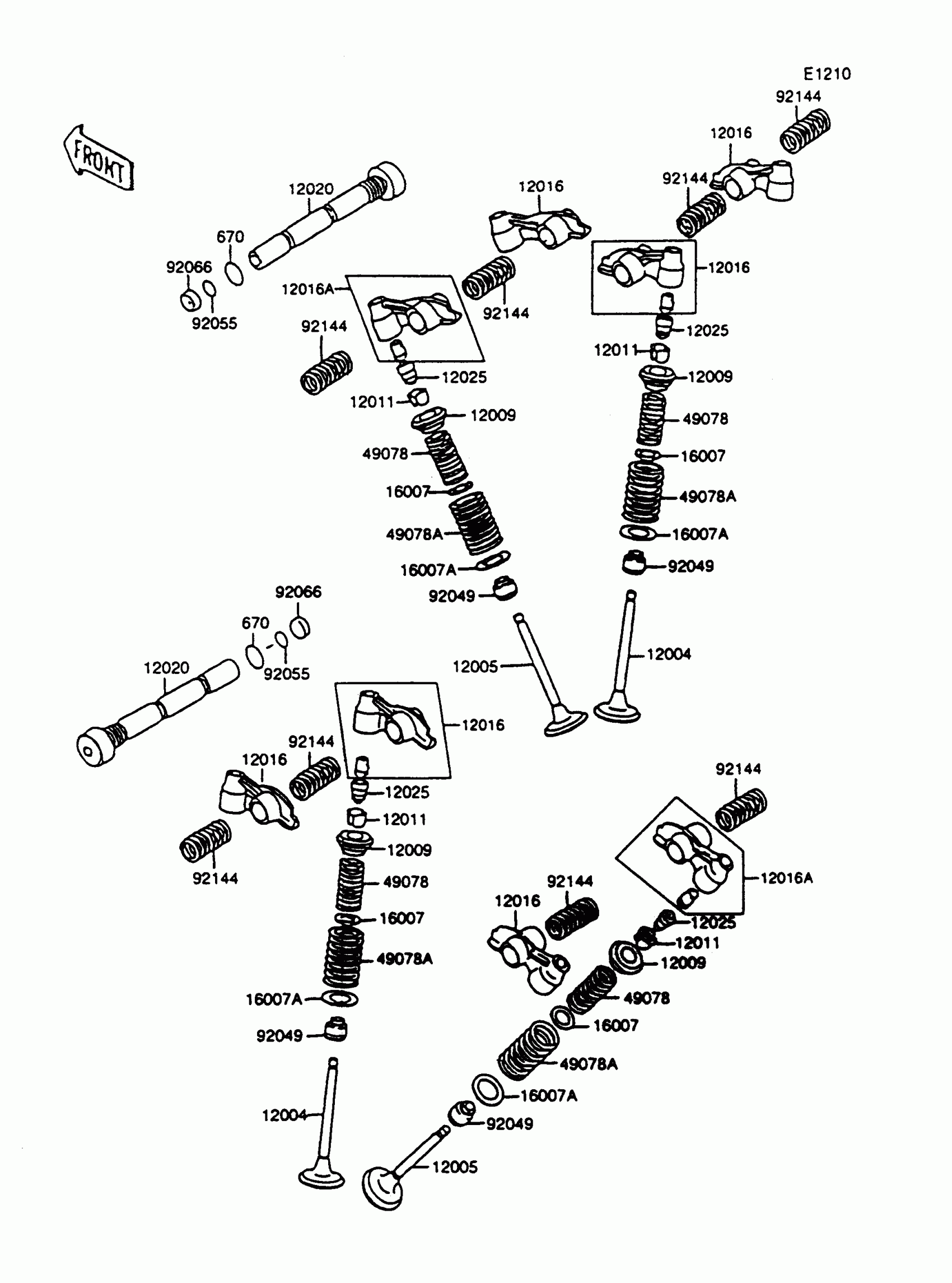

Kawasaki Vulcan 1500 Valve(s) Diagram

Description

Price

670

O RING,20MM

670B2020

$1.22

12004

VALVE-INTAKE

12004-1072

$60.92

12005

VALVE-EXHAUST

12005-1268

$89.45

12009

RETAINER-VALVE SPRING

12009-005

$13.08

12011

COLLET,RETAINER

12011-004

$5.46

12016

ARM-ROCKER

12016-1112

$129.63

12016A

ARM-ROCKER

12016-1113

$138.50

12020

SHAFT-ROCKER

12020-1061

$86.95

12025

ADJUSTER-LASH

12025-1054

Unavailable

16007

SEAT-SPRING,12X20X0.5

16007-1031

$5.54

16007A

SEAT-SPRING,21X29.5X0.5

16007-1137

$5.54

49078

SPRING-ENGINE VALVE,INNER

49078-1084

Unavailable

49078A

SPRING-ENGINE VALVE,OUTER

49078-1085

Unavailable

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

92055

RING-O,12X1.5

92055-025

$4.69

92066

PLUG

92066-1198

$4.65

92144

SPRING,ROCKER ARM

92144-1221

$4.74
