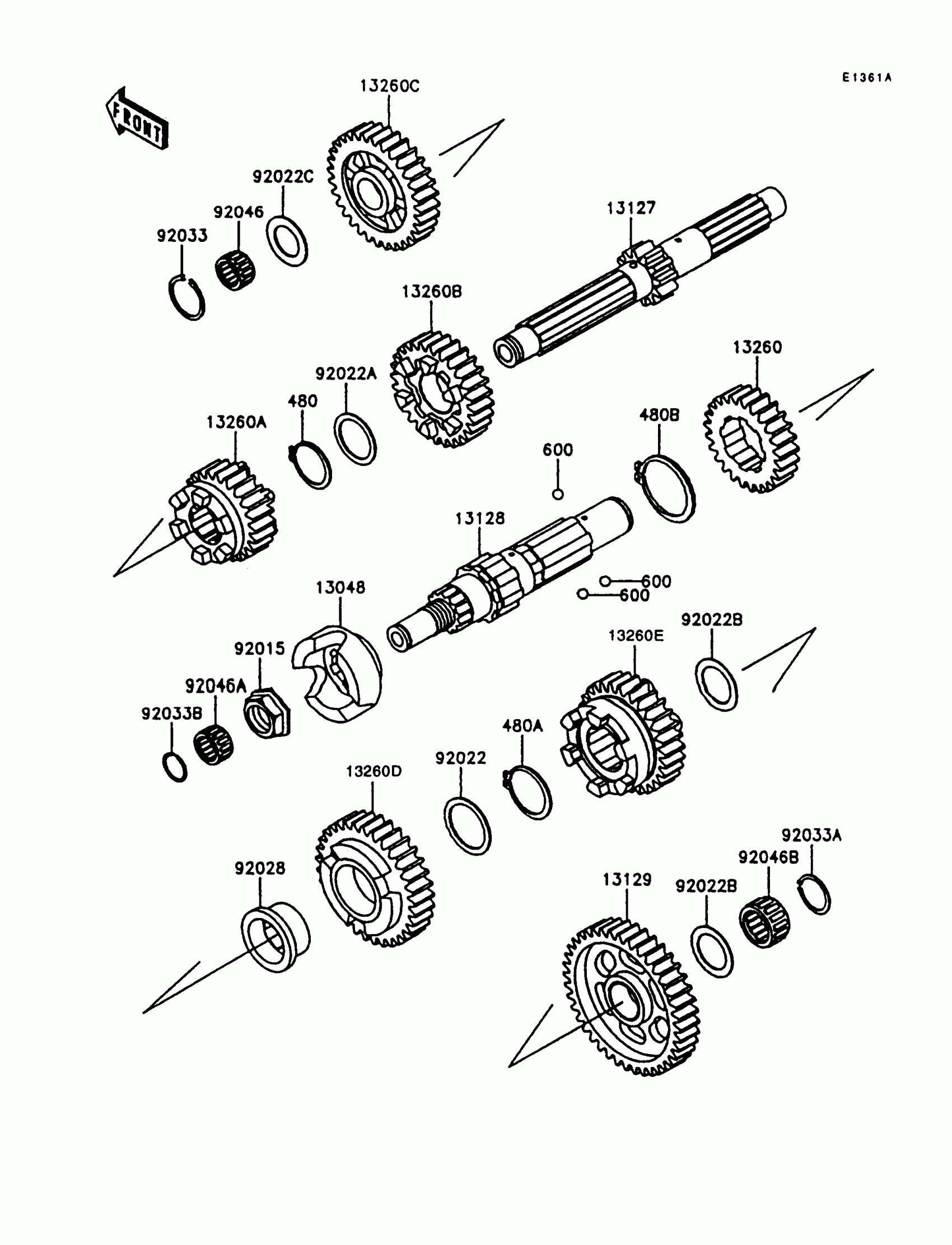

Kawasaki Vulcan 1500 Transmission(VN1500-A11/A12/A13) Diagram

Description

Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

480B

CIRCLIP

480J4000

$6.57

600

BALL-STEEL,5/32

600A0500

$0.81

13048

CAM-DAMPER

13048-1082

Unavailable

13127

SHAFT-TRANSMISSION INPUT,16T

13127-1155

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1144

Unavailable

13129

GEAR,OUTPUT LOW,40T

13129-1842

$208.46

13260

GEAR,OUTPUT 4TH,25T

13260-1584

Unavailable

13260A

GEAR,INPUT 2ND,24T

13260-1586

Unavailable

13260B

GEAR,INPUT 3RD,28T

13260-1587

$170.73

13260C

GEAR,INPUT 4TH,32T

13260-1588

Unavailable

13260D

GEAR,OUTPUT 2ND,33T

13260-1652

$187.29

13260E

GEAR,OUTPUT 3RD,29T

13260-1653

$165.21

92015

NUT,20MM

92015-1610

$13.08

92022

WASHER,32X40X1.6

92022-1693

$7.62

92022A

WASHER,INPUT,3RD,LH

92022-1854

$8.51

92022B

WASHER,25.5X36X1.0

92022-1855

$9.89

92022C

WASHER,22.3X35X1.6

92022-212

$9.91

92028

BUSHING,OUTPUT,2ND

92028-1478

$49.16

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,25MM

92033-1172

$5.08

92033B

RING-SNAP

92033-1208

$5.90

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92046A

BEARING-NEEDLE,K182420V1

92046-1154

$25.88

92046B

BEARING-NEEDLE,RS25/18

92046-1166

Unavailable
