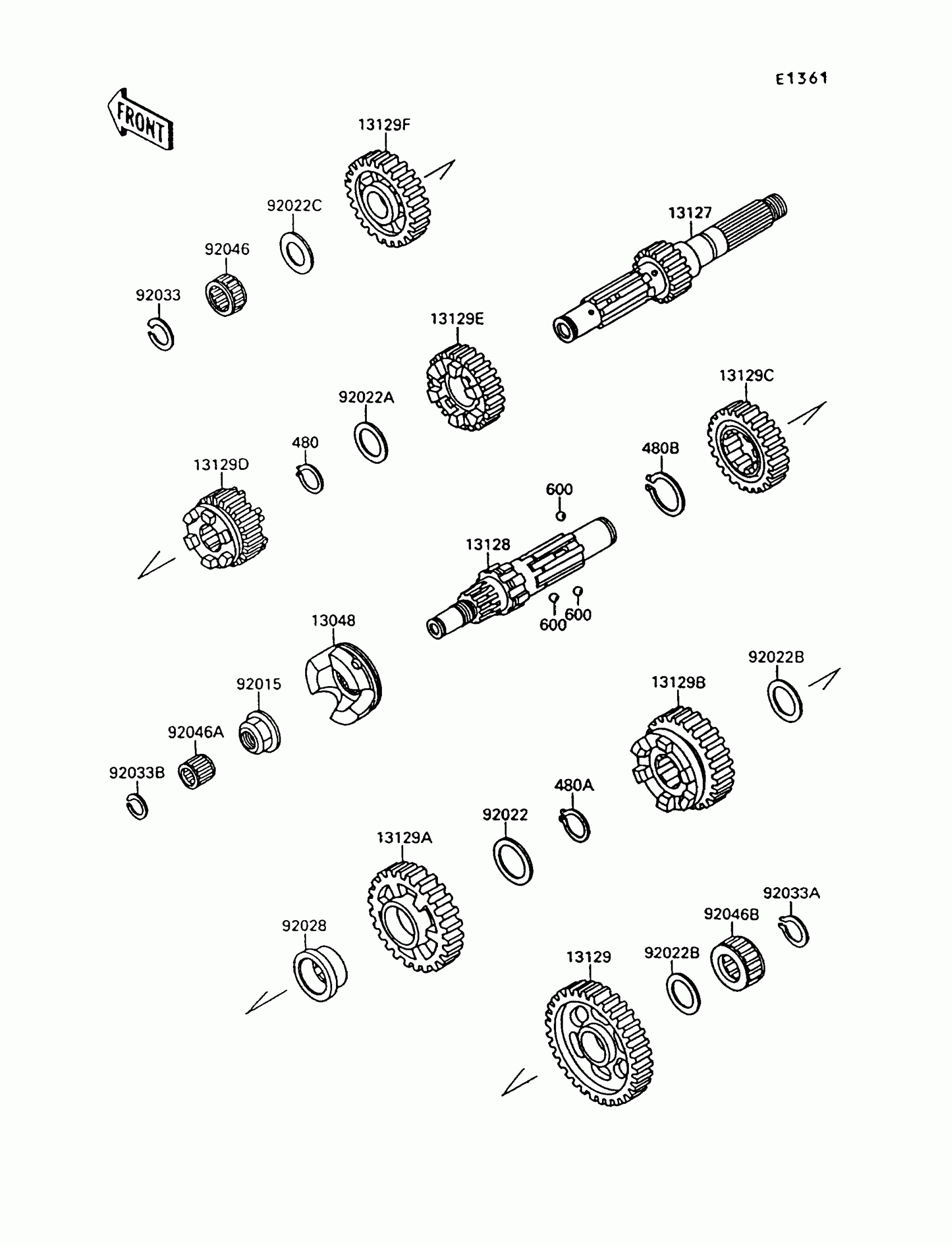

Kawasaki Vulcan 1500 Transmission(VN1500-A10) Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

480B

CIRCLIP

480J4000

$5.71

600

BALL-STEEL,5/32

600A0500

$0.68

13048

CAM-DAMPER

13048-1073

Unavailable

13127

SHAFT-TRANSMISSION INPUT,16T

13127-1155

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1144

Unavailable

13129

GEAR,OUTPUT LOW,40T

13129-1842

$212.86

13129A

GEAR,OUTPUT 2ND,35T

13129-1843

Unavailable

13129B

GEAR,OUTPUT 3RD,31T

13129-1844

Unavailable

13129C

GEAR,OUTPUT 4TH,28T

13129-1845

Unavailable

13129D

GEAR,INPUT 2ND,22T

13129-1905

Unavailable

13129E

GEAR,INPUT 3RD,26T

13129-1906

Unavailable

13129F

GEAR,INPUT 4TH,29T

13129-1907

Unavailable

92015

NUT,20MM

92015-1610

$13.00

92022

WASHER,32X40X1.6

92022-1693

$7.49

92022A

WASHER,INPUT,3RD,LH

92022-1854

$8.31

92022B

WASHER,25.5X36X1.0

92022-1855

$9.56

92022C

WASHER,22.3X35X1.6

92022-212

$9.58

92028

BUSHING,OUTPUT,2ND

92028-1478

$50.11

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP,25MM

92033-1172

$3.71

92033B

RING-SNAP

92033-1208

$5.15

92046

BEARING-NEEDLE,FWF-223014

92046-031

$15.89

92046A

BEARING-NEEDLE,K182420V1

92046-1154

$24.31

92046B

BEARING-NEEDLE,RS25/18

92046-1166

Unavailable
