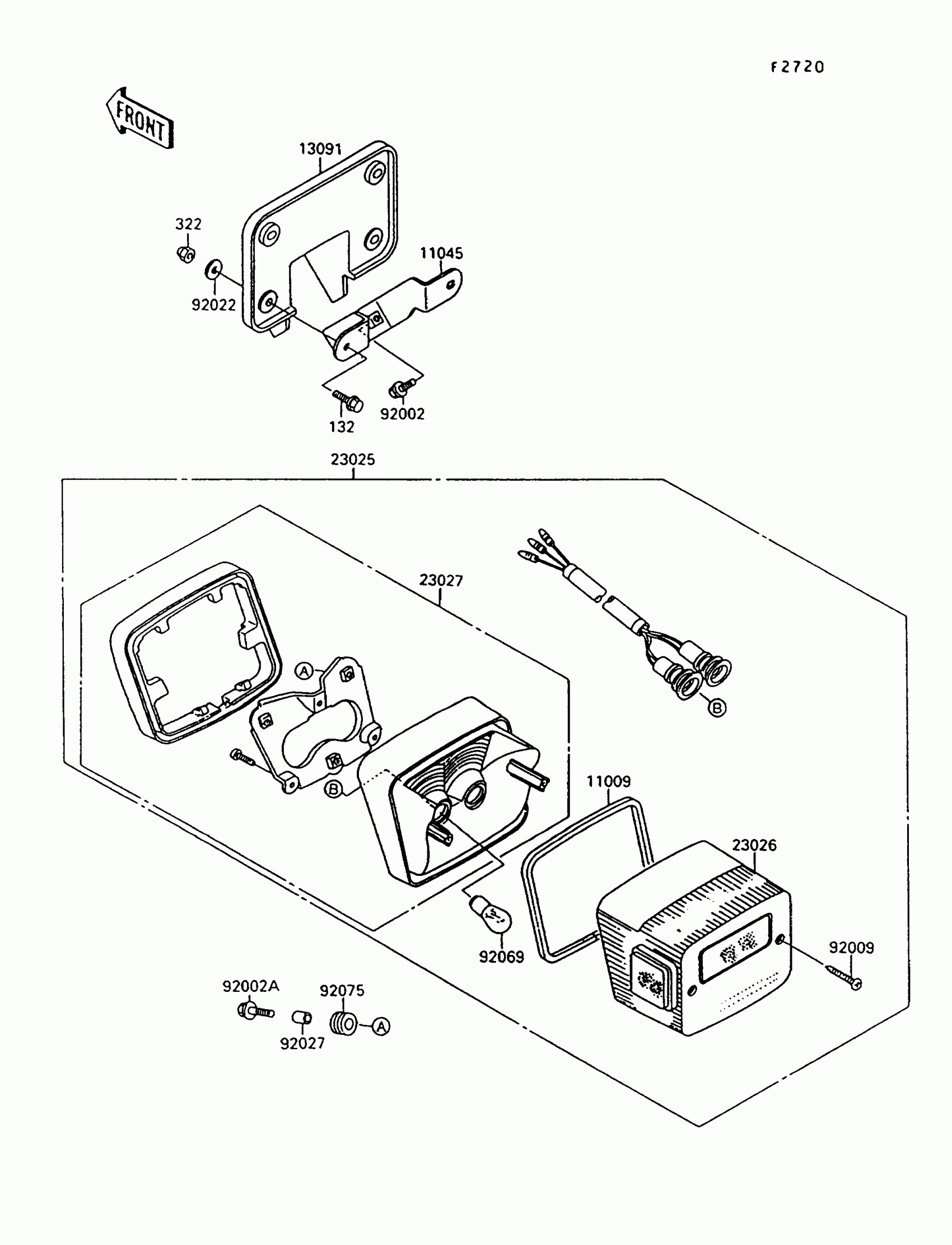

Kawasaki Vulcan 1500 Taillight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132J0614

$2.33

322

NUT-CAP,6MM,BLACK

322C0600

$2.76

11009

GASKET,TAIL LAMP LENS

11009-1660

$9.13

11045

BRACKET,LICENSE PLATE

11045-1582

Unavailable

13091

HOLDER,LICENSE PLATE

13091-1480

Unavailable

23025

LAMP-TAIL

23025-1165

Unavailable

23026

LENS,TAIL LAMP

23026-1087

$49.90

23027

BODY-COMP-TAIL LAMP

23027-1084

Unavailable

92002

BOLT,6X14

92002-1218

$4.11

92002A

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,TAPPING,4X25

92009-1069

$3.92

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 27/8W

92069-059

$8.12

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69
