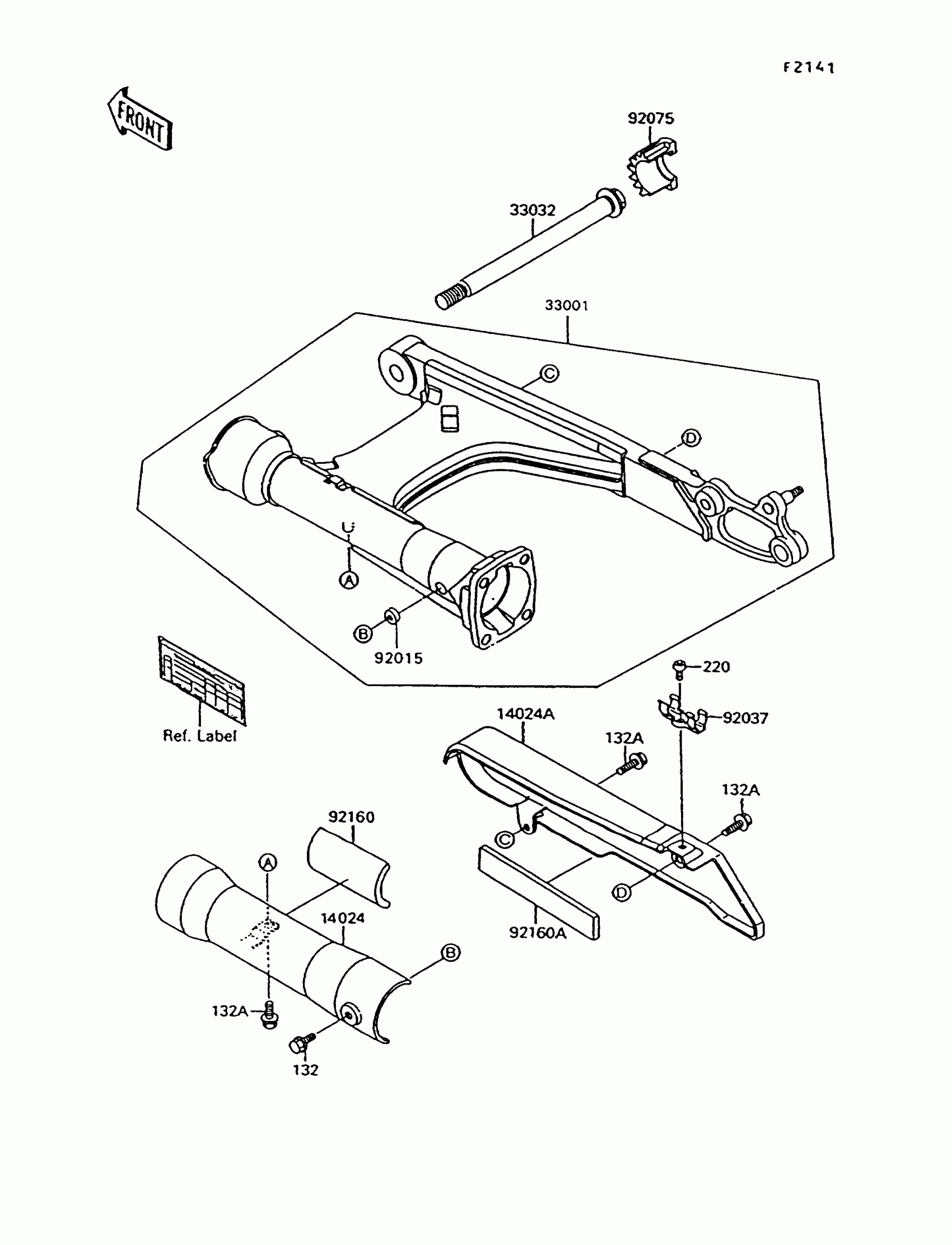

Kawasaki Vulcan 1500 Swingarm Diagram

#

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69

132A

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

220

SCREW-PAN-CROS,5X8

220E0508

$3.45

14024

COVER,SWING ARM,LH

14024-1410

Unavailable

14024A

COVER,SWING ARM,RH

14024-1411

Unavailable

33001

ARM-COMP-SWING,SILVER NO.25

33001-1453-CE

Unavailable

33032

SHAFT-SWING ARM

33032-1131

Unavailable

92015

NUT,POP,6MM,L=14

92015-1629

Unavailable

92037

CLAMP

92037-1879

Unavailable

92075

DAMPER,SWING ARM COVER

92075-1917

Unavailable

92160

DAMPER

92160-1004

Unavailable

92160A

DAMPER,SWING ARM COVER,RH

92160-1005

Unavailable
