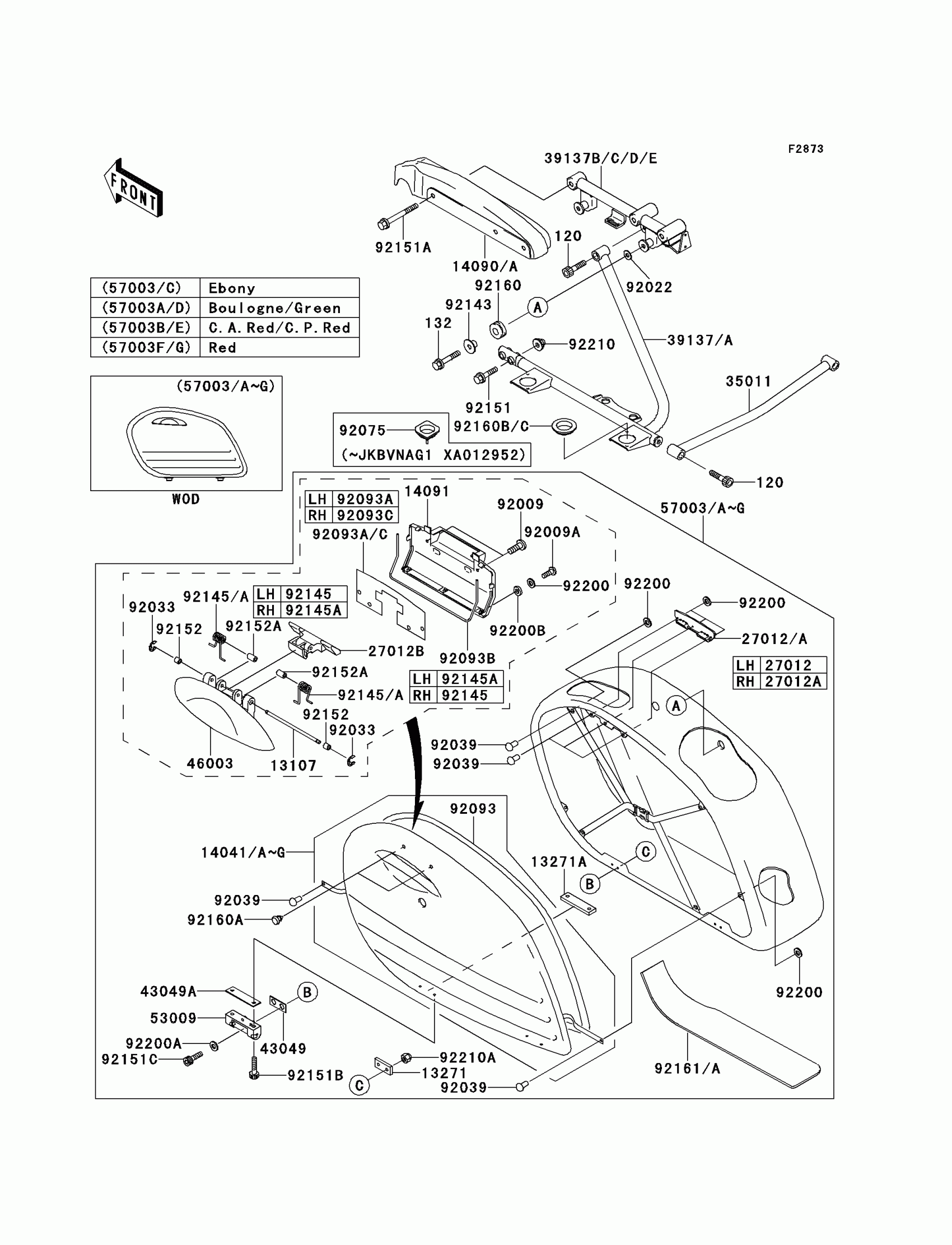

Kawasaki Vulcan 1500 Nomad Saddlebags Diagram

#

Description
Price

13107

SHAFT

13107-1403

$4.69

13271

PLATE

13271-1146

$4.18

13271A

PLATE

13271-1147

$7.95

14041B

COVER-COMP,SIDE BAG,LH,L.V.RED

14041-1130-P5

Unavailable

14041F

COVER-COMP,SIDE BAG,RH,L.V.RED

14041-1131-P5

Unavailable

14090

COVER,RR FENDER,LH

14090-1894

Unavailable

14090A

COVER,RR FENDER,RH

14090-1895

$83.42

14091

COVER,LID MAINTENANCE

14091-1069

$19.32

27012

HOOK,LOCK PLATE,LH

27012-1571

$14.80

27012A

HOOK,LOCK PLATE,RH

27012-1572

$14.80

27012B

HOOK,HANDLE

27012-1575

$19.55

35011

STAY,SIDE BAG

35011-1896

$74.67

39137

STAY-COMP,SIDE BAG,LH,LWR

39137-1067

$165.31

39137A

STAY-COMP,SIDE BAG,RH,LWR

39137-1068

$160.68

39137D

STAY-COMP,SIDE BAG,LH,UPP

39137-1075

$182.18

39137E

STAY-COMP,SIDE BAG,RH,UPP

39137-1076

$182.18

43049

PACKING

43049-1084

$2.44

43049A

PACKING

43049-1086

$2.44

46003

HANDLE,SIDE BAG

46003-1505

$187.83

53009

HINGE,SIDE BAG

53009-1104

$25.83

57003F

BAG-ASSY,LH,L.V.RED

57003-1084-P5

Unavailable

57003G

BAG-ASSY,RH,L.V.RED

57003-1085-P5

Unavailable

92009

SCREW,TAPPING,4X12

92009-1870

$1.59

92009A

SCREW,TAPPING,3X8

92009-1871

$1.59

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92033

RING-SNAP

92033-1300

$1.58

120

BOLT-SOCKET,8X35

120S0835

$4.44

132

BOLT-FLANGED-SMALL

132J0845

$5.66

92039

RIVET

92039-1236

$2.46

92093

SEAL,SIDE BAG COVER

92093-1486

$12.20

92093A

SEAL,SIDE BAG,LH

92093-1487

$6.20

92093B

SEAL

92093-1488

$3.56

92093C

SEAL,SIDE BAG,RH

92093-1489

$6.20

92143

COLLAR

92143-1450

$9.91

92145

SPRING

92145-1175

$7.88

92145A

SPRING

92145-1200

$7.88

92151

BOLT,FLANGED,8X35

92151-1402

$2.46

92151A

BOLT,FLANGED,8X75

92151-1403

$4.90

92151B

BOLT,SOCKET,4X22

92151-1436

$2.46

92151C

BOLT,SOCKET,4X18

92151-1437

$2.46

92152

COLLAR

92152-1121

$3.92

92152A

COLLAR

92152-1122

$3.60

92160

DAMPER

92160-1012

$5.52

92160A

DAMPER

92160-1976

$2.46

92160B

DAMPER

92160-1981

$10.76

92161

DAMPER,SIDE BAG,LH

92161-1171

$37.46

92161A

DAMPER,SIDE BAG,RH

92161-1176

$37.46

92200

WASHER,3MM

92200-1442

$1.59

92200A

WASHER,4MM

92200-1443

$1.59

92200B

WASHER,3MM

92200-1444

$1.59

92210

NUT,CAP,8MM

92210-1161

$2.48

92210A

NUT,CAP,4MM

92210-1168

$1.83
