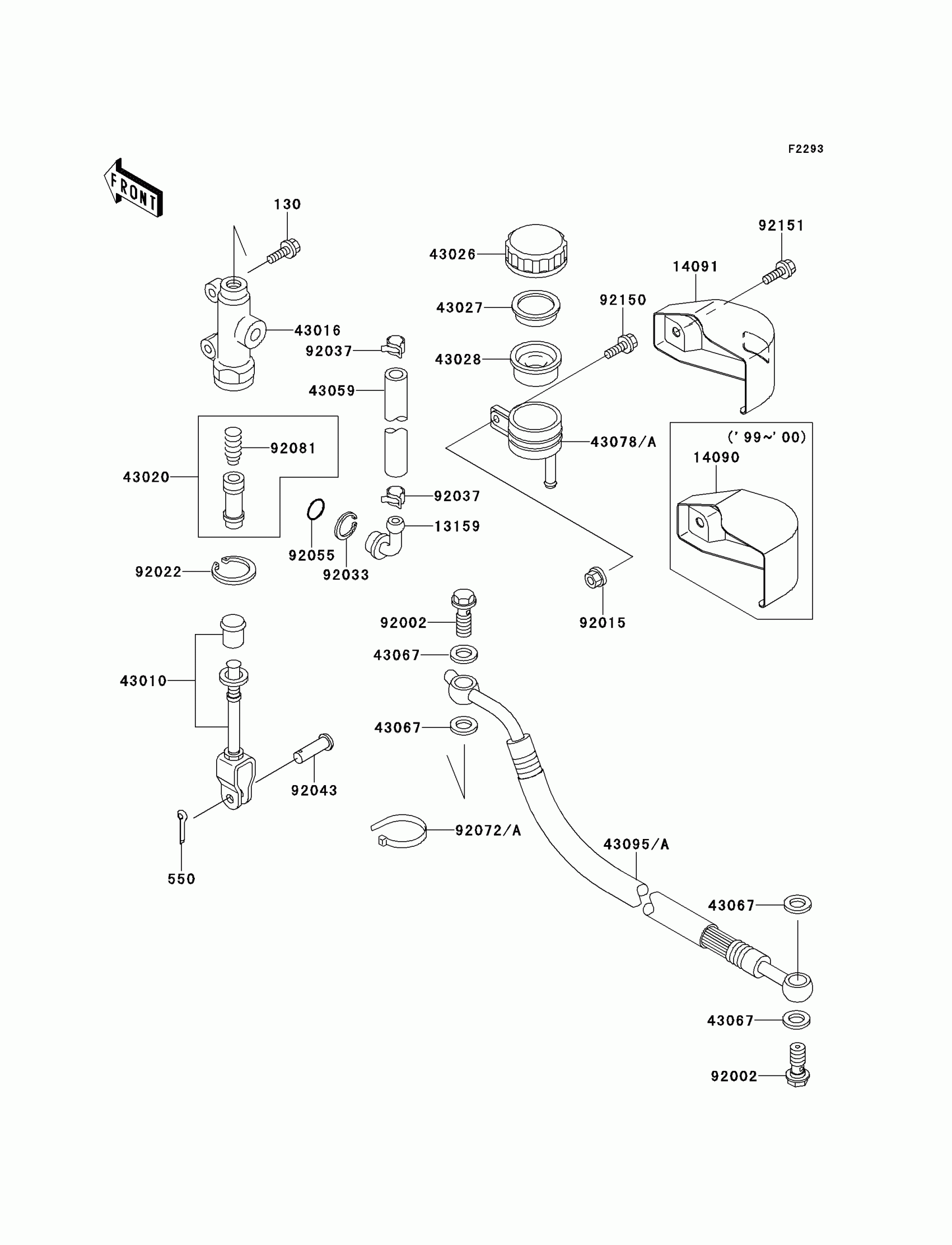

Kawasaki Vulcan 1500 Nomad Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

$4.15

550

PIN COTTER 2.0X15

550D2015

$1.04

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

14091

COVER,RESERVOIR

14091-1341

$76.29

43010

ROD-ASSY-BRAKE

43010-1055

$69.04

43016

CYLINDER-MASTER,RR

43016-1122

$194.58

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1318

$30.61

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078A

RESERVOIR,RR MASTER CYLINDER

43078-1178

$26.19

43095A

HOSE-BRAKE,RR

43095-1193

$125.43

92002

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT

92015-1700

$8.58

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92072A

BAND,L=365

92072-1197

$7.84

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,6X25

92150-1829

$4.31

92151

BOLT,FLANGED,6X12

92151-1401

$2.00
