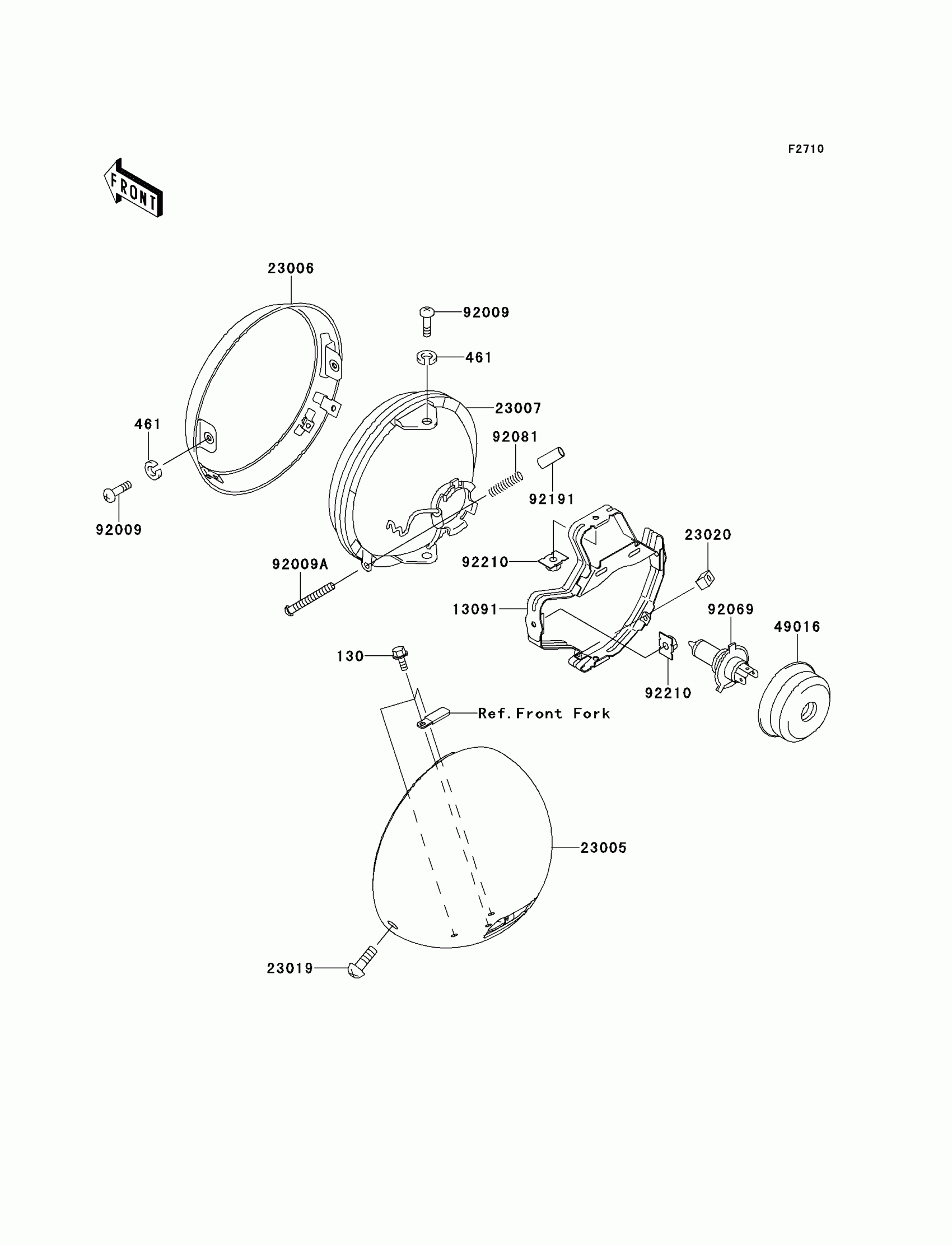

Kawasaki Vulcan 1500 Nomad Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130H0614

Unavailable

461

WASHER SPRING 5MM

461F0500

$0.69

13091

HOLDER,HEAD LAMP

13091-1948

$56.16

23005

BODY-COMP-HEAD LAMP

23005-1171

$312.48

23006

RIM-LAMP

23006-1074

$101.33

23007

LENS-COMP,HEAD LAMP

23007-1338

$139.73

23019

SCREW,SPECIAL,5X14

23019-024

$2.12

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

49016

COVER-SEAL,HEAD LAMP

49016-1046

$12.40

92009

SCREW,5X12

92009-1296

$3.92

92009A

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.91

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92081

SPRING,HEAD LAMP LENS

92081-1103

$4.61

92191

TUBE,3.5X5.5X19

92191-1217

$2.44

92210

NUT,SPECIAL,5MM

92210-1060

$2.46
