2001 Kawasaki Vulcan 1500 Nomad Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

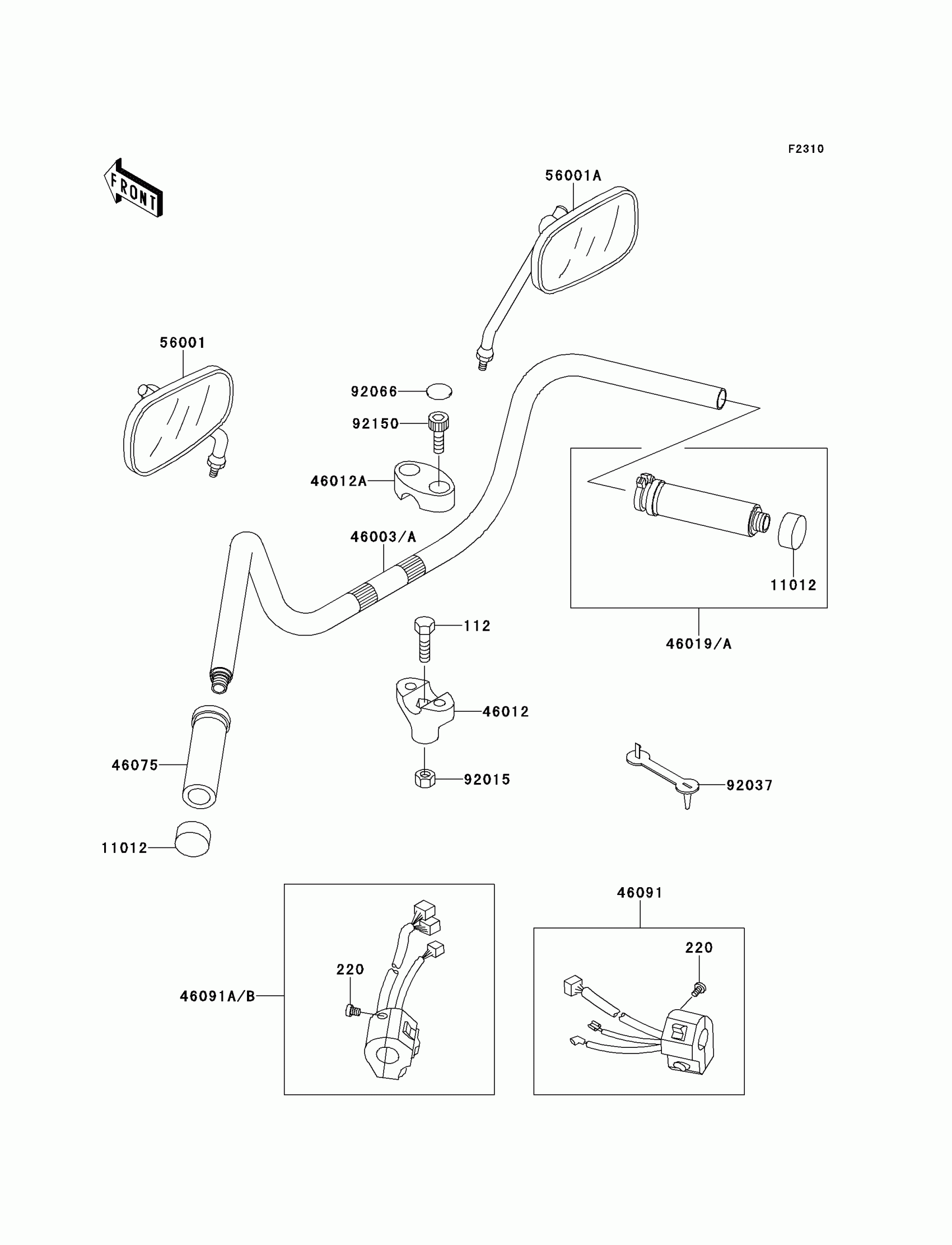

2001 Kawasaki Vulcan 1500 Nomad Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,10X65

112H1065

1
Out of stock

220

SCREW-PAN-CROSS

220E0525

1

$2.15

In stock

11012

CAP,GRIP END

11012-1975

1

$19.19

In stock

46003A

HANDLE

46003-1544

1

$182.58

In stock

46012

HOLDER-HANDLE,LWR

46012-1272

1
Out of stock

46012A

HOLDER-HANDLE,UPP

46012-1273

1

$52.72

In stock

46019A

GRIP-ASSY,THROTTLE

46019-1109

1

$63.56

In stock

46075

GRIP,LH

46075-1074

1

$22.67

In stock

46091

1

$268.89

In stock

46091B

HOUSING-ASSY-CONTROL,LH

46091-1788

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1503

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1504

1

$69.66

In stock

92015

1

$7.86

In stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92066

PLUG

92066-1285

1

$6.18

In stock

92150

BOLT,SOCKET,10X23

92150-1942

1

$5.84

In stock
