2001 Kawasaki Vulcan 1500 Nomad Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

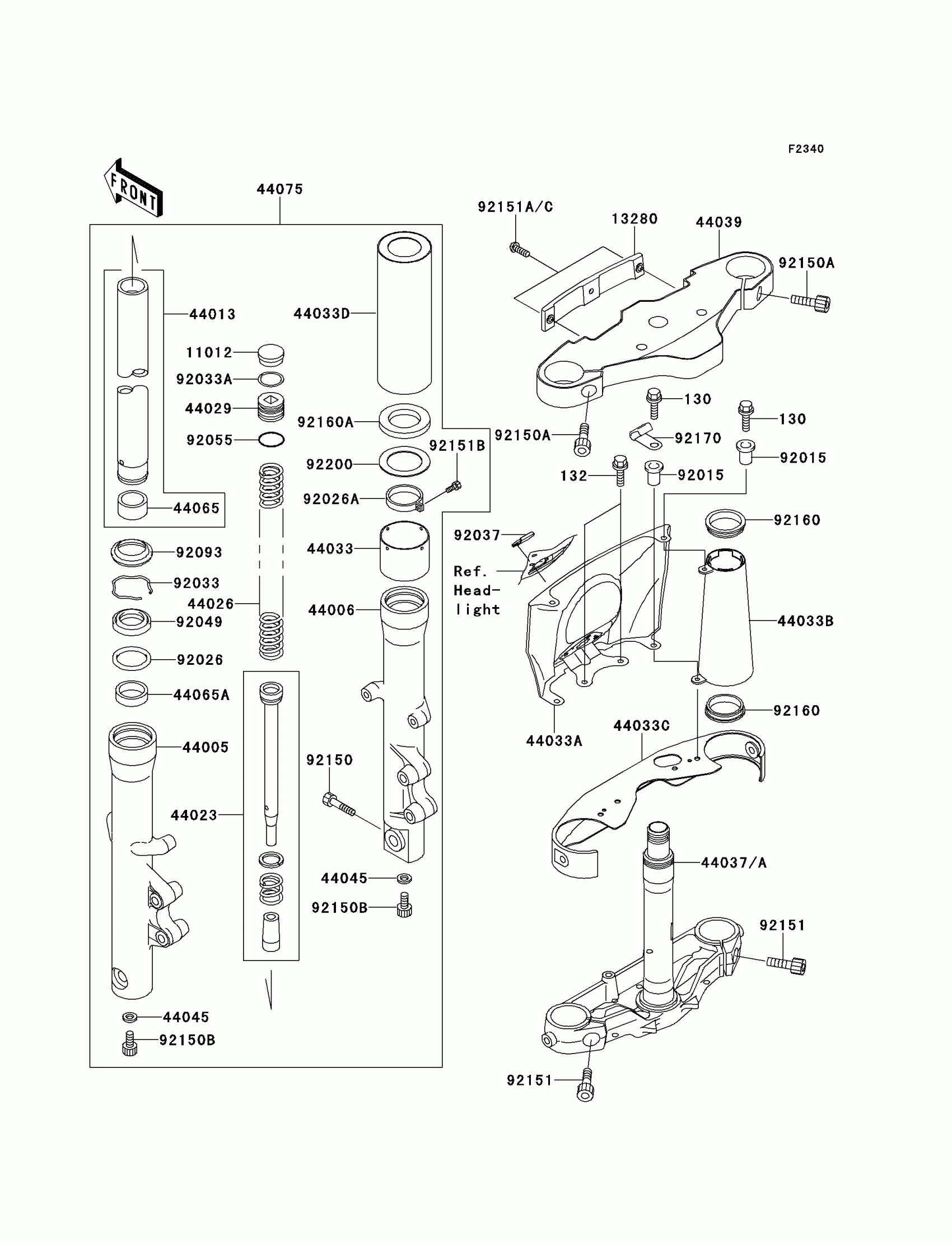

2001 Kawasaki Vulcan 1500 Nomad Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,FORK TOP

11012-1618

1

$23.07

In stock

13280

HOLDER

13280-1070

1

$49.85

In stock

44005

1

$500.63

In stock

44006

1

$500.63

In stock

44013

PIPE-FORK INNER

44013-1450

1
Out of stock

44023

CYLINDER-SET-FORK

44023-1129

1

$137.50

In stock

44026

SPRING-FRONT FORK

44026-1676

1
Out of stock

44029

SEAT-FORK SPRING

44029-1125

1

$44.89

In stock

44033

COVER-FORK

44033-1223

1

$22.85

In stock

44033A

COVER-FORK,CNT

44033-1228

1

$102.69

In stock

44033B

COVER-FORK,UPP

44033-1229

1

$122.39

In stock

44033C

COVER-FORK,LWR

44033-1230

1

$179.00

In stock

44033D

COVER-FORK

44033-1236

1

$94.67

In stock

44037A

HOLDER-FORK UNDER

44037-1410

1

$490.64

In stock

44039

HOLDER-FORK UPPER

44039-1279

1
Out of stock

44045

1

$4.88

In stock

44065

1

$20.08

In stock

44065A

BUSHING-FRONT FORK

44065-1127

1

$21.03

In stock

44075

DAMPER-SET-FORK

44075-1073

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92026A

SPACER

92026-1515

1

$14.97

In stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92033A

1

$5.40

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92049

SEAL-OIL,FORK

92049-1363

1
Out of stock

92055

RING-O,SPRING SEAT

92055-1363

1

$5.84

In stock

92093

SEAL,FORK

92093-1268

1

$23.35

In stock

92150

BOLT,SOCKET,10X40

92150-1029

1
Out of stock

92150A

BOLT,SOCKET,8X30

92150-1031

1
Out of stock

92150B

BOLT,SOCKET,8X18

92150-1432

1

$7.86

In stock

92151

BOLT,SOCKET,10X25

92151-1083

1

$9.56

In stock

92151B

BOLT,SOCKET,4X16

92151-1356

1

$2.03

In stock

92151C

BOLT,SOCKET,6X20

92151-1749

1

$2.25

In stock

92160

DAMPER

92160-1892

1

$3.15

In stock

92160A

DAMPER

92160-1927

1

$7.76

In stock

92170

CLAMP,HARNESS

92170-1900

1

$5.46

In stock

92200

WASHER

92200-1417

1
Out of stock

130

BOLT-FLANGED,5X16

130J0516

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock
