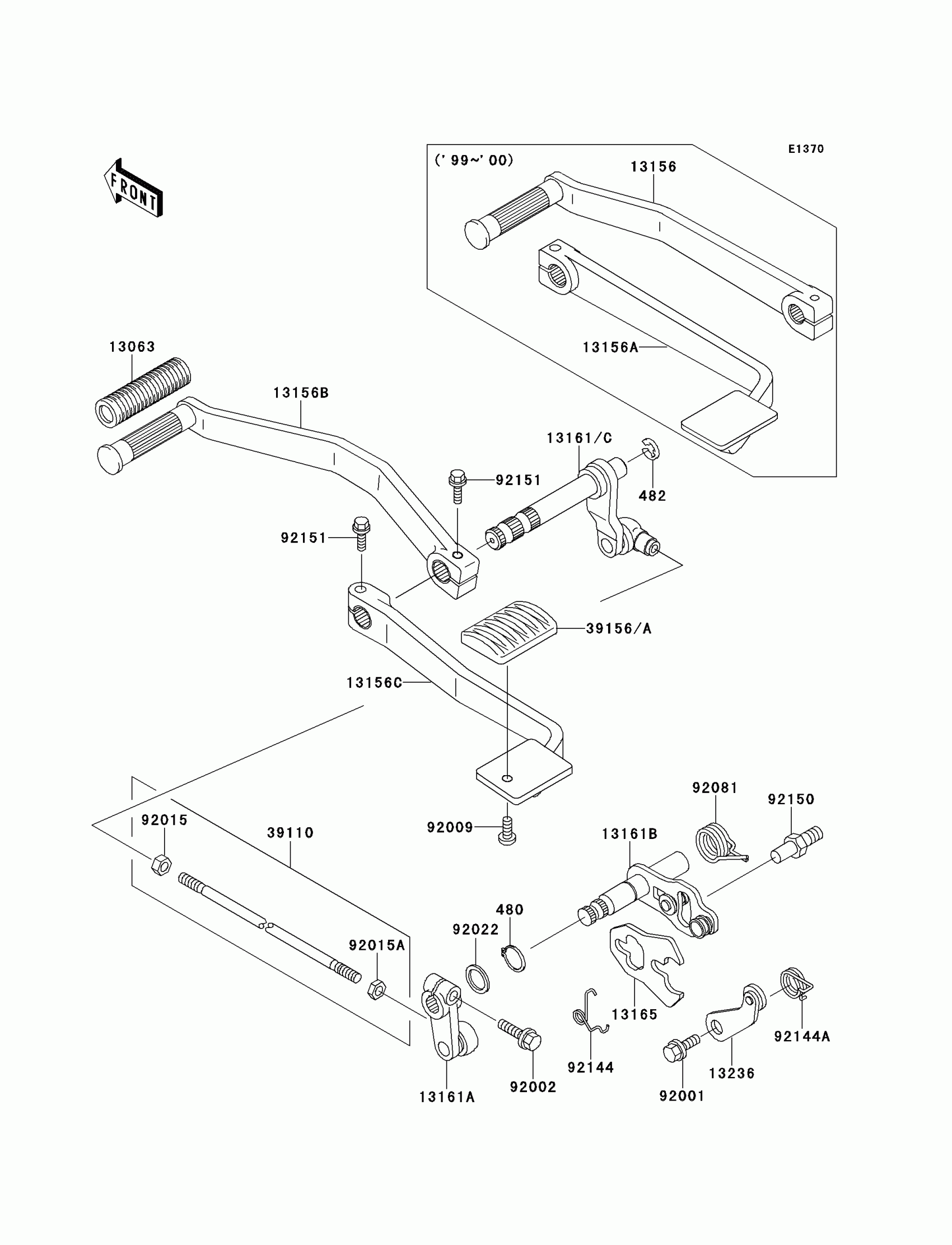

Kawasaki Vulcan 1500 Nomad Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

13063

DAMPER,PEDAL

13063-002

$3.44

13156B

LEVER-CHANGE

13156-1456

Unavailable

13156C

LEVER-CHANGE

13156-1467

$88.39

13161A

LEVER-COMP-CHANGE SHAFT

13161-1253

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT

13161-1254

Unavailable

13161C

LEVER-COMP-CHANGE SHAFT

13161-1266

$70.56

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,POSITION

13236-1126

$12.95

39110

ROD-ASSY-TIE

39110-1119

$14.56

39156A

PAD

39156-1641

$8.88

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92002

BOLT,6X20

92002-1237

$3.29

92009

SCREW,6X8

92009-1677

$3.29

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$9.85

92144

SPRING

92144-1029

$5.93

92144A

SPRING,RETURN

92144-1140

$8.85

92150

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,6X25

92151-1898

Unavailable
