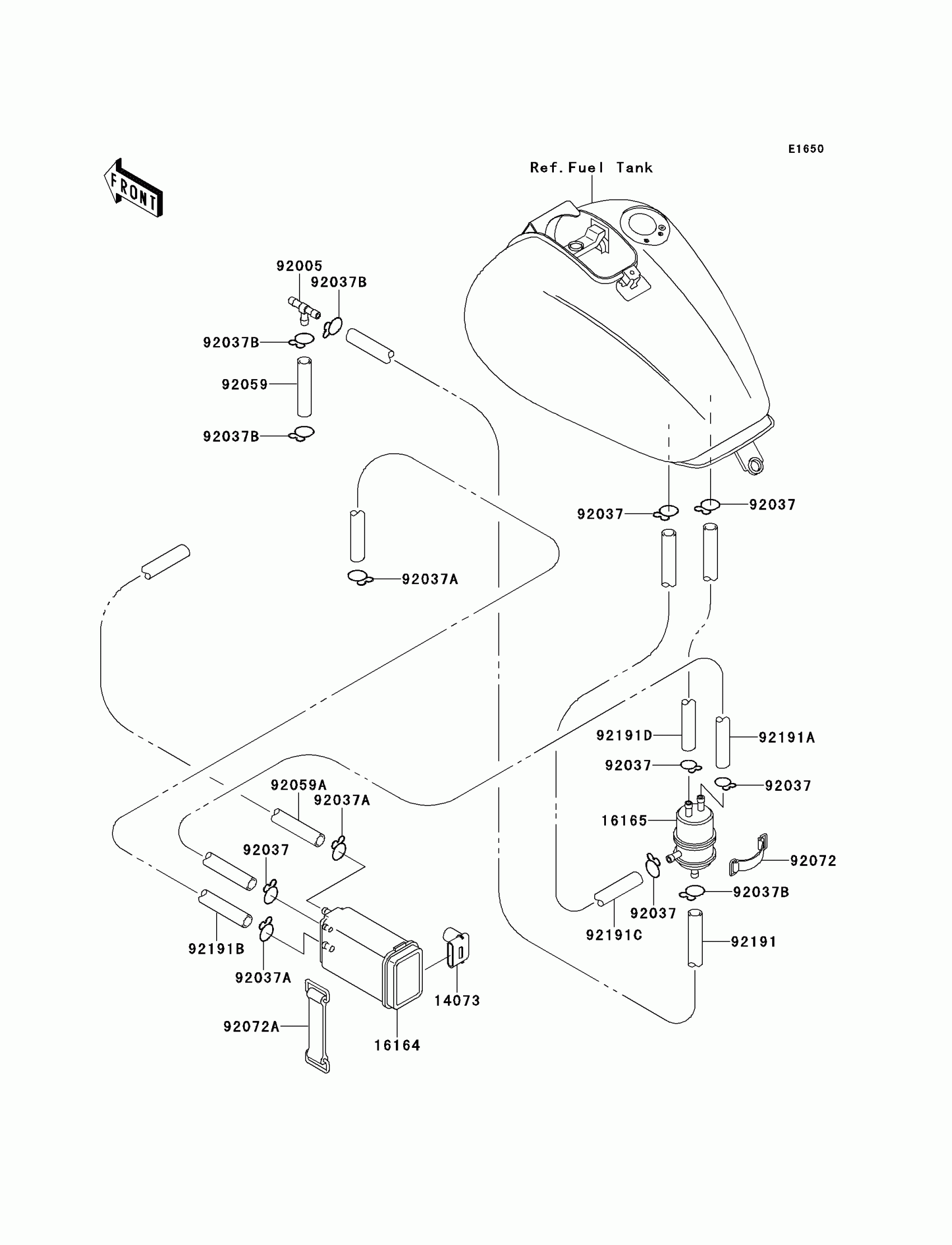

Kawasaki Vulcan 1500 Nomad Fuel Evaporative System Diagram

Description

Price

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1070

$145.42

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP

92037-1712

$5.00

92059

TUBE,4X9X50

92059-1193

$19.09

92059A

TUBE,7X12X740,GREEN

92059-1398

$41.13

92072

BAND,L=50

92072-066

$16.08

92072A

BAND,L=150

92072-1188

$13.75

92191

TUBE,WHITE

92191-1062

$21.17

92191A

TUBE,5X8X232,BLUE

92191-1070

$11.01

92191B

TUBE,L=520,YELLOW

92191-1267

$26.03

92191C

TUBE,5X8X550,RED

92191-1286

Unavailable

92191D

TUBE,5X8X470,BLUE

92191-1287

Unavailable
