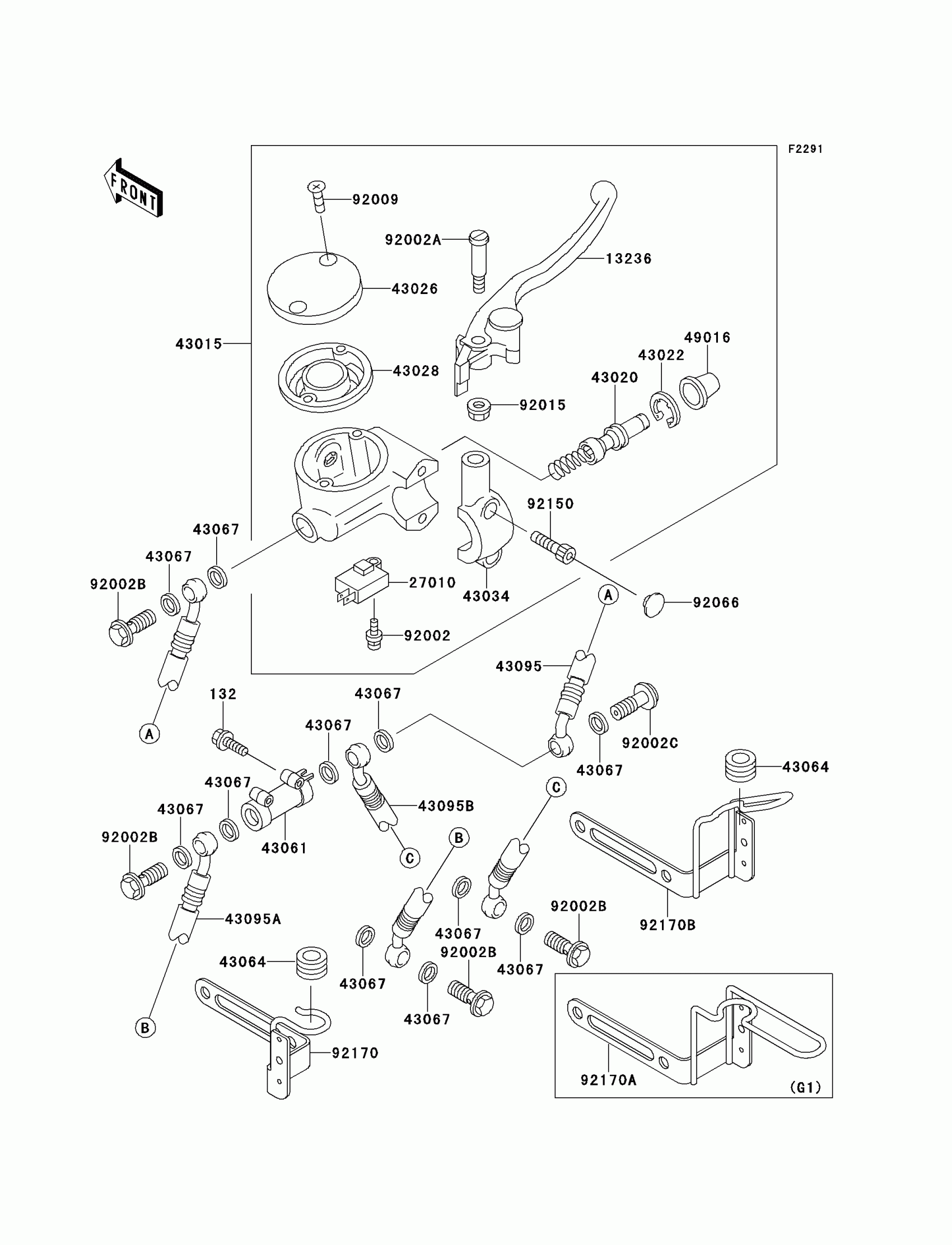

Kawasaki Vulcan 1500 Nomad Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

13236

LEVER-COMP,FRONT BRAKE

13236-1315

$50.06

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1619

$476.07

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1083

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$24.21

43034

HOLDER-BRAKE

43034-1147

$43.88

43061

JOINT-BRAKE

43061-1002

$72.14

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,FR,UPP

43095-1099

Unavailable

43095A

HOSE-BRAKE,FR,LWR,LH

43095-1100

$81.84

43095B

HOSE-BRAKE,FR,LWR,RH

43095-1101

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1561

$11.71

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92002C

BOLT,OIL,L=37

92002-1909

$11.83

92009

SCREW,5MM

92009-1440

$4.11

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92066

PLUG

92066-1301

$6.11

92150

BOLT,SOCKET,6MM

92150-1025

$7.69

92170

CLAMP,BRAKE HOSE,LH

92170-1858

$27.67

92170B

CLAMP,BRAKE HOSE,RH

92170-1981

$30.69
