Saddlebags

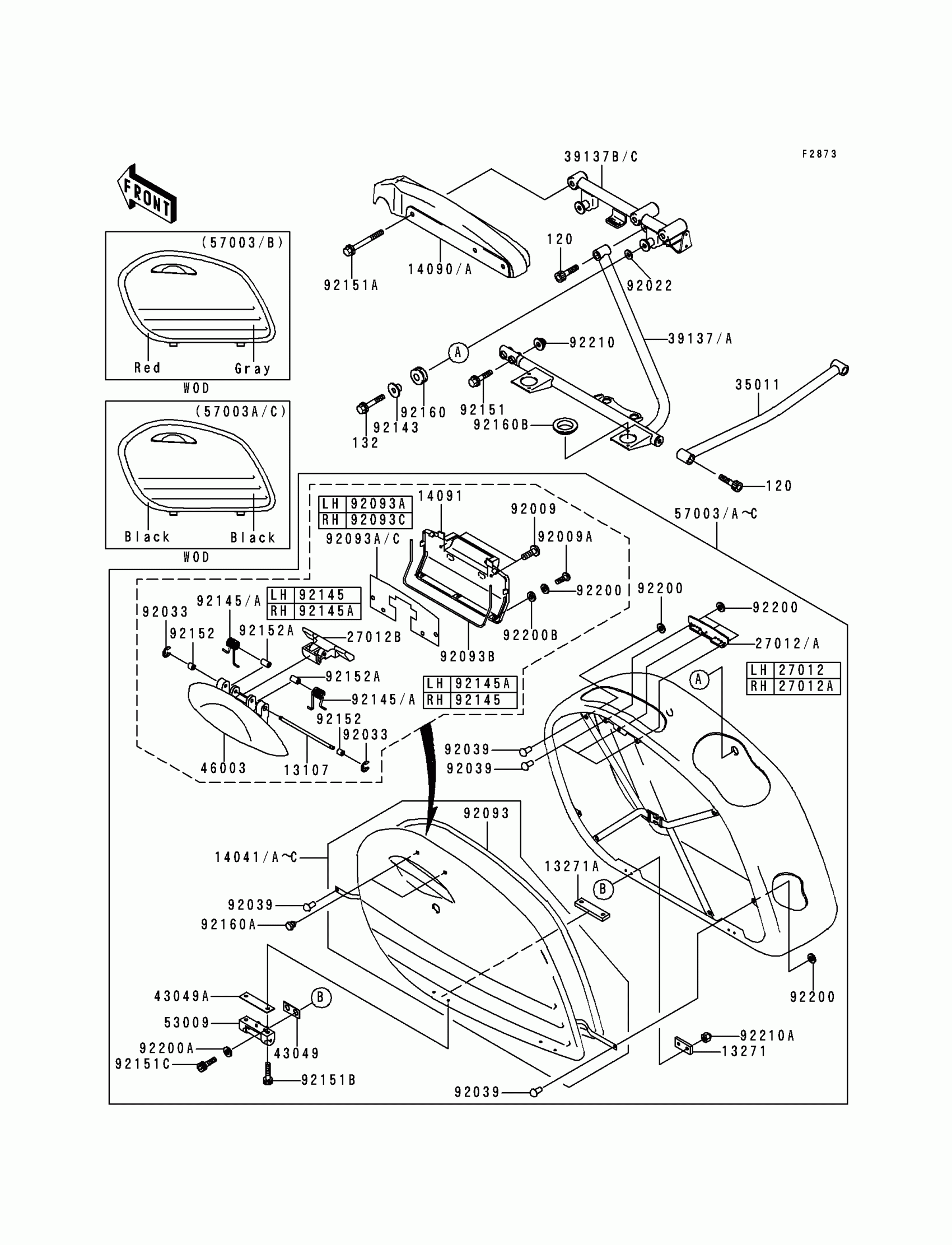

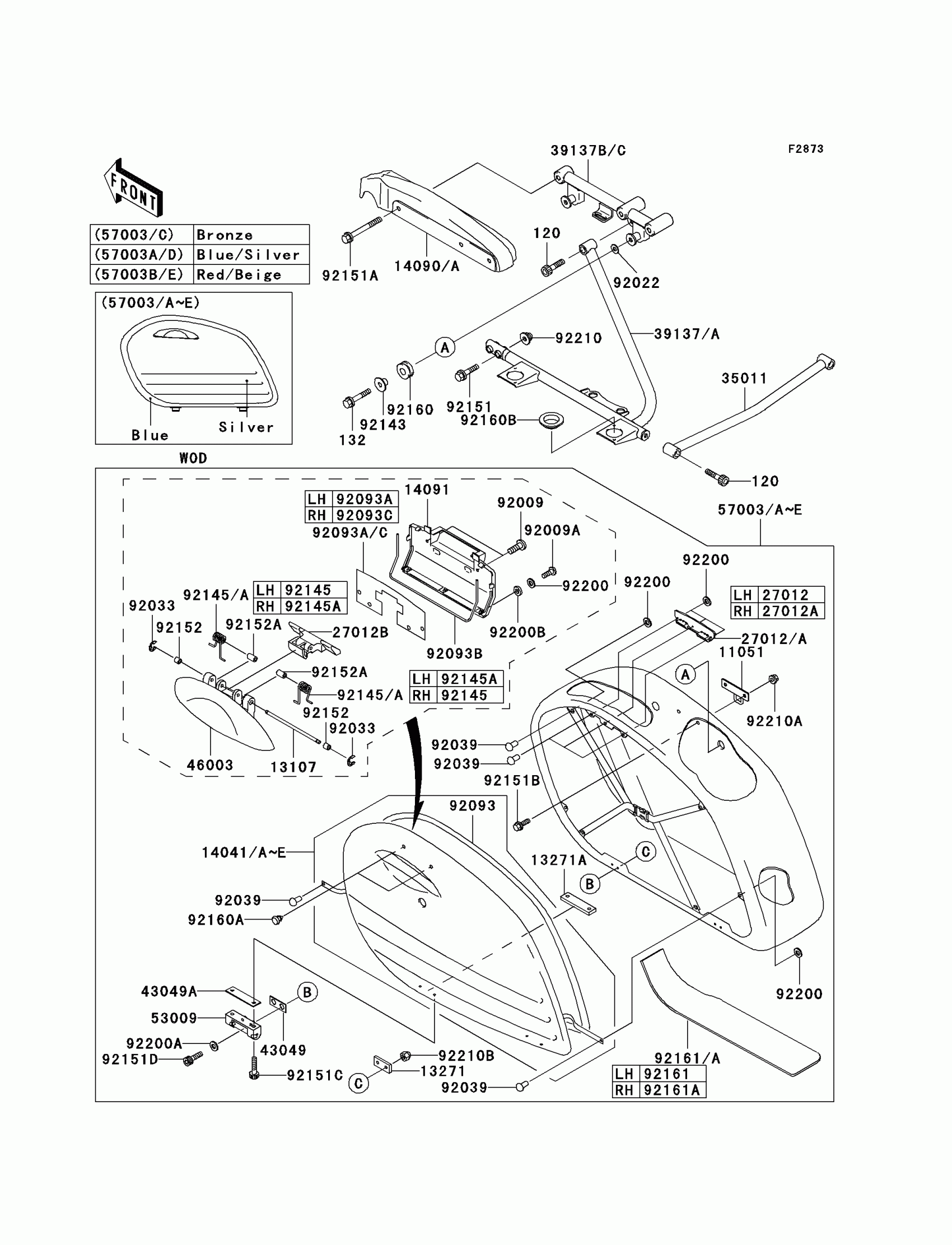

Kawasaki Vulcan 1500 Nomad Fi Saddlebags Diagram
#
11051
BRACKET,SIDE BAG BODY
11051-1104
$10.65
13107
SHAFT
13107-1403
$4.69
13271
PLATE
13271-1146
$4.18
13271A
PLATE
13271-1147
$7.95
14041
COVER-COMP,SIDE BAG,LH,SILVER
14041-1130-GU
$665.64
14041B
COVER-COMP,SIDE BAG,LH,BRONZE
14041-1130-1Z
$697.67
14041C
COVER-COMP,SIDE BAG,RH,SILVER
14041-1131-GU
$606.85
14041E
COVER-COMP,SIDE BAG,RH,BRONZE
14041-1131-1Z
Unavailable
14090
COVER,RR FENDER,LH
14090-1894
Unavailable
14090A
COVER,RR FENDER,RH
14090-1895
$83.42
14091
COVER,LID MAINTENANCE
14091-1069
$19.32
27012
HOOK,LOCK PLATE,LH
27012-1571
$14.80
27012A
HOOK,LOCK PLATE,RH
27012-1572
$14.80
27012B
HOOK,HANDLE
27012-1575
$19.55
35011
STAY,SIDE BAG
35011-1896
$74.67
39137
STAY-COMP,SIDE BAG,LH,LWR
39137-1067
$165.31
39137A
STAY-COMP,SIDE BAG,RH,LWR
39137-1068
$160.68
39137B
STAY-COMP,SIDE BAG,LH,UPP
39137-1075
$182.18
39137C
STAY-COMP,SIDE BAG,RH,UPP
39137-1076
$182.18
43049
PACKING
43049-1084
$2.44
43049A
PACKING
43049-1086
$2.44
46003
HANDLE,SIDE BAG
46003-1505
$187.83
53009
HINGE,SIDE BAG
53009-1104
$25.83
57003
BAG-ASSY,LH,M.D.BRONZE
57003-1084-1Z
$1,971.78
57003B
BAG-ASSY,LH,BLUE/SILVER
57003-1084-674
$1,971.78
57003C
BAG-ASSY,RH,M.D.BRONZE
57003-1085-1Z
$1,971.78
57003E
BAG-ASSY,RH,BLUE/SILVER
57003-1085-674
$1,787.24
92009
SCREW,TAPPING,4X12
92009-1870
$1.59
92009A
SCREW,TAPPING,3X8
92009-1871
$1.59
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92033
RING-SNAP
92033-1300
$1.58
92039
RIVET
92039-1236
$2.46
120
BOLT-SOCKET,8X35
120S0835
$4.44
132
BOLT-FLANGED-SMALL
132J0845
$5.66
92093
SEAL,SIDE BAG COVER
92093-1486
$12.20
92093A
SEAL,SIDE BAG,LH
92093-1487
$6.20
92093B
SEAL
92093-1488
$3.56
92093C
SEAL,SIDE BAG,RH
92093-1489
$6.20
92143
COLLAR
92143-1450
$9.91
92145
SPRING
92145-1175
$7.88
92145A
SPRING
92145-1200
$7.88
92151
BOLT,FLANGED,8X35
92151-1402
$2.46
92151A
BOLT,FLANGED,8X75
92151-1403
$4.90
92151B
BOLT,FLANGED,6X16
92151-1435
$2.41
92151C
BOLT,SOCKET,4X22
92151-1436
$2.46
92151D
BOLT,SOCKET,4X18
92151-1437
$2.46
92152
COLLAR
92152-1121
$3.92
92152A
COLLAR
92152-1122
$3.60
92160
DAMPER
92160-1012
$5.52
92160A
DAMPER
92160-1976
$2.46
92160B
DAMPER
92160-1981
$10.76
92161
DAMPER,SIDE BAG,LH
92161-1171
$37.46
92161A
DAMPER,SIDE BAG,RH
92161-1176
$37.46
92200
WASHER,3MM
92200-1442
$1.59
92200A
WASHER,4MM
92200-1443
$1.59
92200B
WASHER,3MM
92200-1444
$1.59
92210
NUT,CAP,8MM
92210-1161
$2.48
92210A
NUT,CAP,6MM
92210-1167
$2.67
92210B
NUT,CAP,4MM
92210-1168
$1.83
14041A
COVER-COMP,SIDE BAG,LH,BEIGE
14041-1130-X9
$697.67
14041D
COVER-COMP,SIDE BAG,RH,BEIGE
14041-1131-X9
$635.96
57003A
BAG-ASSY,LH,RED/BEIGE
57003-1084-456
$1,971.78
57003D
BAG-ASSY,RH,RED/BEIGE
57003-1085-456
$1,787.24
