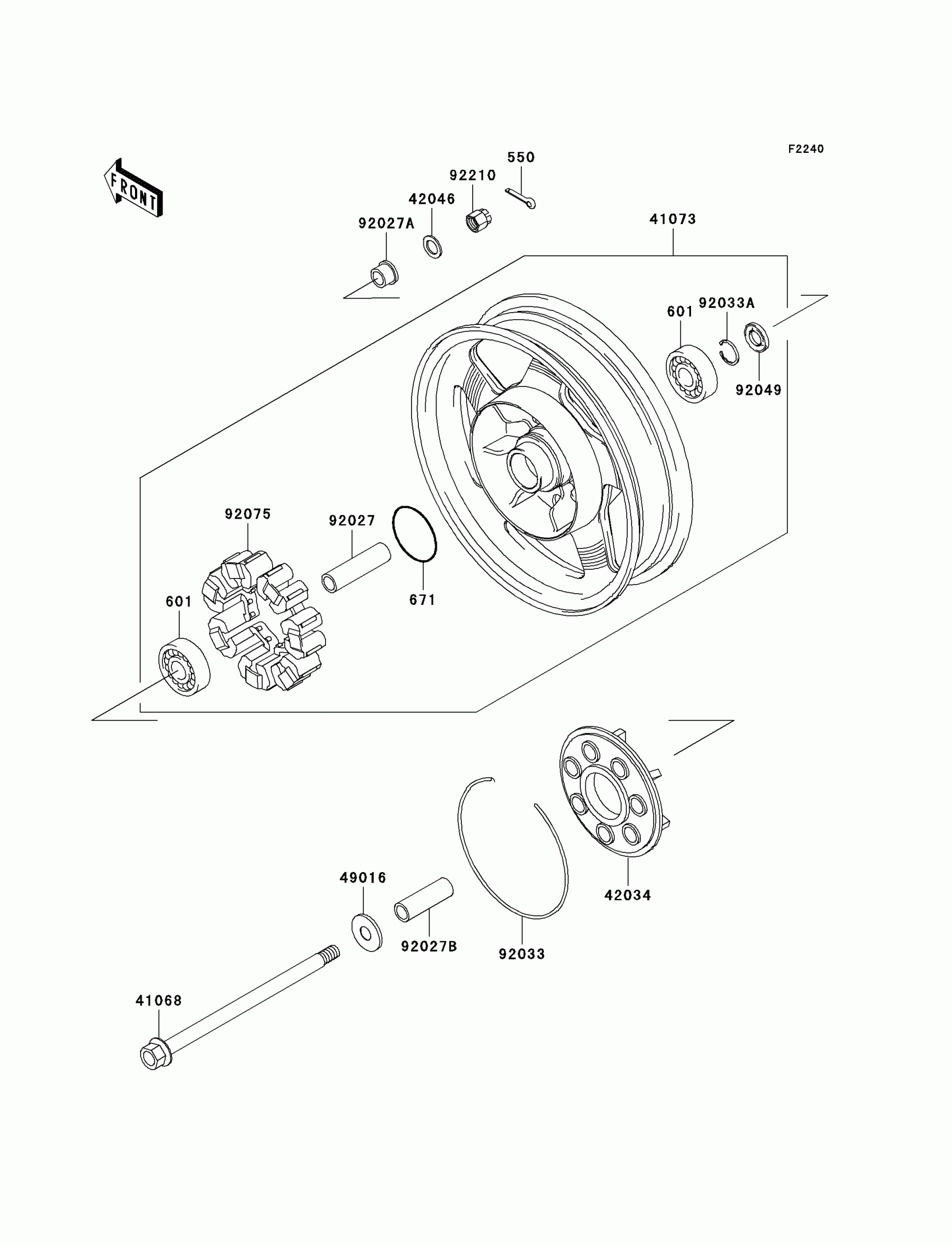

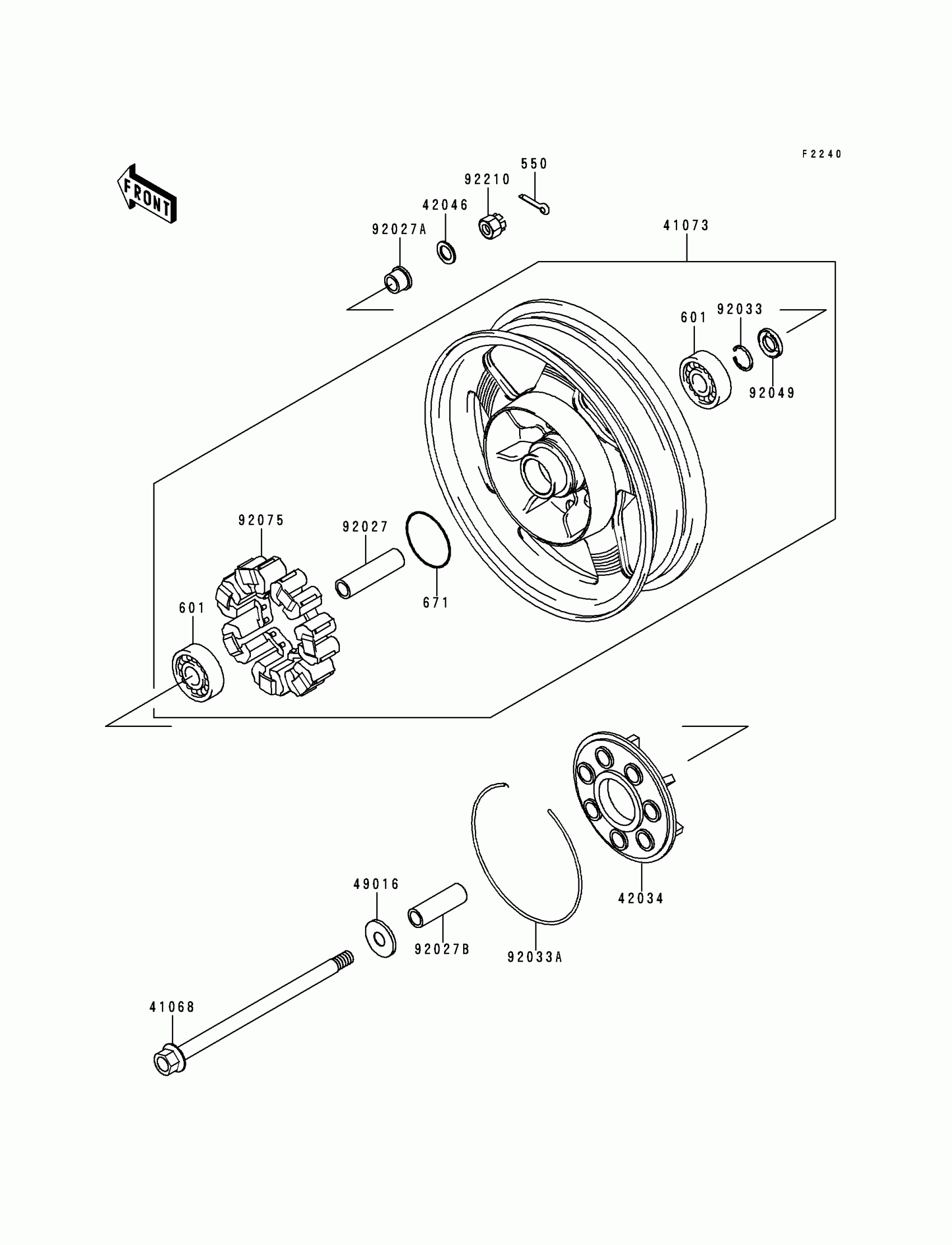

Kawasaki Vulcan 1500 Nomad Fi Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6304UUC3

601B6304UU

$30.87

671

O RING,80MM

671B2580

$5.12

41068

AXLE,RR

41068-1410

$136.61

41073

WHEEL-ASSY,RR,SILVER

41073-1632-CX

$1,229.98

42034

COUPLING,RR HUB

42034-1011

$283.07

42046

WASHER,21X33X2.6

42046-003

$3.85

49016

COVER-SEAL

49016-1019

$8.53

92027

COLLAR,20.2X28X105.5

92027-1901

$40.28

92027A

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92027B

COLLAR,20.2X28X86

92027-1969

Unavailable

92033

RING-SNAP,52MM

92033-1043

$6.15

92033A

RING-SNAP,220MM

92033-1230

$16.81

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92075

DAMPER,SHOCK,RR HUB

92075-1121

$144.96

92210

NUT,CASTLE,18MM

92210-1134

$7.49
