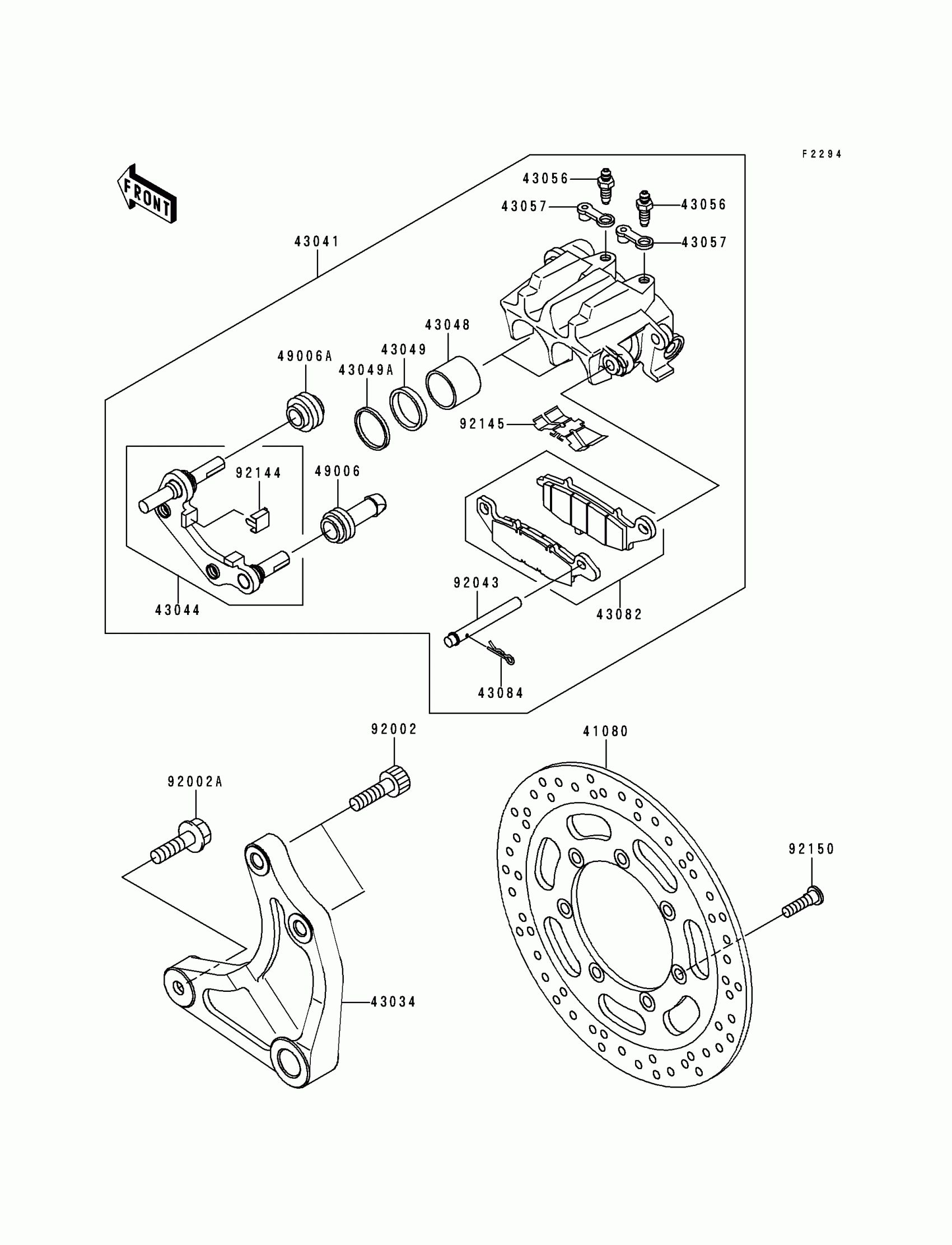

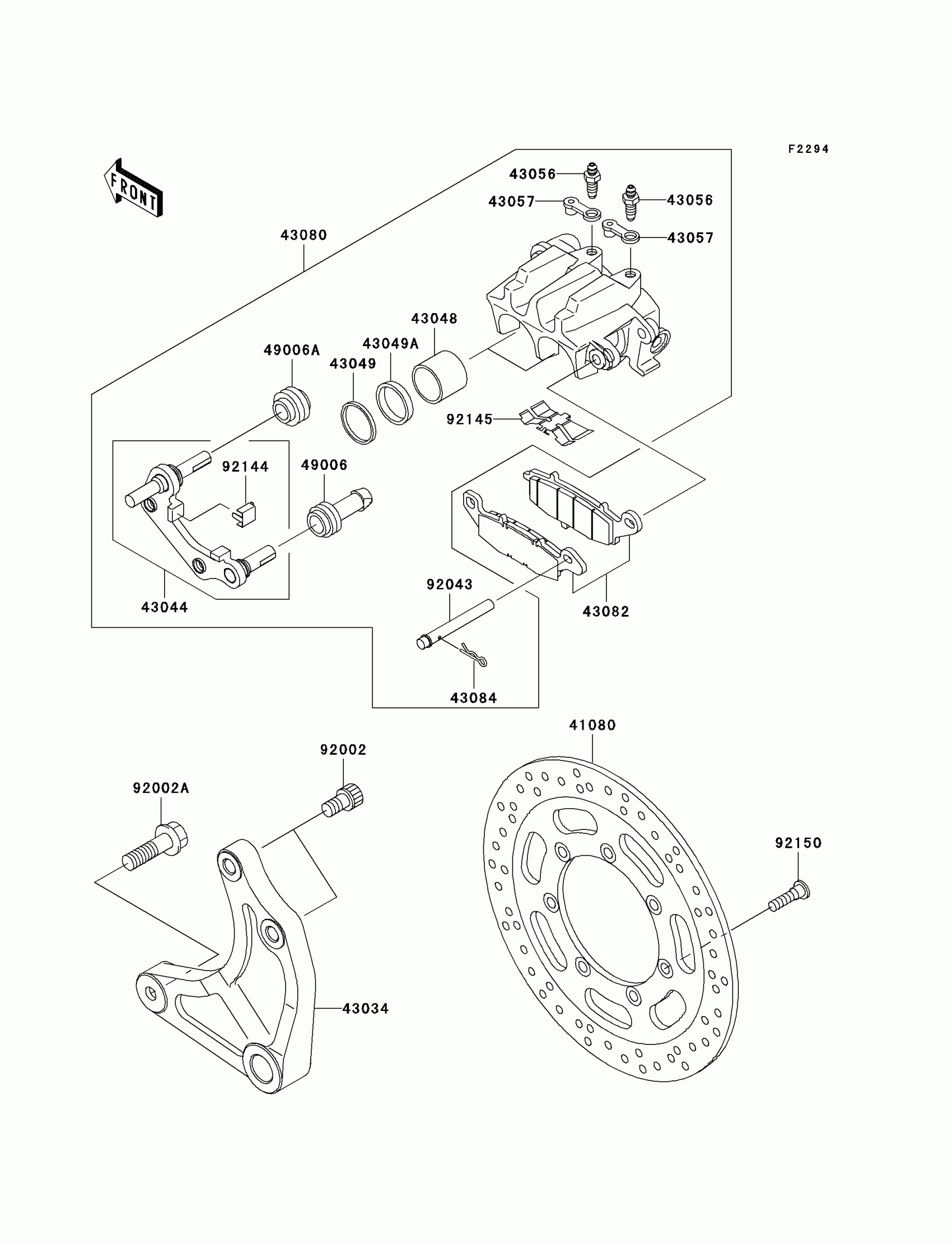

Kawasaki Vulcan 1500 Nomad Fi Rear Brake Diagram

Description

Price

41080

DISC,RR,SILVER

41080-1448-CM

$335.58

43034

HOLDER-BRAKE,REAR CALIPER

43034-1160

$194.41

43044

HOLDER-COMP-CALIPER,RR

43044-1134

$175.85

43048

PISTON-CALIPER

43048-1094

$59.39

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,SILVER

43080-5098-GN

$398.42

43082

PAD-ASSY-BRAKE

43082-1264

$75.35

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,SOCKET,10X17

92002-1713

$7.34

92002A

BOLT,FLANGED,12X40

92002-1969

$9.05

92043

PIN,PAD

92043-1640

$6.36

92144

SPRING,STOPPER

92144-1831

$5.46

92145

SPRING,PAD

92145-1382

$16.24

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
