Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

132

BOLT-FLANGED-SMALL,6X10

132J0610

$2.33

132A

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

132B

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

11012

CAP

11012-1585

$7.55

11051

BRACKET,THERMOSTAT CASE

11051-1535

$9.89

11060

GASKET,DRAIN PLUG

11060-1767

$2.94

14037

SCREEN

14037-1251

Unavailable

14075

CAP-ASSY

14075-1068

$170.71

27010

SWITCH,WARNING

27010-1305

$83.95

27010A

SWITCH,FAN

27010-1364

$140.56

32099

CASE,THERMOSTAT

32099-1201

$65.90

39060

RADIATOR

39060-1165

$601.16

39062

HOSE-COOLING,THERMO-RADIATOR

39062-1696

$34.16

39062A

HOSE-COOLING,RADIATOR-PUMP

39062-1697

$29.24

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-1785

$33.19

39062C

HOSE-COOLING,THERMO-RESER

39062-1796

$20.71

39062D

HOSE-COOLING,HEAD,RR-THERMO

39062-1813

Unavailable

39062E

HOSE-COOLING,OVERFLOW

39062-1814

$23.17

39192

PIPE-WATER

39192-1094

$23.27

39192A

PIPE-WATER

39192-1096

$27.10

43056

BREATHER

43056-003

$24.57

43078

RESERVOIR

43078-1164

$40.31

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$53.94

59502

FAN-ASSY

59502-1127

$895.79

92002

BOLT,FLANGED,10X10

92002-1311

$6.15

92002A

BOLT,6X12

92002-1569

Unavailable

92009

SCREW,6X10

92009-1402

$2.41

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,53.5X2.6

92055-112

$6.63

92072

BAND,L=250

92072-1237

$2.14

92075

DAMPER,10X24X12

92075-1690

$5.00

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92170

CLAMP,COOLING HOSE

92170-1032

$25.59

92170A

CLAMP,COOLING HOSE

92170-1034

$20.98

92170B

CLAMP,COOLING HOSE

92170-1284

$8.20

92210

NUT

92210-1125

$4.76

670

O RING,14MM

670B2014

$1.19

670A

O RING,18MM

670B2018

$1.42

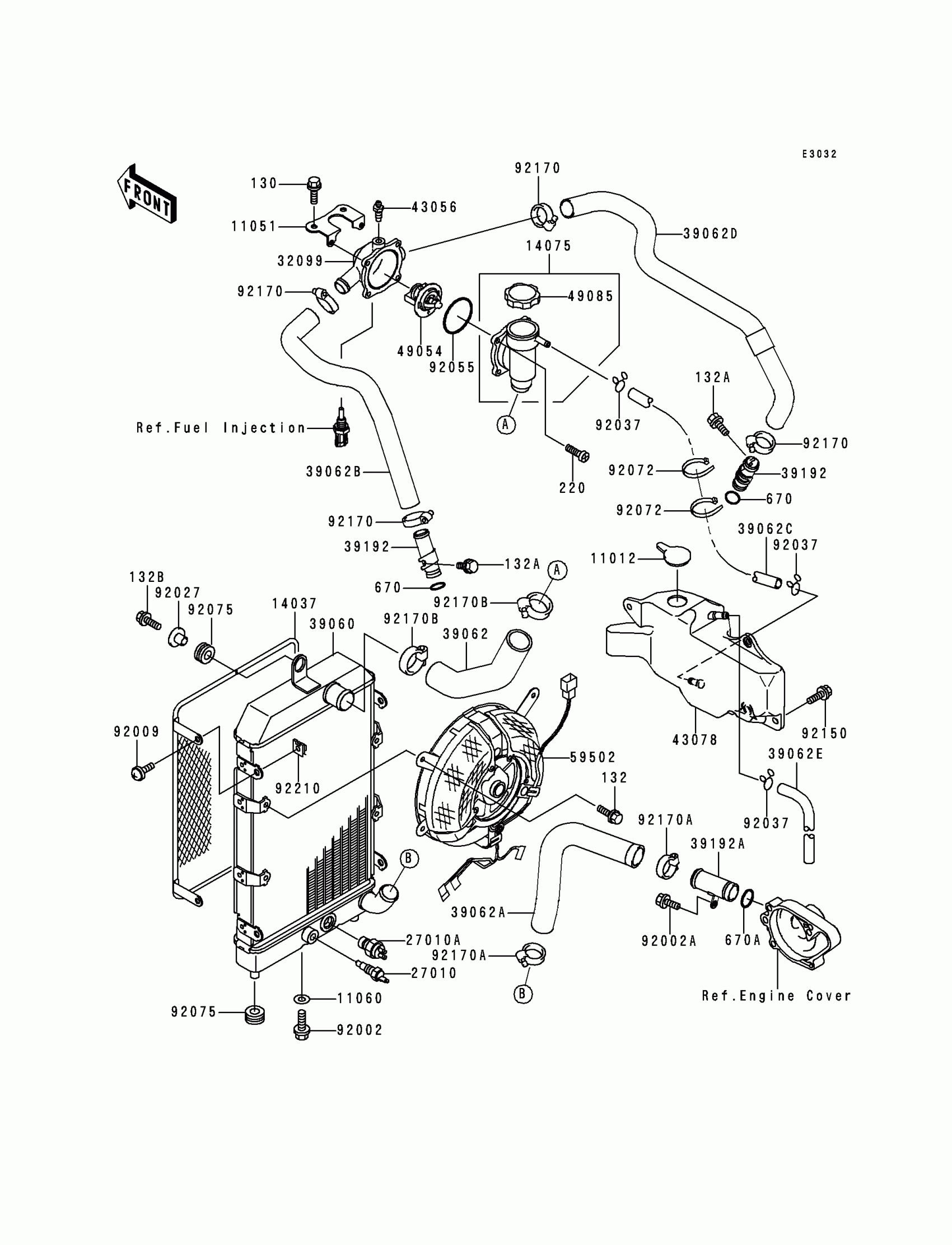

Kawasaki Vulcan 1500 Nomad Fi Radiator Diagram

BOLT-FLANGED,6X12

BOLT-FLANGED-SMALL,6X10

BOLT-FLANGED-SMALL,6X12

BOLT-FLANGED-SMALL,6X25

SCREW-PAN-CROS,5X14

CAP

BRACKET,THERMOSTAT CASE

GASKET,DRAIN PLUG

SCREEN

CAP-ASSY

SWITCH,WARNING

SWITCH,FAN

CASE,THERMOSTAT

RADIATOR

HOSE-COOLING,THERMO-RADIATOR

HOSE-COOLING,RADIATOR-PUMP

HOSE-COOLING,FR HEAD-THERMO

HOSE-COOLING,THERMO-RESER

HOSE-COOLING,HEAD,RR-THERMO

HOSE-COOLING,OVERFLOW

PIPE-WATER

PIPE-WATER

BREATHER

RESERVOIR

THERMOSTAT

CAP-ASSY-PRESSURE

FAN-ASSY

BOLT,FLANGED,10X10

BOLT,6X12

SCREW,6X10

COLLAR,L=13.1,BLACK

CLAMP,TUBE

RING-O,53.5X2.6

BAND,L=250

DAMPER,10X24X12

BOLT,FLANGED,6X14,WASHER

CLAMP,COOLING HOSE

CLAMP,COOLING HOSE

CLAMP,COOLING HOSE

NUT

O RING,14MM

O RING,18MM
