2000 Kawasaki Vulcan 1500 Nomad Fi Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2000 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

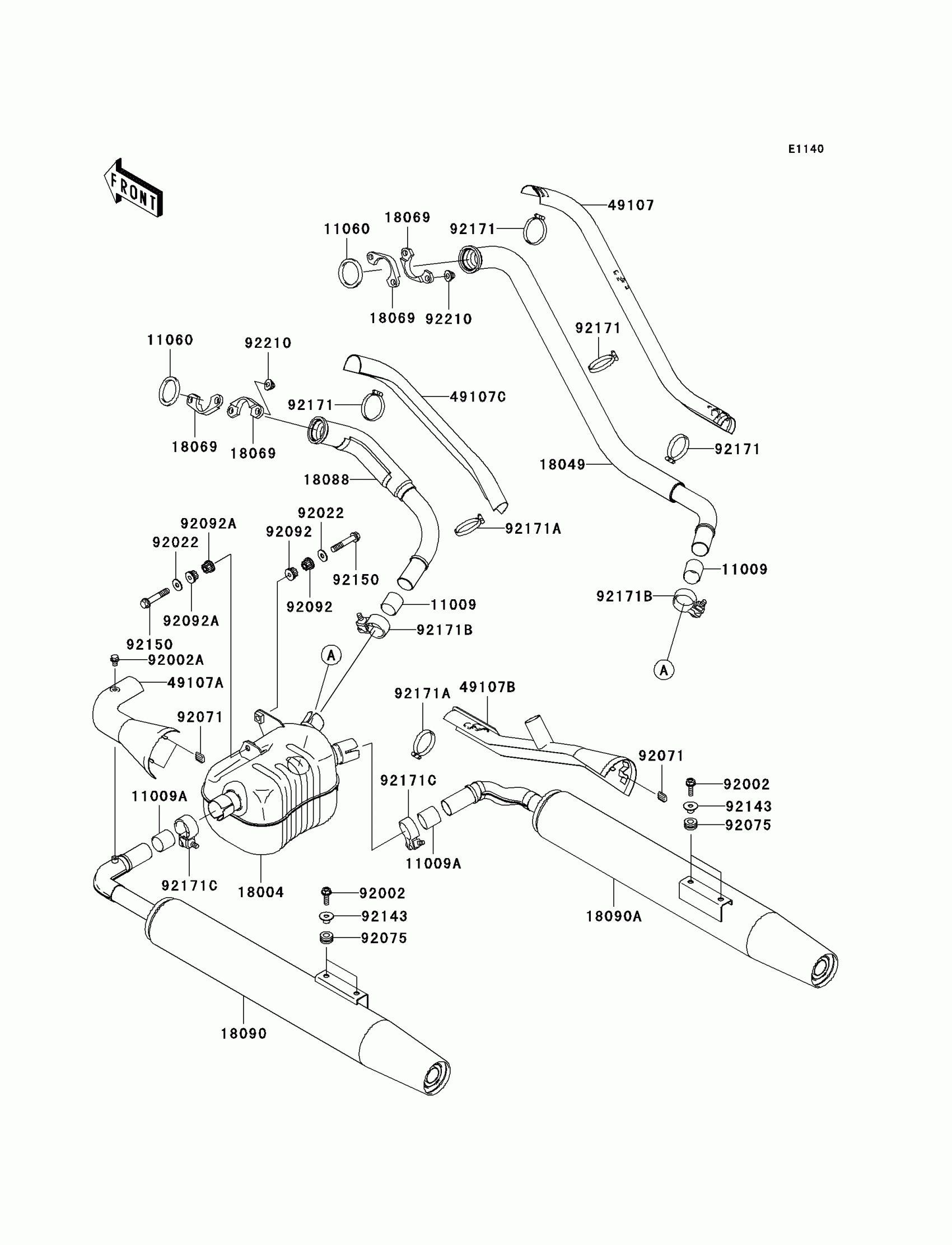

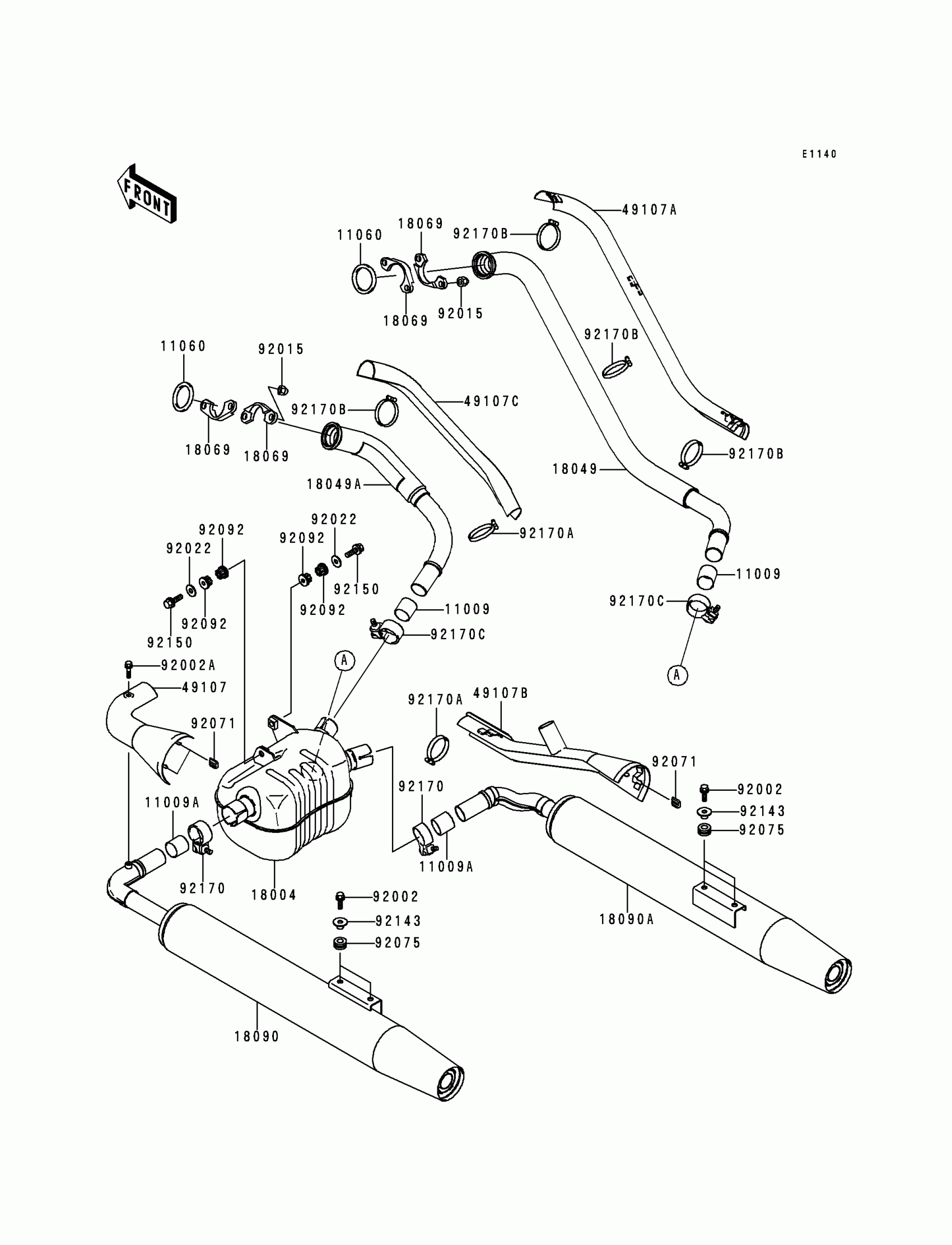

2000 Kawasaki Vulcan 1500 Nomad Fi Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

1
Out of stock

11009A

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1119

1
Out of stock

18004

CHAMBER-PREMUFFLER

18004-1089

1
Out of stock

18049

PIPE-EXHAUST,FR

18049-1906

1
Out of stock

18049A

PIPE-EXHAUST,RR

18049-1907

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1138

1
Out of stock

18090

BODY-COMP-MUFFLER,LH

18090-1754

1
Out of stock

18090A

BODY-COMP-MUFFLER,RH

18090-1755

1
Out of stock

49107

COVER-EXHAUST PIPE,LH

49107-1158

1
Out of stock

49107A

COVER-EXHAUST PIPE,FRONT

49107-1169

1
Out of stock

49107B

COVER-EXHAUST PIPE,RH

49107-1180

1
Out of stock

49107C

COVER-EXHAUST PIPE,REAR

49107-1181

1
Out of stock

92002

BOLT,8X25

92002-1591

1
Out of stock

92002A

BOLT,6X8

92002-1604

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92022

WASHER,10.5X30X2.3,BLACK

92022-1302

1
Out of stock

92071

GROMMET

92071-1226

1
Out of stock

92075

DAMPER

92075-1898

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1013

1
Out of stock

92143

COLLAR

92143-1753

1
Out of stock

92150

BOLT,10X55

92150-1749

1
Out of stock

92170

CLAMP

92170-1928

1
Out of stock

92170A

CLAMP

92170-1934

1
Out of stock

92170B

CLAMP

92170-1964

1
Out of stock

92170C

CLAMP

92170-1995

1
Out of stock
