2000 Kawasaki Vulcan 1500 Nomad Fi Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2000 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

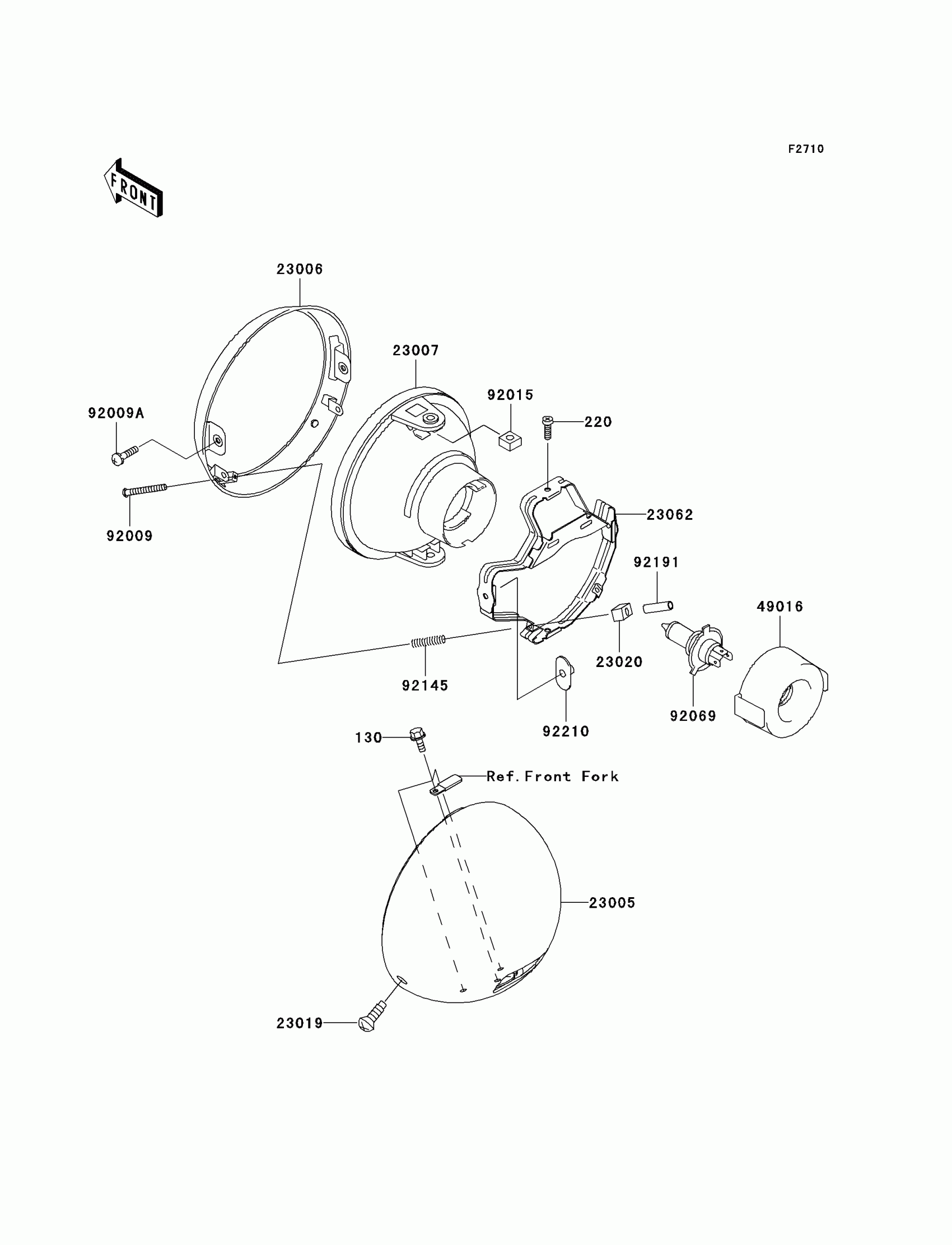

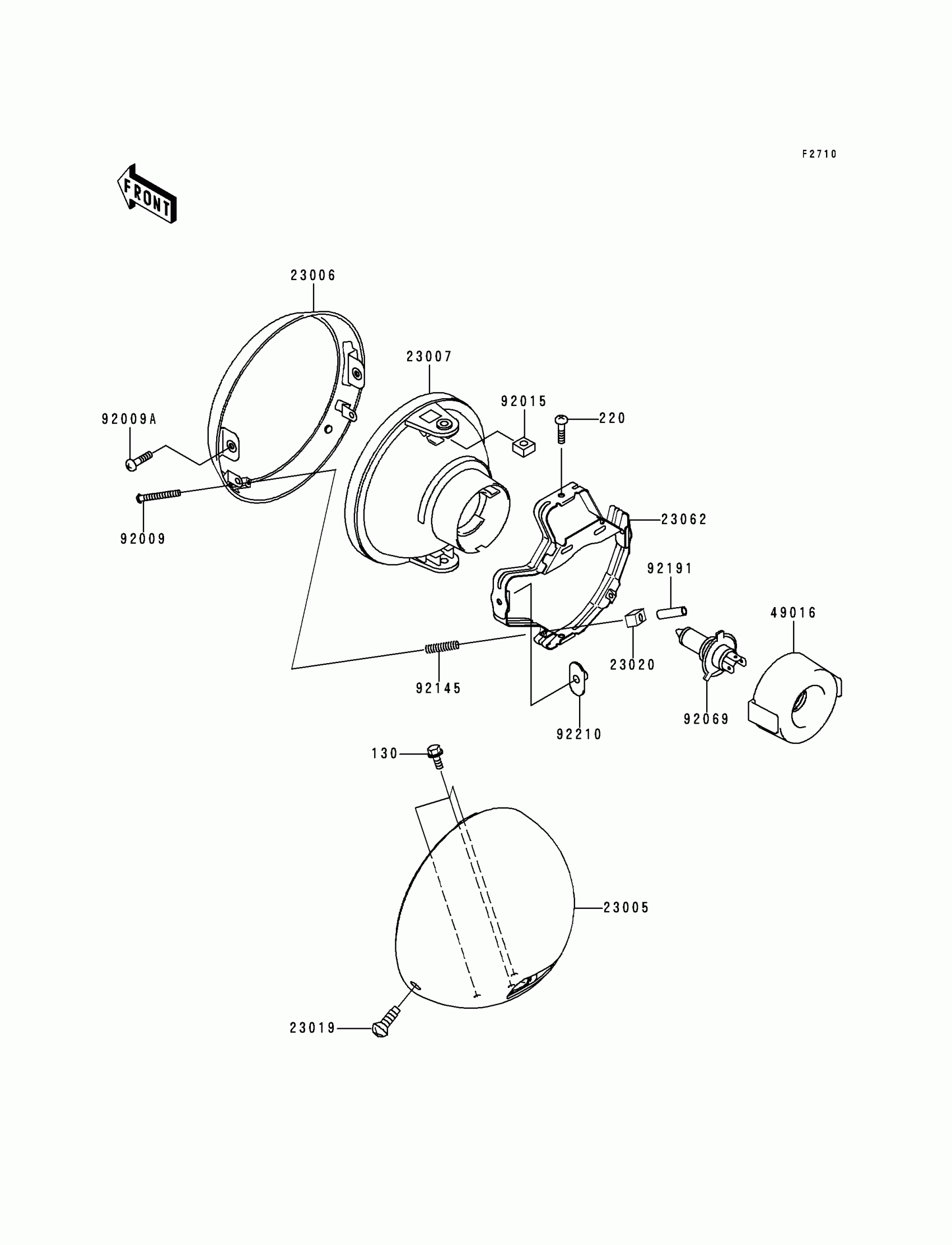

2000 Kawasaki Vulcan 1500 Nomad Fi Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130H0614

1
Out of stock

220

SCREW-PAN-CROSS,5X16

220D0516

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-1171

1
Out of stock

23006

RIM-LAMP

23006-1081

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1367

1
Out of stock

23019

SCREW,SPECIAL,5X14

23019-024

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

23062

BRACKET-COMP,HEAD LAMP

23062-1132

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1203

1
Out of stock

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009A

SCREW,5X16

92009-1879

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

SPRING,HEAD LAMP LENS

92145-1268

1
Out of stock

92191

TUBE,3.5X5.5X19

92191-1217

1
Out of stock

92210

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
