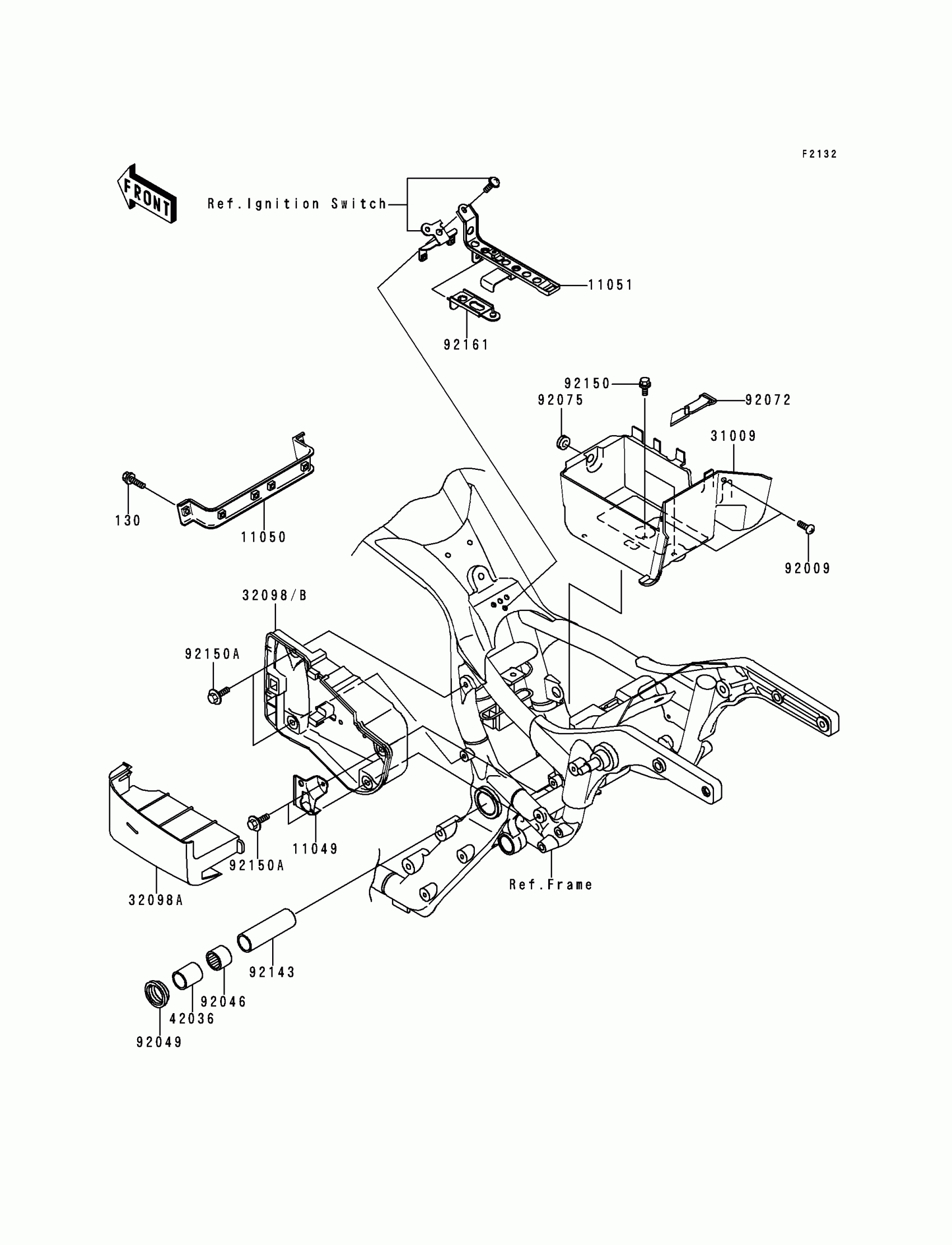

Kawasaki Vulcan 1500 Nomad Fi Battery Case Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

11049

BRACKET,LOCK

11049-1600

$18.81

11050

BRACKET,REGULATOR

11050-1694

$36.89

11051

BRACKET,BATTERY BAND

11051-1327

Unavailable

31009

CASE-COMP-BATTERY

31009-1054

Unavailable

32098A

CASE-TOOL,COVER

32098-1126

$143.88

42036

SLEEVE,L=45

42036-1330

Unavailable

92009

SCREW,6X10

92009-1402

$2.00

92046

BEARING-NEEDLE,BM2824

92046-1202

$23.05

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.38

92072

BAND,L=470

92072-1331

$24.34

92075

DAMPER

92075-1067

$3.72

92143

COLLAR,20.2X27X90

92143-1878

Unavailable

92150

BOLT,6X14

92150-1133

$3.57

92150A

BOLT,6X16

92150-1198

$3.69

92161

DAMPER,BATTERY BAND

92161-1096

$12.54

32098

CASE-TOOL

32098-1125

$148.64

32098B

CASE-TOOL

32098-1127

$148.64
