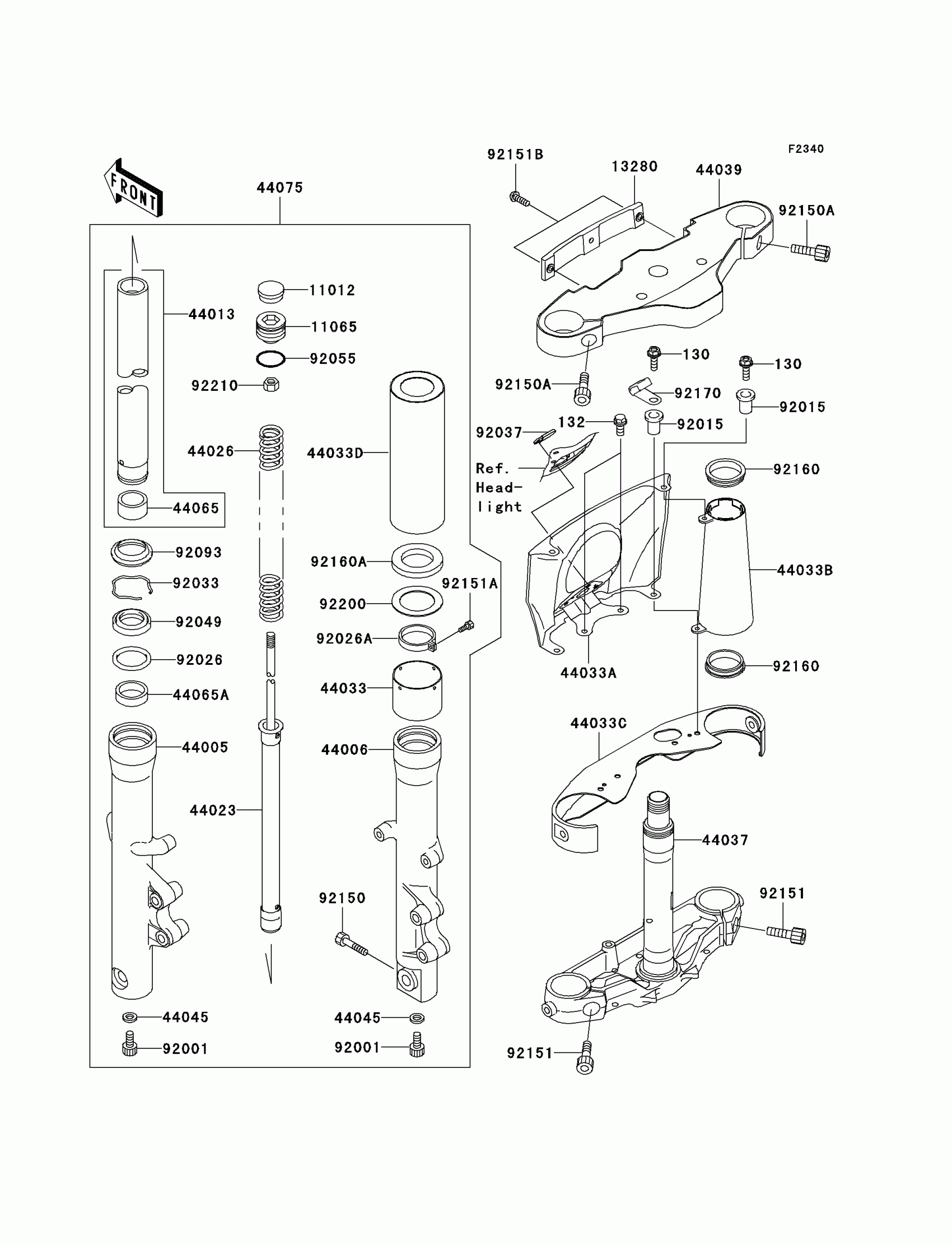

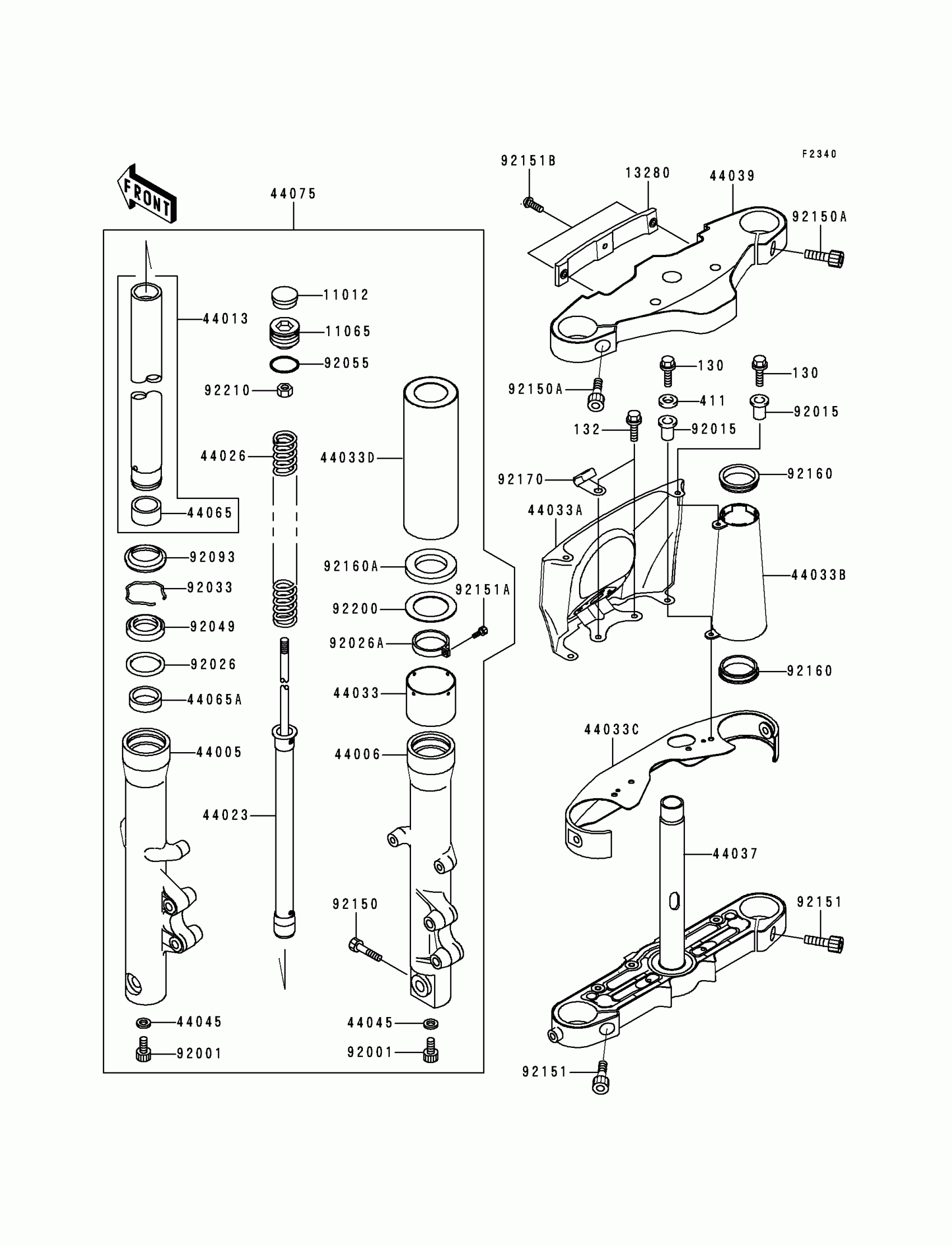

Kawasaki Vulcan 1500 Nomad Fi Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$25.14

11065

CAP,FORK BOLT

11065-1161

$58.65

13280

HOLDER

13280-1070

$48.91

44005

PIPE-LEFT FORK OUTER

44005-1384

$489.41

44006

PIPE-RIGHT FORK OUTER

44006-1384

$489.41

44013

PIPE-FORK INNER

44013-1474

$500.71

44023

CYLINDER-SET-FORK

44023-1146

Unavailable

44026

SPRING-FRONT FORK

44026-1706

$108.97

44033

COVER-FORK

44033-1223

$22.88

44033A

COVER-FORK,CNT

44033-1228

$100.74

44033B

COVER-FORK,UPP

44033-1229

$111.77

44033C

COVER-FORK,LWR

44033-1230

$175.29

44033D

COVER-FORK

44033-1236

$92.87

44037

HOLDER-FORK UNDER

44037-1368

$549.70

44039

HOLDER-FORK UPPER

44039-1279

$356.18

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1126

$21.42

44065A

BUSHING-FRONT FORK

44065-1127

$22.46

44075

DAMPER-SET-FORK

44075-1116

$1,390.80

92001

BOLT,FORK CYLINDER

92001-1464

$6.22

92015

NUT,WELL,5MM

92015-1757

$7.29

92026

SPACER,FORK OUTER

92026-1276

$9.51

92026A

SPACER

92026-1515

$15.83

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL,FORK

92049-1363

$25.52

92055

RING-O

92055-1635

$7.58

92093

SEAL,FORK

92093-1268

$24.97

92150

BOLT,SOCKET,10X40

92150-1029

$11.07

92150A

BOLT,SOCKET,8X30

92150-1031

$9.63

92151

BOLT,SOCKET,10X25

92151-1083

$9.89

92151A

BOLT,SOCKET,4X16

92151-1356

$2.46

92151B

BOLT,SOCKET,6X20

92151-1749

$2.63

92160

DAMPER

92160-1892

$3.57

92160A

DAMPER

92160-1927

$7.91

92170

CLAMP,HARNESS

92170-1900

$6.26

92200

WASHER

92200-1417

$7.57

92210

NUT

92210-1235

$13.23

130

BOLT-FLANGED,5X16

130J0516

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

411

WASHER-PLAIN,5MM,BLACK

411F0500

$0.83
