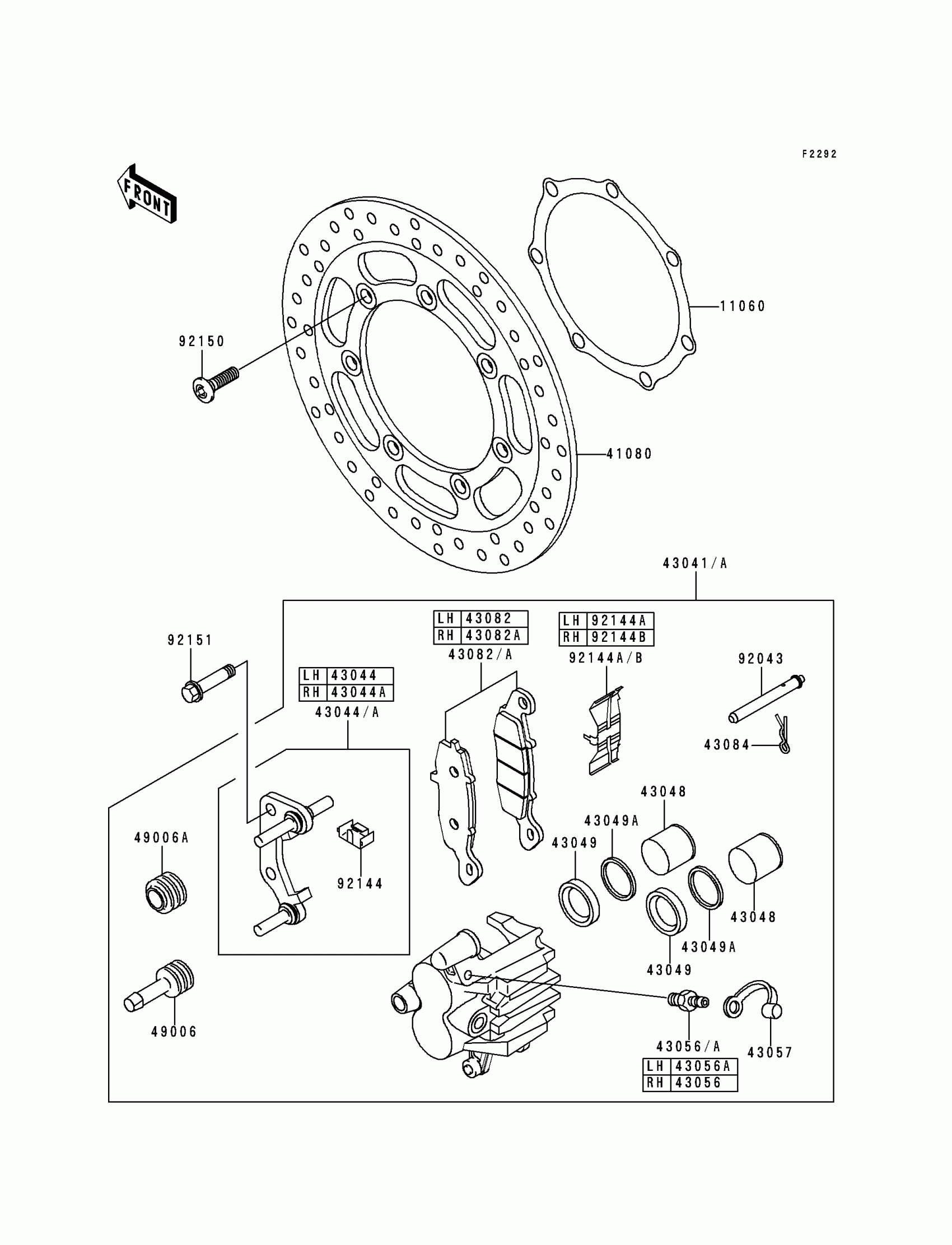

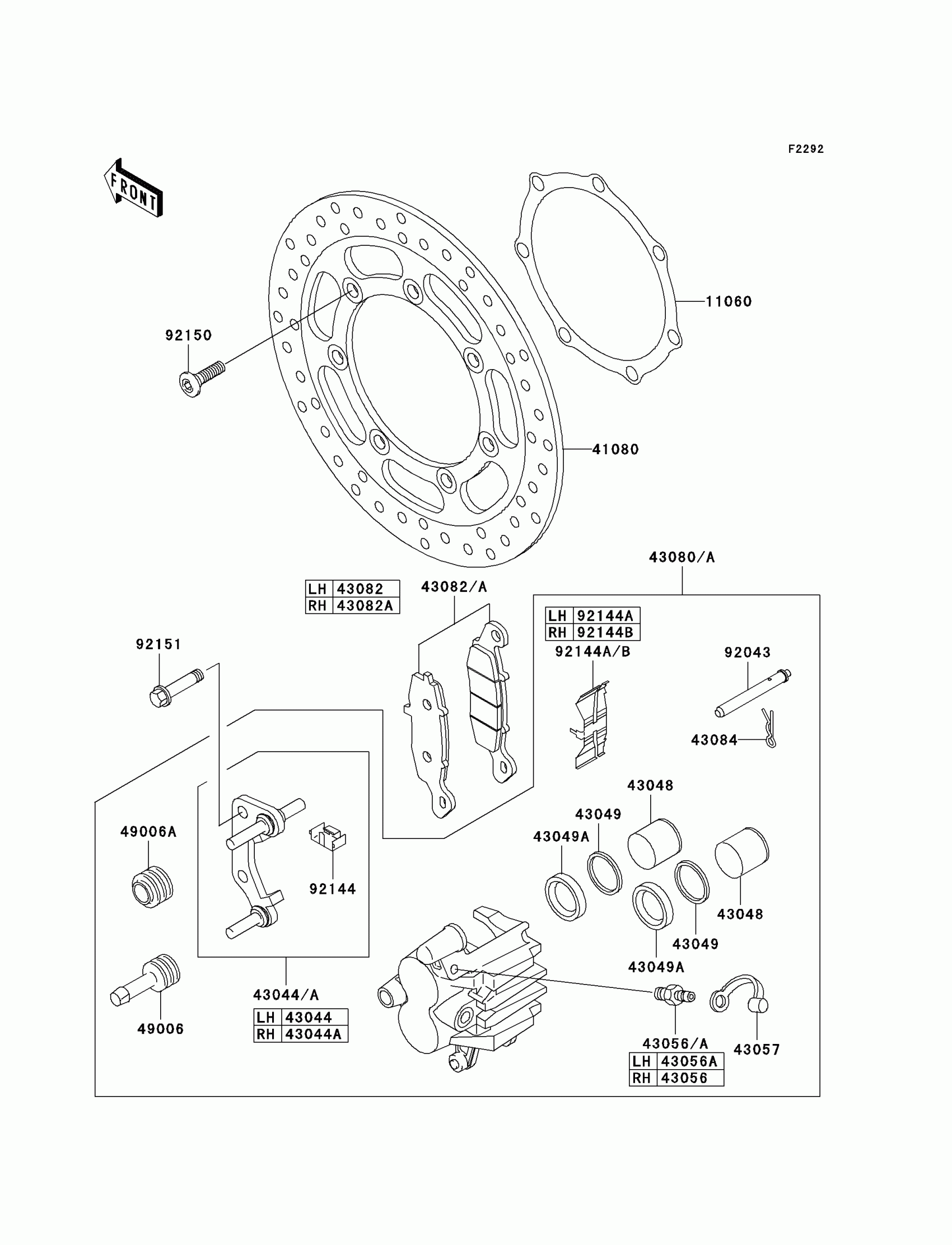

Kawasaki Vulcan 1500 Nomad Fi Front Brake Diagram

Description

Price

11060

GASKET,DISC

11060-1865

$22.61

41080

DISC,FR,SILVER

41080-1447-CM

$451.74

43041

CALIPER-ASSY,FR,LH,SILVER

43041-1715-GN

Unavailable

43041A

CALIPER-ASSY,FR,RH,SILVER

43041-1716-GN

Unavailable

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1117

$180.07

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1124

Unavailable

43048

PISTON-CALIPER

43048-1052

$66.46

43049

PACKING,PISTON SEAL

43049-1054

$12.42

43049A

PACKING,PISTON

43049-1055

$11.29

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1245

Unavailable

43082A

PAD-ASSY-BRAKE

43082-1246

Unavailable

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92144B

SPRING,PAD,RH

92144-1844

$10.00

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,FLANGED,10X47

92151-1321

$6.52
