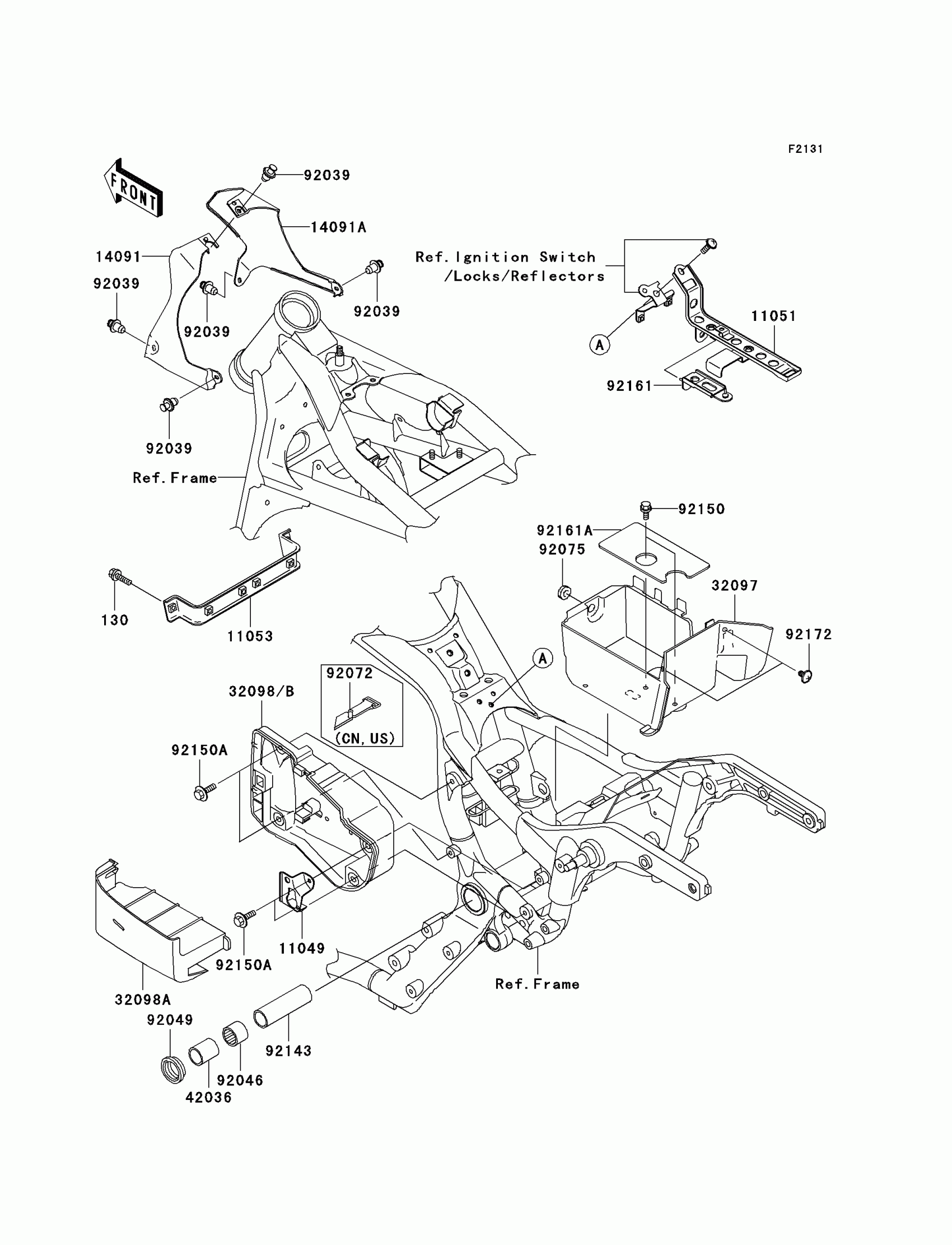

Kawasaki Vulcan 1500 Nomad Fi Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

11049

BRACKET,LOCK

11049-1600

$18.83

11051

BRACKET,BATTERY BAND

11051-1798

$32.34

11053

BRACKET,REGULATOR

11053-0434

$34.73

14091

COVER,HEAD PIPE,LH

14091-1285

Unavailable

14091A

COVER,HEAD PIPE,RH

14091-1286

$126.07

32097

CASE-BATTERY

32097-1175

$39.94

32098A

CASE-TOOL,COVER

32098-1126

$137.22

42036

SLEEVE,L=45

42036-1330

$29.70

92039

RIVET

92039-1227

$1.81

92046

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92075

DAMPER

92075-1067

$4.69

92143

COLLAR,20.2X27X90

92143-1878

$34.47

92150

BOLT,6X14

92150-1133

$4.31

92150A

BOLT,6X16

92150-1198

$4.13

92161

DAMPER,BATTERY BAND

92161-1096

$12.62

92161A

DAMPER,BATTERY

92161-1097

$6.57

92172

SCREW,6X10

92172-0005

$2.41

32098

CASE-TOOL

32098-1125

$141.76

32098B

CASE-TOOL

32098-1127

$141.76

92072

BAND,L=470

92072-1331

$24.84
