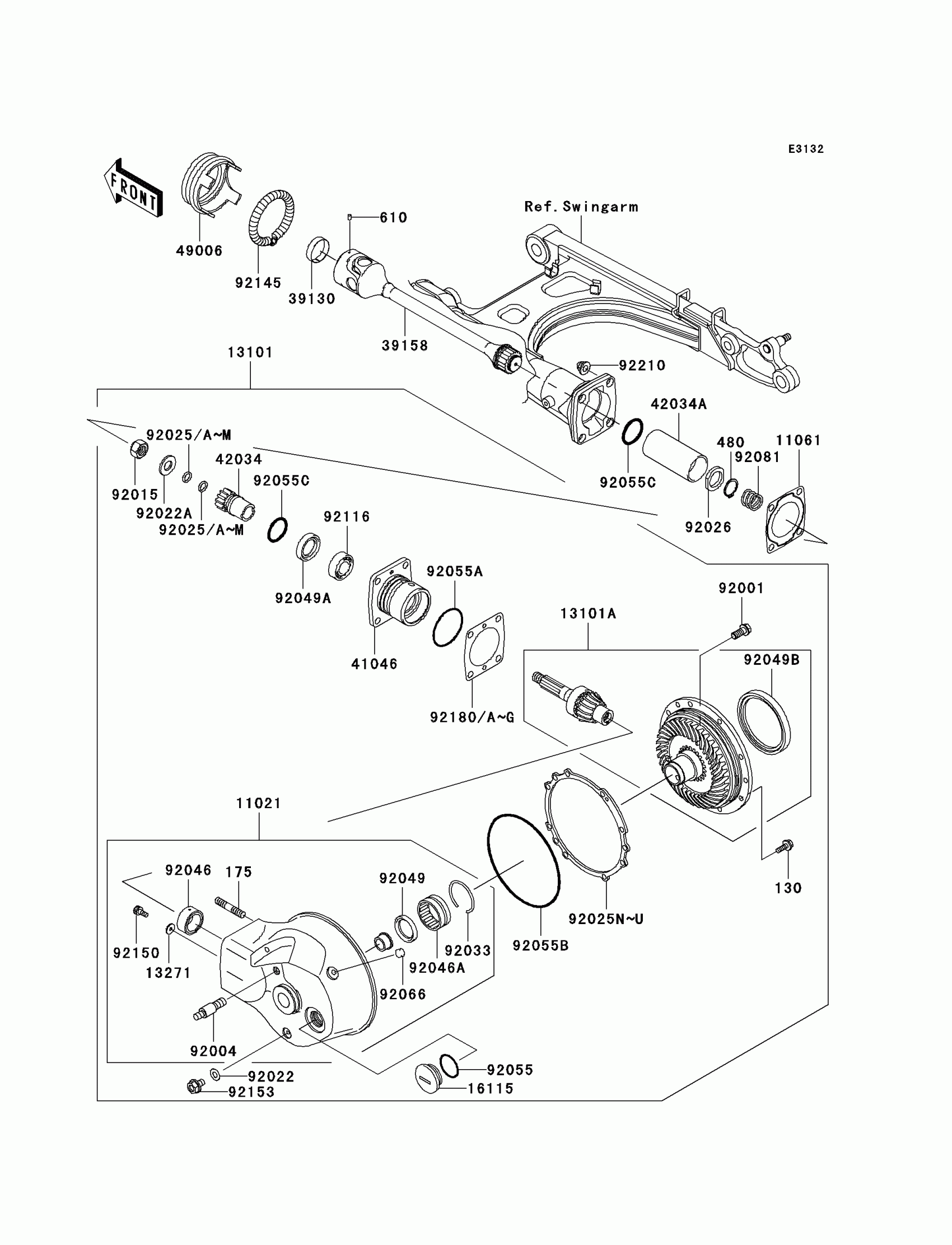

Kawasaki Vulcan 1500 Nomad Fi Drive Shaft/Final Gear Diagram

#

Description
Price

11021

CASE-ASSY,FINAL GEAR

11021-1116

Unavailable

13101

GEAR-ASSY,FINAL

13101-1242

Unavailable

13101A

GEAR-ASSY,BEVEL,RR

13101-5072

$1,639.93

16115

CAP-OIL FILLER

16115-1056

$29.42

39130

SPRING-LEAF

39130-1002

$4.65

39158

SHAFT-ASSY-DRIVE

39158-1062

$547.83

42034

COUPLING

42034-1085

$76.24

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

$96.63

49006

BOOT,DRIVE SHAFT

49006-1226

$29.42

92001

BOLT,10X23

92001-1778

$5.93

92002

SCREW-SET-SOCKET,8X18

92002-1836

$4.69

92004

STUD,RR SHOCKABSORBER

92004-1047

$15.74

92015

NUT,16MM

92015-1059

Unavailable

92015A

NUT,10MM

92015-1649

$5.52

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,16X32X3.2

92022-1105

$11.49

92025

SHIM,T=0.10

92025-1733

Unavailable

92025A

SHIM,T=0.15

92025-1734

Unavailable

92025B

SHIM,T=0.50

92025-1735

Unavailable

92025C

SHIM,T=0.60

92025-1736

Unavailable

92025D

SHIM,T=0.70

92025-1737

Unavailable

92025E

SHIM,T=0.80

92025-1738

Unavailable

92025F

SHIM,T=0.90

92025-1739

Unavailable

92025G

SHIM,T=1.00

92025-1740

Unavailable

92025H

SHIM,T=1.20

92025-1741

Unavailable

92025I

SHIM,T=0.15

92025-1783

Unavailable

92025J

SHIM,T=0.50

92025-1784

Unavailable

92025K

SHIM,T=0.60

92025-1785

Unavailable

92025L

SHIM,T=0.70

92025-1786

Unavailable

92025M

SHIM,T=0.80

92025-1787

Unavailable

92025N

SHIM,T=0.90

92025-1788

Unavailable

92025O

SHIM,T=1.00

92025-1789

Unavailable

92025P

SHIM,T=1.20

92025-1790

Unavailable

92026

SPACER,26.2X36X2

92026-1085

$8.21

92033

RING-SNAP,52MM

92033-1074

$4.65

92046

BEARING-NEEDLE,RNA4904ARD

92046-1168

$47.99

92046A

BEARING-NEEDLE,38NQ5020WD

92046-1169

$58.29

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92049A

SEAL-OIL

92049-1248

$21.20

92049B

SEAL-OIL,MHSA83X100X9XRT

92049-1280

$32.48

130

BOLT-FLANGED

130N0812

$5.59

130A

BOLT-FLANGED,8X25

130Y0825

$3.63

175

BOLT-STUD-FINE

175G1025

$6.50

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.03

555

PIN-SPRING

555A0428

$2.30

610

ROLLER,4X6

610A0406

$4.31

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,154X3

92055-1165

$11.37

92055B

RING-O,67.6X3.5

92055-1327

$6.52

92055C

RING-O,32.7X3.5

92055-1556

$7.73

92066

PLUG

92066-1110

$6.51

92066A

PLUG,6.2X3

92066-1272

$3.18

92081

SPRING

92081-1183

$7.55

92145

SPRING,BOOT

92145-1162

$11.64
