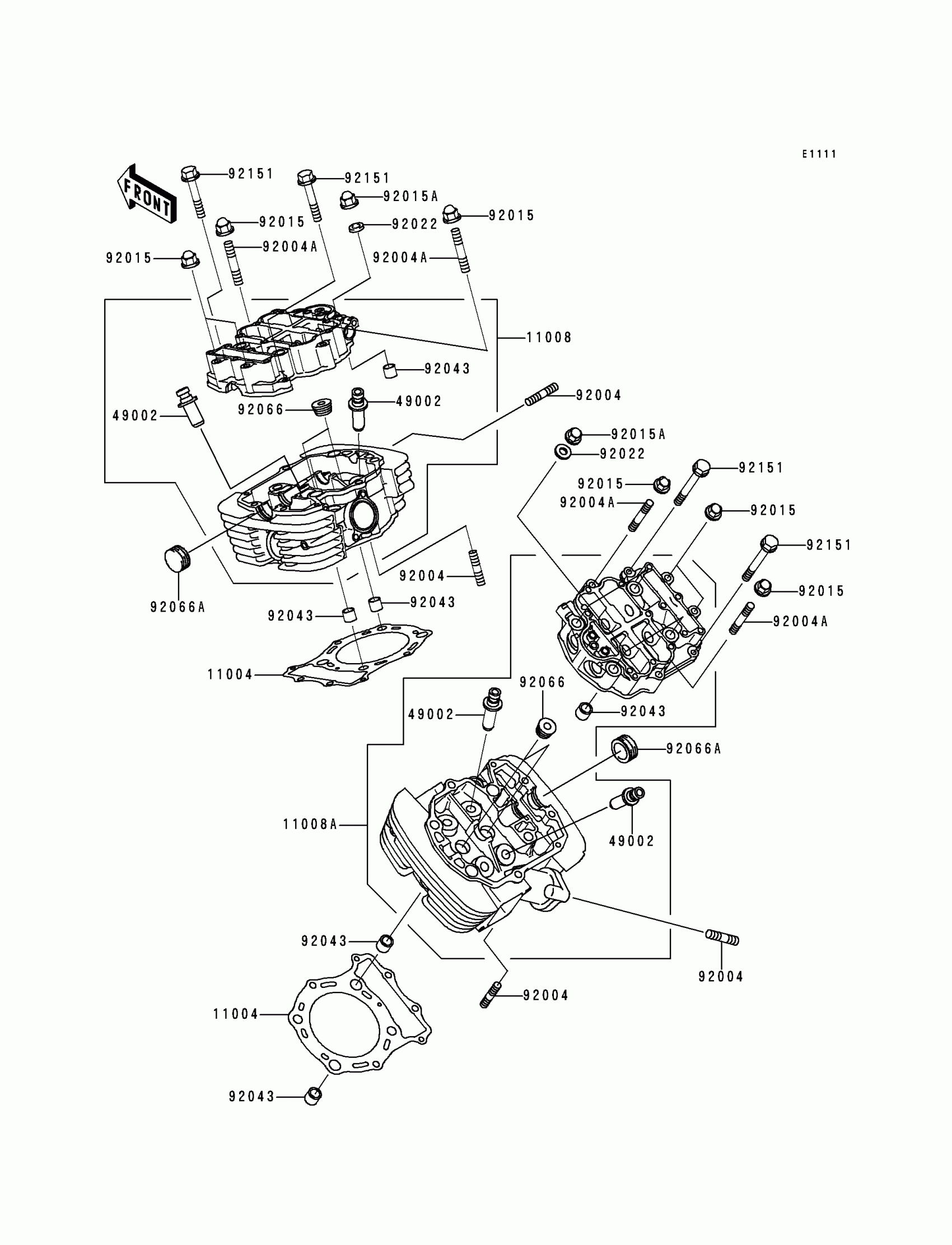

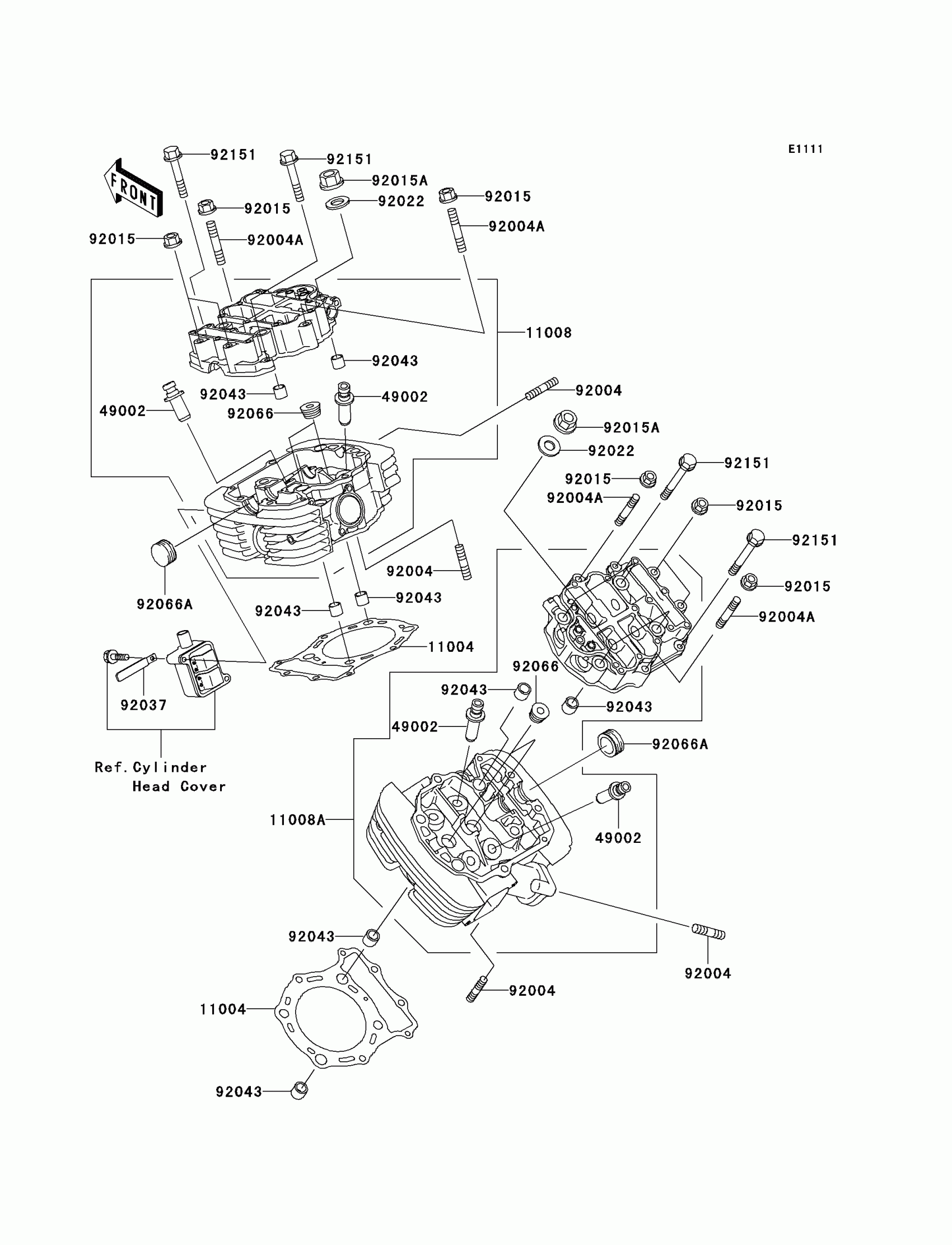

Kawasaki Vulcan 1500 Nomad Fi Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1334

$59.33

11008

HEAD-COMP-CYLINDER,FR

11008-1374

$1,452.03

11008A

HEAD-COMP-CYLINDER,RR

11008-1375

$1,452.03

49002

GUIDE-VALVE

49002-1088

Unavailable

92004

STUD,8X25

92004-1214

Unavailable

92004A

STUD,8X46.5

92004-1224

$10.97

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT,12MM

92015-1991

Unavailable

92022

WASHER,12.3X25X3.2

92022-1862

$6.15

92037

CLAMP,L=45

92037-1539

$5.00

92043

PIN,13X16X14

92043-1608

$5.00

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92066A

PLUG

92066-1442

$9.11

92151

BOLT,6X115

92151-1058

$4.78
