Description

Price

11050

BRACKET,DEFLECTOR,LH

11050-1750

$34.67

11050A

BRACKET,WINDSHIELD,LH

11050-1891

$58.27

11050B

BRACKET,WINDSHIELD,RH

11050-1892

$58.27

11051

BRACKET,DEFLECTOR,RH

11051-1061

$34.67

13271

PLATE,WINDSHIELD,CNT,OUTER

13271-1089

$57.75

13271A

PLATE,WINDSHIELD,CNT,INNER

13271-1090

$53.29

13271B

PLATE,WINDSHIELD,LH,OUTER

13271-1093

$55.55

13271C

PLATE,WINDSHIELD,LH,INNER

13271-1094

$21.93

13271D

PLATE,WINDSHIELD,RH,OUTER

13271-1095

$24.31

13271E

PLATE,WINDSHIELD,RH,INNER

13271-1096

$49.45

35011

STAY,DEFLECTOR,LH

35011-1916

$71.29

35011A

STAY,DEFLECTOR,RH

35011-1917

$71.29

35011B

STAY,WINDSHIELD,LH

35011-1944

$47.92

35011C

STAY,WINDSHIELD,RH

35011-1945

$47.81

39154

WINDSHIELD,DEFLECTOR

39154-1139

$89.00

39154A

WINDSHIELD,MAIN

39154-1141

$799.57

39154B

WINDSHIELD,SUB

39154-1142

$154.96

92151

BOLT,SOCKET,6X20

92151-1750

$2.46

92151A

BOLT,SOCKET,6X16

92151-1751

$2.46

92151B

BOLT,SOCKET,8X16

92151-1752

$2.67

92151C

BOLT,SOCKET,8X25

92151-1753

$7.62

92210

NUT,CAP,6MM

92210-1129

$2.46

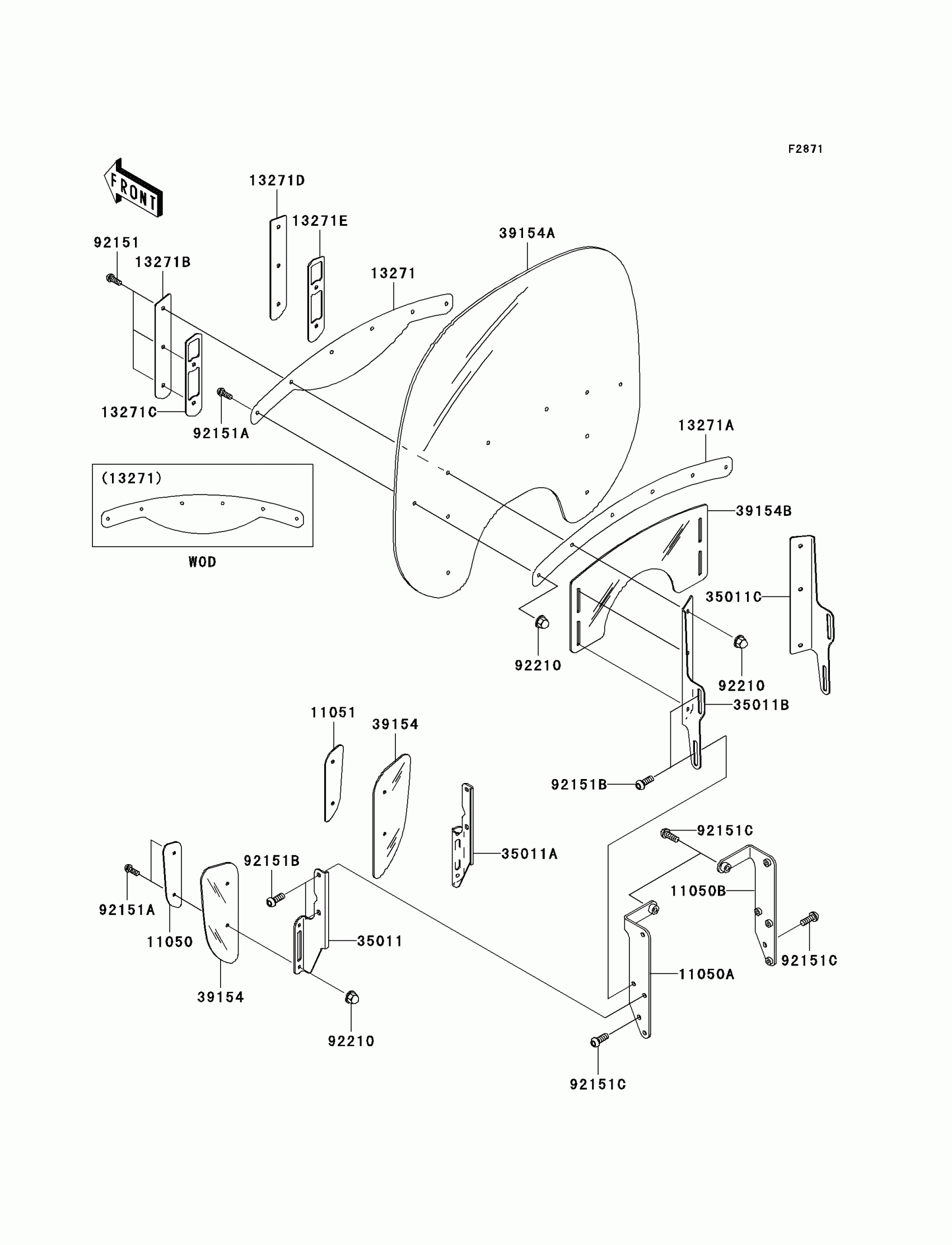

Kawasaki Vulcan 1500 Nomad Fi Cowling Diagram

BRACKET,DEFLECTOR,LH

BRACKET,WINDSHIELD,LH

BRACKET,WINDSHIELD,RH

BRACKET,DEFLECTOR,RH

PLATE,WINDSHIELD,CNT,OUTER

PLATE,WINDSHIELD,CNT,INNER

PLATE,WINDSHIELD,LH,OUTER

PLATE,WINDSHIELD,LH,INNER

PLATE,WINDSHIELD,RH,OUTER

PLATE,WINDSHIELD,RH,INNER

STAY,DEFLECTOR,LH

STAY,DEFLECTOR,RH

STAY,WINDSHIELD,LH

STAY,WINDSHIELD,RH

WINDSHIELD,DEFLECTOR

WINDSHIELD,MAIN

WINDSHIELD,SUB

BOLT,SOCKET,6X20

BOLT,SOCKET,6X16

BOLT,SOCKET,8X16

BOLT,SOCKET,8X25

NUT,CAP,6MM
