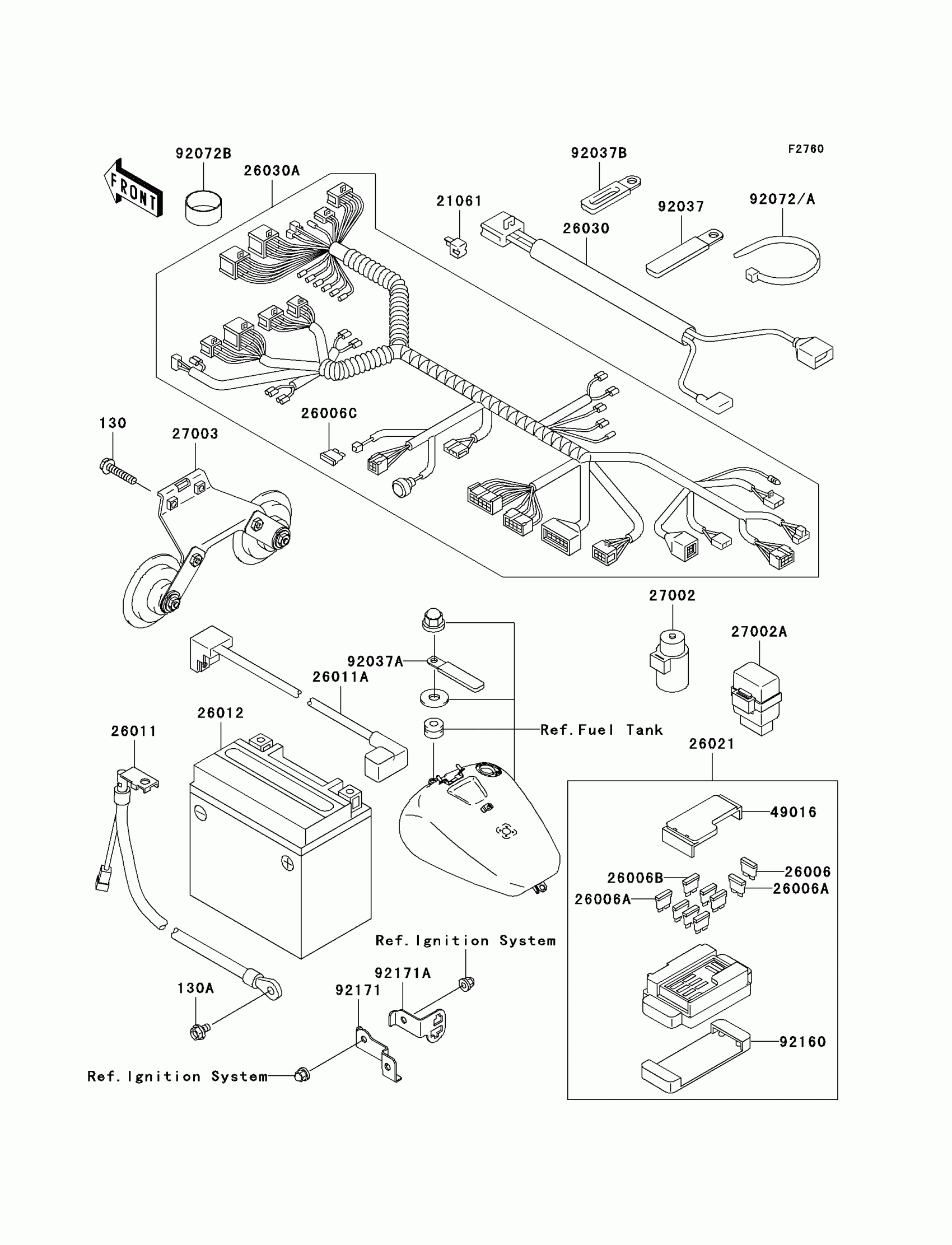

Kawasaki Vulcan 1500 Nomad Fi Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006B

FUSE,BLADE,15A,BLUE

26006-1061

$5.46

26006C

FUSE,15A-B

26006-1069

$5.46

26011

WIRE-LEAD,BATTERY(-)

26011-1750

$57.88

26011A

WIRE-LEAD,BATTERY(+)

26011-1764

$47.87

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

Unavailable

26021

JUNCTION BOX

26021-0002

Unavailable

26030

HARNESS,SUB

26030-1450

$20.98

26030A

HARNESS,MAIN

26030-1852

$593.45

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

$115.95

27003

HORN

27003-1406

$179.75

49016

COVER-SEAL,FUSE

49016-0005

$9.82

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-113

$6.15

92037B

CLAMP

92037-1780

$6.57

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92072B

BAND

92072-1393

$6.47

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44

92171

CLAMP

92171-1262

$7.73

92171A

CLAMP,HARNESS

92171-1263

$7.73
