Air Cleaner

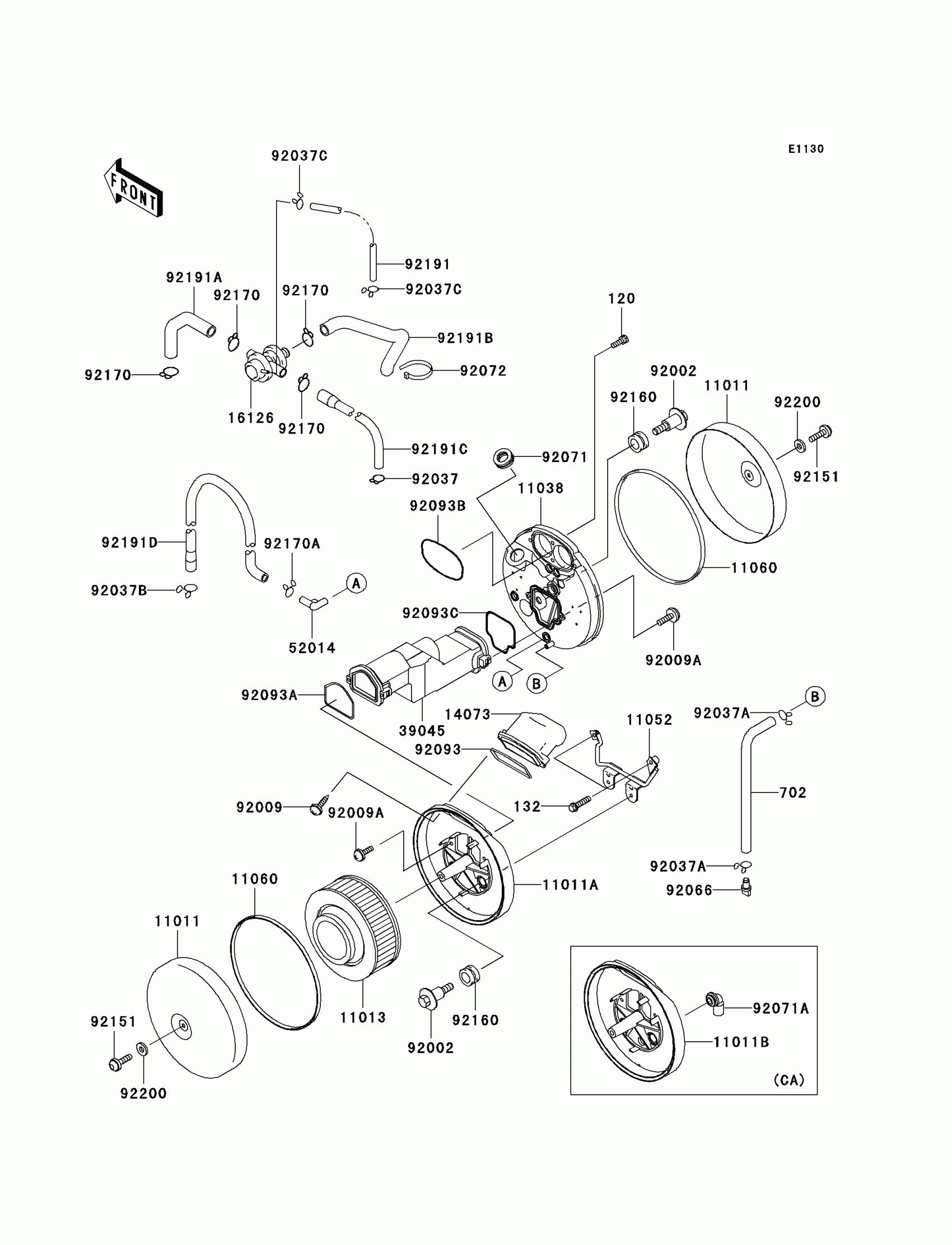

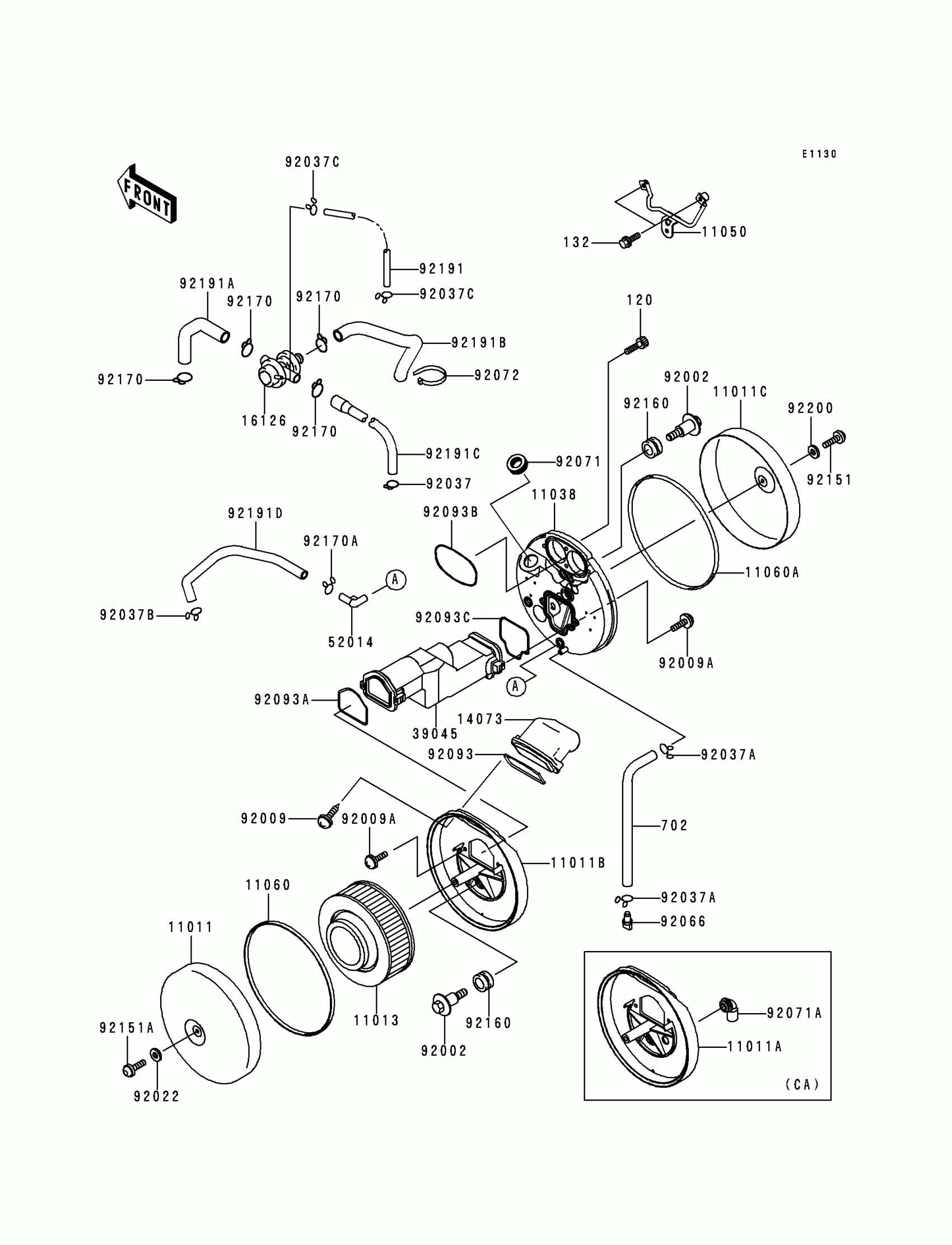

Kawasaki Vulcan 1500 Nomad Fi Air Cleaner Diagram
#
120
BOLT-SOCKET,6X16
120S0616
$1.23
11011
CASE-AIR FILTER,OUTSIDE
11011-1576
Unavailable
11013
ELEMENT-AIR FILTER
11013-1248
$46.07
11038
CASE-ASSY-AIR FILTER,RH
11038-0002
Unavailable
11052
BRACKET
11052-1166
$44.65
11060
GASKET,AIR FILTER CASE
11060-1968
$18.88
14073
DUCT,AIR FILTER
14073-1739
$34.11
16126
VALVE,AIR SWITCH
16126-1384
$199.58
39045
DUCT-ASSY,CENTER
39045-0003
$133.60
52014
ELBOW
52014-1083
$7.84
92002
BOLT,FLANGED,6X14X13.5
92002-1595
$13.07
92009
SCREW,TAPPING,5X16
92009-1264
$3.13
92009A
SCREW,PAN-WP-CROS,5X20
92009-1905
$1.83
92037
CLAMP
92037-1468
$7.75
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP
92037-1593
$6.21
92037C
CLAMP
92037-1712
$5.00
92066
PLUG,DRAIN
92066-1211
$8.51
92071
GROMMET,AIR FILTER
92071-1028
$7.27
92072
BAND,L=202
92072-1195
$1.56
92093
SEAL,AIR FILTER CASE
92093-1408
$11.38
92093A
SEAL,DUCT,LH
92093-1459
$6.89
92093B
SEAL
92093-1485
$6.89
92093C
SEAL,DUCT,RH
92093-1491
$6.89
92151
BOLT,8X14
92151-1438
$2.46
92160
DAMPER
92160-1594
$4.69
92170
CLAMP,TUBE
92170-1445
$4.92
92170A
CLAMP
92170-1695
$2.78
92191
TUBE,THROTTLE-VALVE
92191-1312
$10.51
92191A
TUBE,HEAD,FR-VALVE
92191-1359
$11.36
92191B
TUBE,VALVE-CLEANER
92191-1360
$23.49
92191C
TUBE,HEAD,RR-VALVE
92191-1369
$24.91
92191D
TUBE,BREATHER
92191-1406
$26.87
92200
WASHER,8.5X20X1.6
92200-1463
$2.79
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
702
TUBE-RUBBER,7X10X230
702A07230
$13.38
11011A
CASE-AIR FILTER,LH
11011-1597
Unavailable
11011B
CASE-AIR FILTER,LH
11011-1601
$90.54
92071A
GROMMET,AIR FILTER
92071-1114
$24.61
