Crankshaft

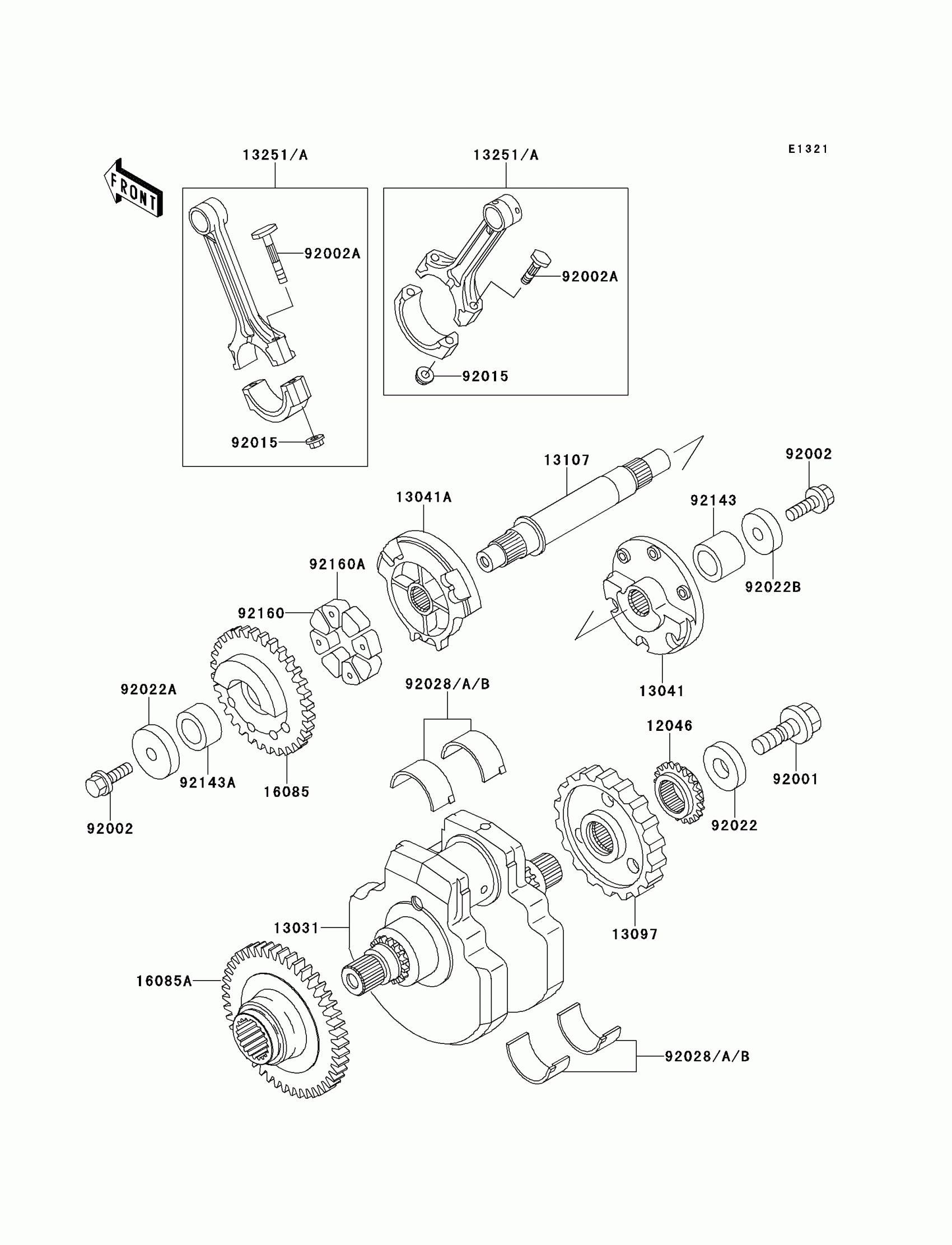

Kawasaki Vulcan 1500 Nomad Crankshaft Diagram
#
Description
Price
12046
SPROCKET,WATER PUMP
12046-1103
$76.42
13031
CRANKSHAFT-COMP
13031-1413
$1,440.72
13041
BALANCER,RH
13041-1089
$156.42
13041A
BALANCER,LH
13041-1093
$193.41
13097
GEAR-PRIMARY SPUR,56T
13097-1369
$142.48
13107
SHAFT,BALANCER
13107-1352
Unavailable
13251
ROD-ASSY-CONNECTING,G
13251-1080-GG
Unavailable
13251A
ROD-ASSY-CONNECTING,J
13251-1080-JJ
Unavailable
16085
GEAR,BALANCER
16085-1286
$354.01
16085A
GEAR,BALANCER,46T
16085-1307
$361.38
92001
BOLT,FLANGED,12X40
92001-1146
$9.91
92002
BOLT,FLANGED,10X40
92002-1296
$10.65
92002A
BOLT,CONNECTING ROD
92002-1896
$11.07
92015
NUT,CONNECTING ROD
92015-1643
$9.05
92022
WASHER,12X40X6
92022-1904
$14.23
92022A
WASHER,10X40X6
92022-1905
$14.23
92022B
WASHER,10X33X6
92022-1906
$14.23
92028
BUSHING,CONNECTING ROD,BLUE
92028-1474
Unavailable
92028A
BUSHING,CONNECTING ROD,BLACK
92028-1475
Unavailable
92028B
BUSHING,CONNECTING ROD,BROWN
92028-1476
Unavailable
92143
COLLAR,20X30X24
92143-1093
$37.00
92143A
COLLAR,20X31X16
92143-1821
$38.20
92160
DAMPER
92160-1725
$9.21
92160A
DAMPER
92160-1726
$9.21
