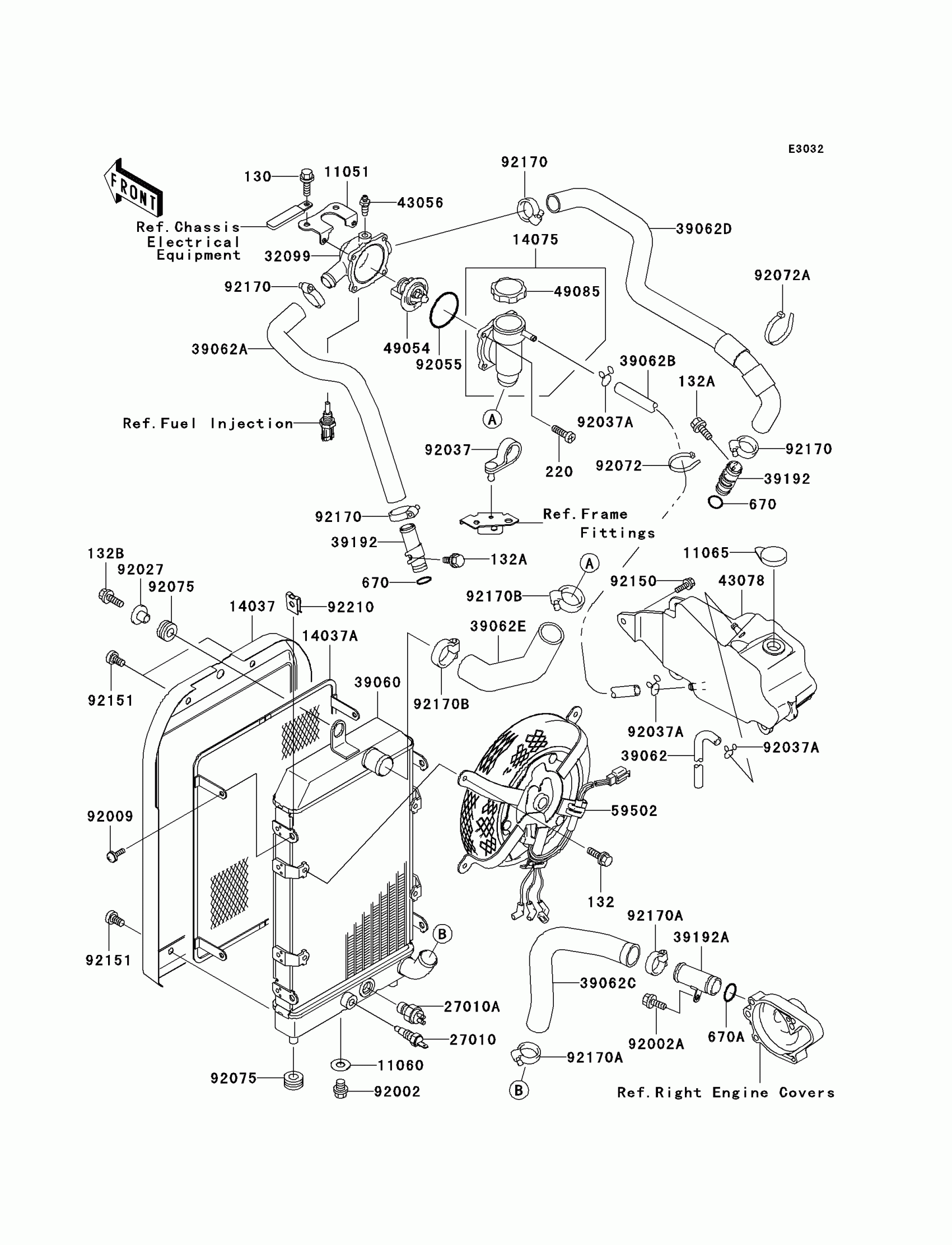

Kawasaki Vulcan 1500 Mean Streak Radiator Diagram

#

Description
Price

130

BOLT-FLANGED,6X18

130J0618

Unavailable

11051

BRACKET,THERMOSTAT CASE

11051-1535

$10.19

11060

GASKET,DRAIN PLUG

11060-1767

$2.18

11065

CAP,COOLANT

11065-1093

$3.04

14037

SCREEN

14037-1301

$113.25

14037A

SCREEN

14037-1304

$73.48

14075

CAP-ASSY

14075-1068

$174.32

27010

SWITCH,WARNING

27010-1305

$85.57

27010A

SWITCH,FAN

27010-1364

$143.52

32099

CASE,THERMOSTAT

32099-1201

$70.12

39060

RADIATOR

39060-1178

$737.52

39062

HOSE-COOLING

39062-1258

$38.54

39062A

HOSE-COOLING,FR HEAD-THERMO

39062-1785

Unavailable

39062B

HOSE-COOLING,THERMO-RESER

39062-1796

$20.25

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-1850

$26.96

39062D

HOSE-COOLING,HEAD,RR-THERMO

39062-1864

$46.79

39062E

HOSE-COOLING,THERMO-RADIATOR

39062-1892

$28.19

39192

PIPE-WATER

39192-1094

$22.69

39192A

PIPE-WATER

39192-1096

$28.75

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1180

$64.47

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$47.60

59502

FAN-ASSY

59502-1141

$947.01

92002

BOLT,FLANGED,10X10

92002-1311

$5.59

92002A

BOLT,6X12

92002-1569

Unavailable

92009

SCREW,6X10

92009-1402

$1.73

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92072

BAND,L=250

92072-1237

$1.55

92072A

BAND

92072-1398

$11.71

92075

DAMPER,10X24X12

92075-1690

$3.81

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$3.66

92151

BOLT,6X10

92151-1809

$2.32

92170

CLAMP,COOLING HOSE

92170-1032

$24.03

92170A

CLAMP,COOLING HOSE

92170-1034

$16.98

92170B

CLAMP,COOLING HOSE

92170-1284

$6.25

92210

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

670

O RING,14MM

670B2014

$0.93

670A

O RING,18MM

670B2018

$1.08
